Stihl USG User Manual

18
English
USG
If the depth gauges have to be lowered:
: Select the correct grinding wheel
– see instruction sheet
0457 716 0000
: Mount the grinding wheel – see
"Mounting the Grinding Wheel".
: Test run the grinding wheel – see
"Test Run".
: Check profile of grinding wheel and
dress if necessary – see "Dressing
the Grinding Wheel".

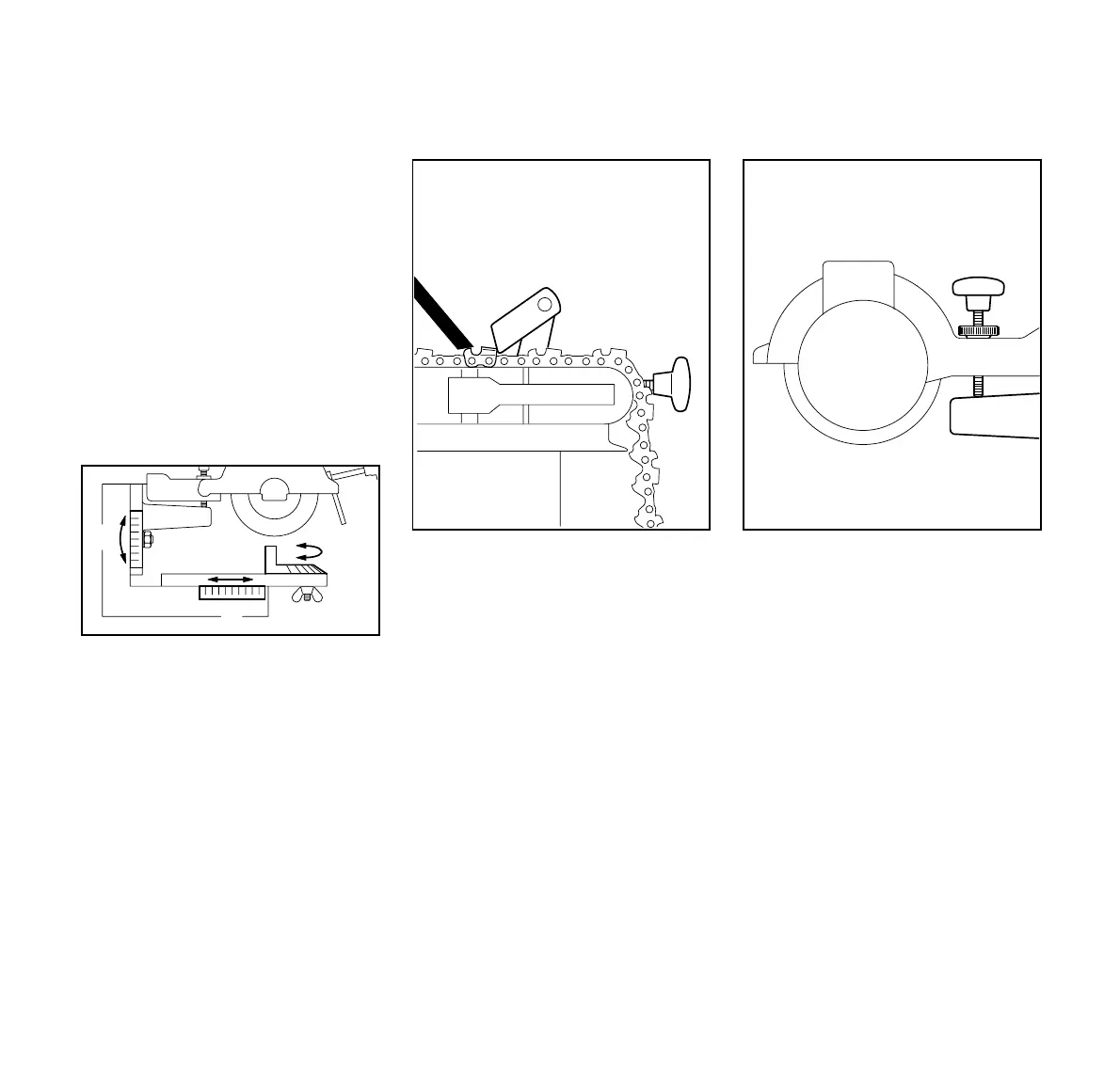

Setting the Scales
: Set scale A to 40°
: Set scales B and C to 0°
Adjusting the Lateral Stop
: Swing the motor arm down.
: Slide the chain along the guide rail
until the profile (1) of the grinding
wheel is centered above the depth
gauge.
: Clamp the chain in position.
: Turn the adjusting screw (2) until the
back of the cutter butts against the
stop.
Adjusting Grinding Wheel
: Swing the motor arm down until the
grinding wheel touches the depth
gauge.
: Screw home the travel limiting
screw (1) until it butts against the
stop lug (2).
: Put on safety glasses.
: Switch on the motor.
: Carefully bring the motor arm down
as far as the stop.
-
+
-
-
A
B
C
523BA077 KN
+
+
1
523BA102 KN
2
1
3
523BA101 KN
2

Stihl USG Specifications

General

Brand	Stihl
Model	USG
Category	Grinder
Language	English
