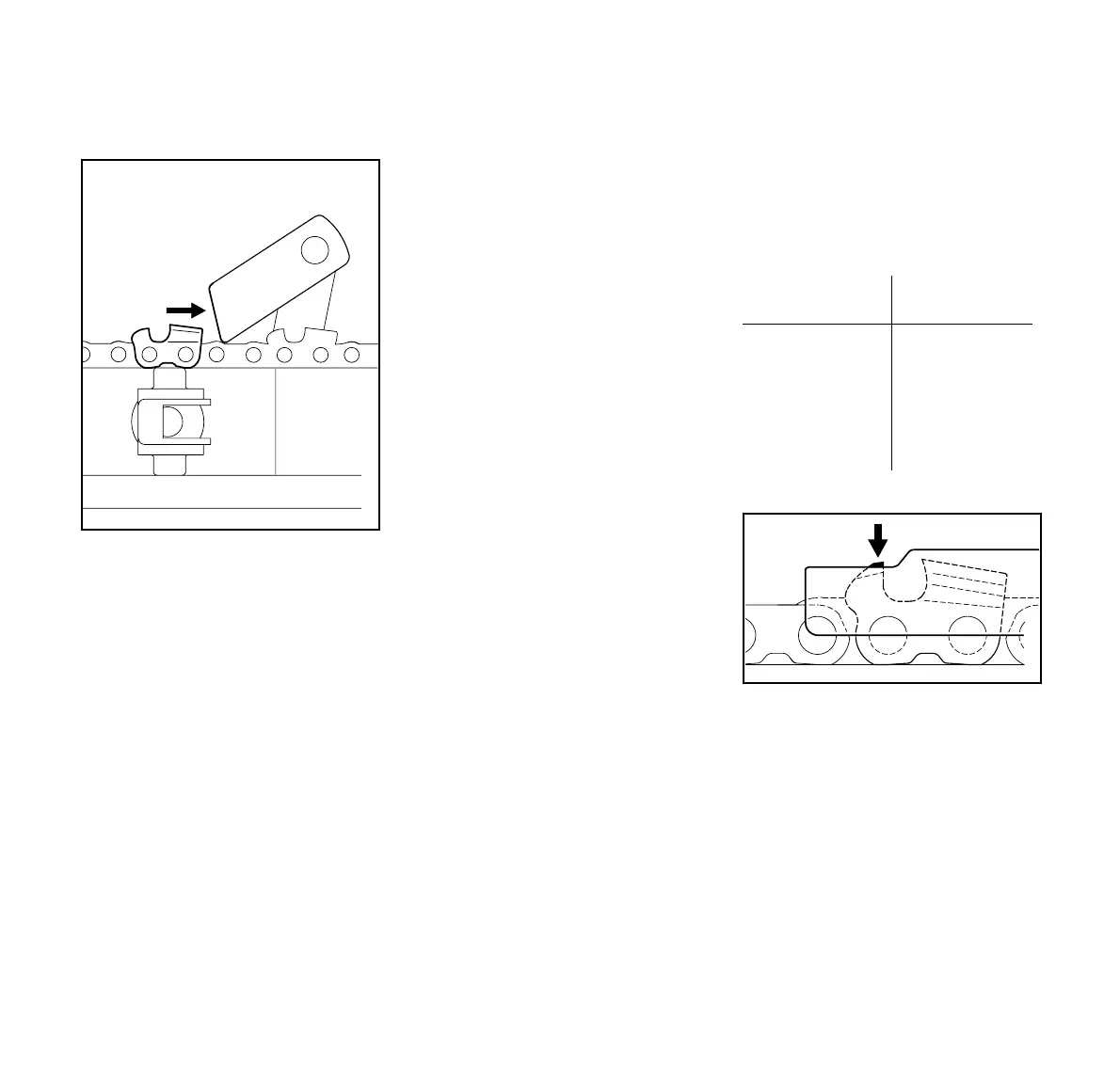

: Pull the chain to the right until the
back of the cutter butts against the
stop.
: Clamp the chain in position.
: Sharpen the side plate.
: Repeat procedure until all side
plates on one side have been
sharpened.
Sharpening the Second Row of
Cutters
: Set scale B to the same sharpening
angle on the other side of the chain.
: Set scale C to the specified angle on
the other side of the chain.
: Move the stop with the pivot pin –
the stop must locate properly
against the back of the cutter.
: After sharpening first cutter in the
second row, check its length against
that of the other row and adjust the
stop if necessary.
: Now sharpen the second row of
cutters.
Checking Depth Gauge Setting
: Select the filing gauge (special
accessory) that matches the chain
pitch.
: Place the filing gauge on the saw
chain. If the depth gauge projects
beyond the filing gauge it has to be
lowered.
523BA072 KN
Chain pitch Filing gauge
inch mm Part No.
1
/
4
6.35 1110 893 4000
3
/
8
PMN 9.32 0000 893 4000
3
/
8
P 9.32 1110 893 4000
0.325 8.25 1110 893 4000
3
/
8
9.32 1110 893 4000
0.404 10.26 1106 893 4000
Lowering Depth Gauges
564BA017 KN
