Stihl USG - Mounting the Attachment for Hedge Trimmer Blades; Setting the Scales; Principle of Clamp

20
English
USG

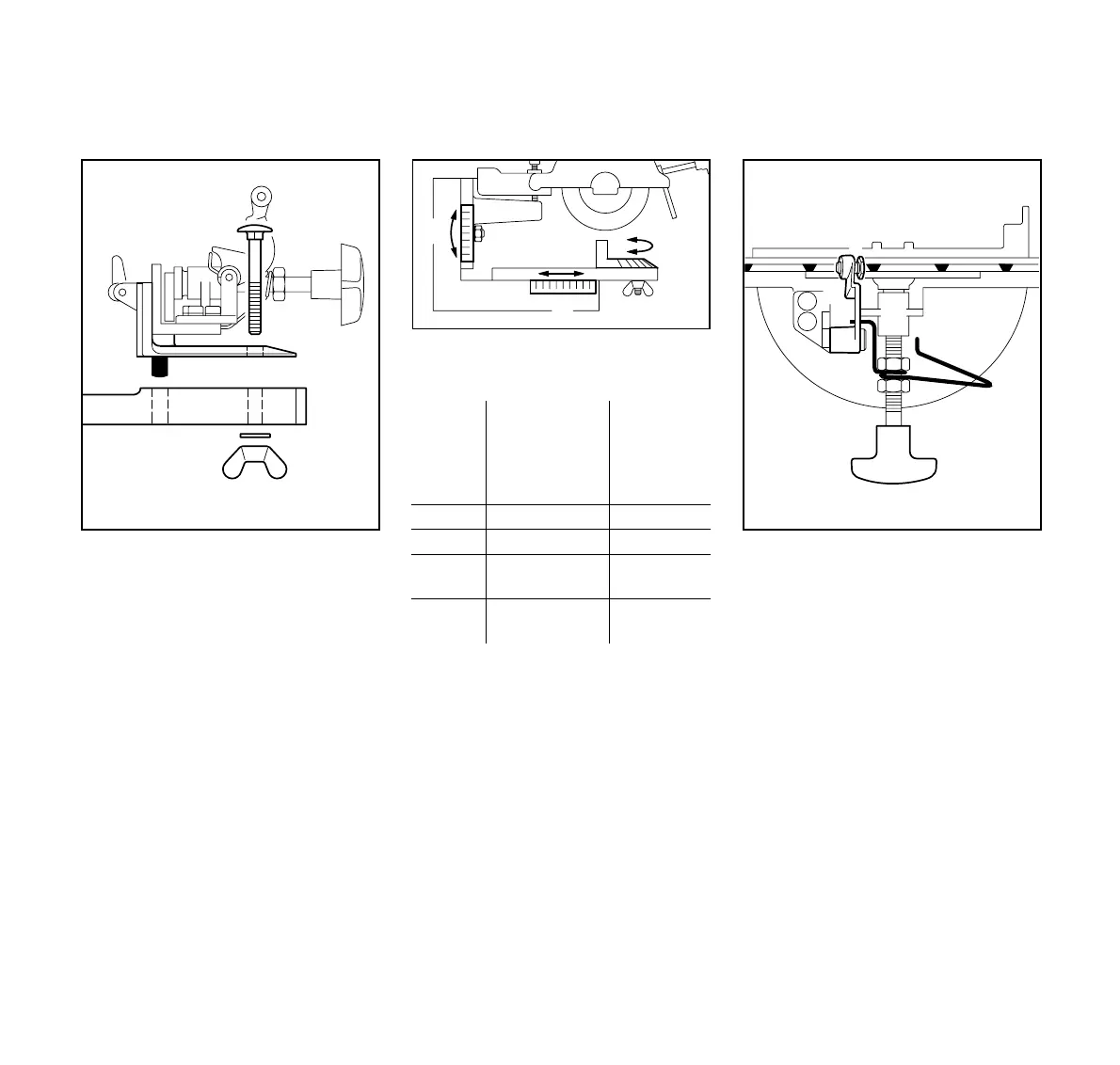

Mounting the Attachment for
Hedge Trimmer Blades
: Engage pin (1) in hole (2) in base.
: Insert bolt (3) in slot (4).
: Fit the washer (5) and wingnut (6)
and tighten down moderately.
Setting the Scales
Principle of Clamp
: Turn the star knob (1) to open and
close the clamp.
The stop (2) is automatically
engaged and disengaged by the
spring (3).
4
523BA054 KN
1
2
3
5
6
HL 45, HL 75,
HLR 85, HS 61
HS 75, 80, 85
HL 100,
HS 246 HS 45
Scale A - 10° - 6°
Scale B 00
Scale C
left
+ 45° + 55°
Scale C
right
- 45° - 55°
-
+
-
-
A
B
C
523BA077 KN
+
+
523BA104 KN
2
3
1
