Fitting Cutting Blade

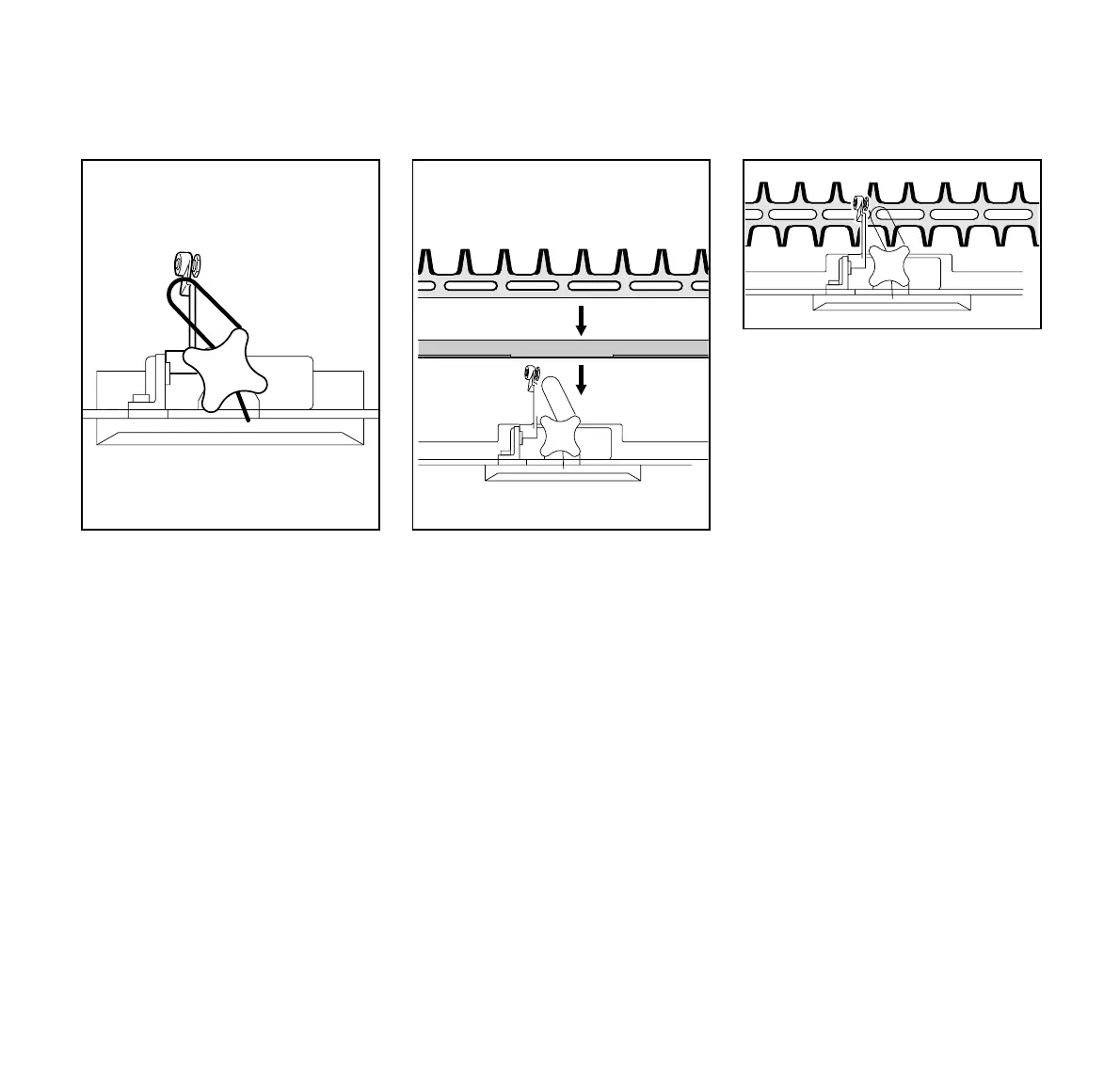

: Turn the star knob (1) until the

spring (2) is in the positon shown.

: The clamp is open in this position –

the cutting blade may be fitted.

Fitting one-sided cutting blade

: Fit the angle iron rail (5).

: Fit the cutting blade (6) in position

so that the cutting edges point to the

rear.

Fitting double-sided cutting blade

: Fit the cutting blade (4) in position

so that the cutting edges point to the

rear.

523BA106 KN

523BA108 KN

523BA107 KN
