Stihl USG - Adjusting the Stop; Adjusting the lateral stop

22
English
USG
Adjusting the Stop
Adjusting the lateral stop

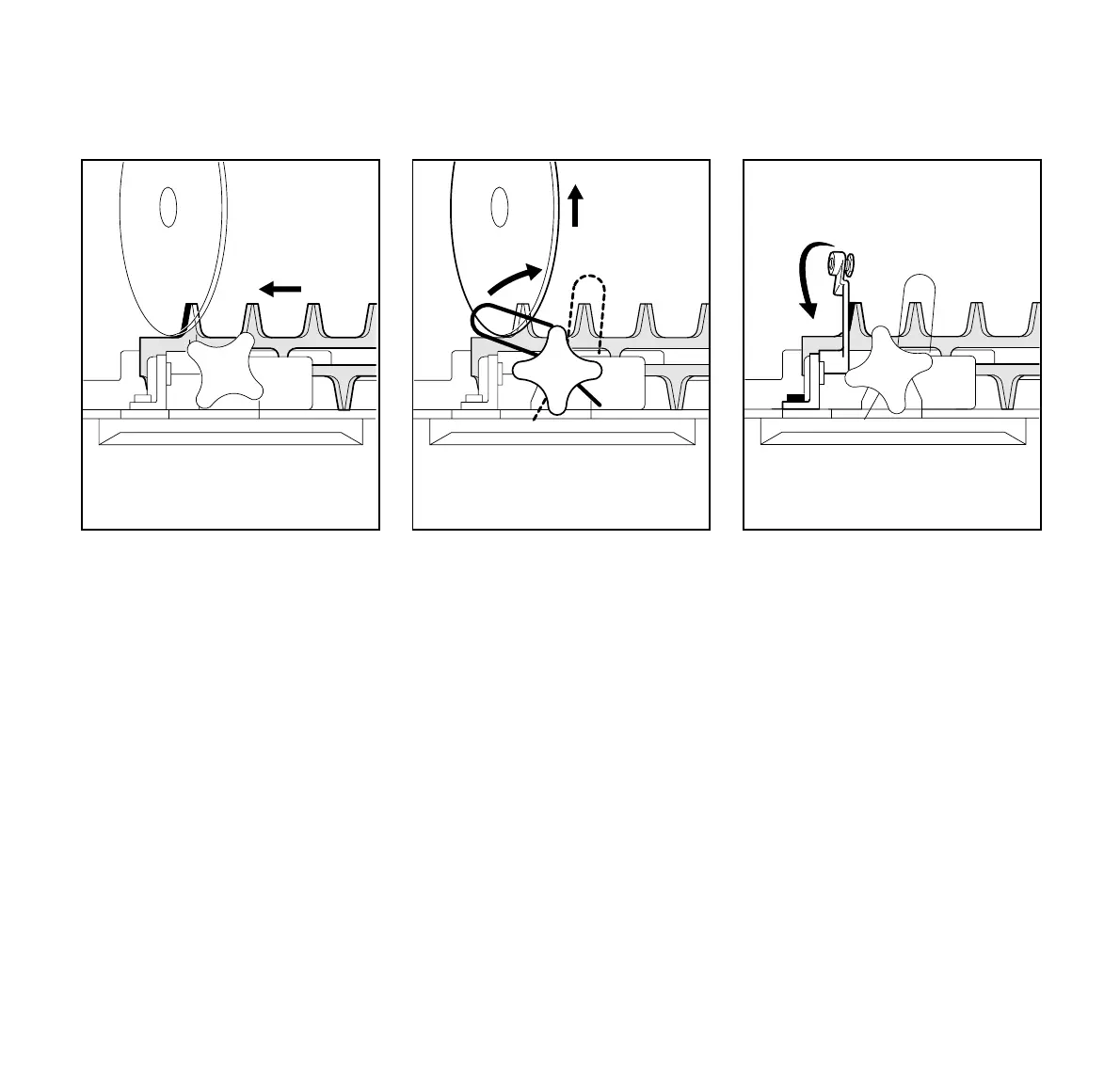

: Swing the motor arm down until the
grinding wheel is above the gullet of
the tooth – hold it in this position.
: Pull the cutting blade (1) to the left
until the first tooth (2) in the row
butts against the grinding wheel.
: Swing the motor arm up again.
: Turn the star knob (1) clockwise
until the spring is in the position
shown – the clamp is closed.
: Swing the stop (4) into position by
hand.
: Turn the adjusting screw (5) until the
stop butts against the tooth (6).
: If range of adjustment is insufficient,
loosen the screws (7) on the stop.
: Move the stop (4) until it butts
against the tooth and then tighten
down the screws (7) firmly.
2
523BA110 KN
1
523BA111 KN
3
523BA112 KN
5
6
4
7
