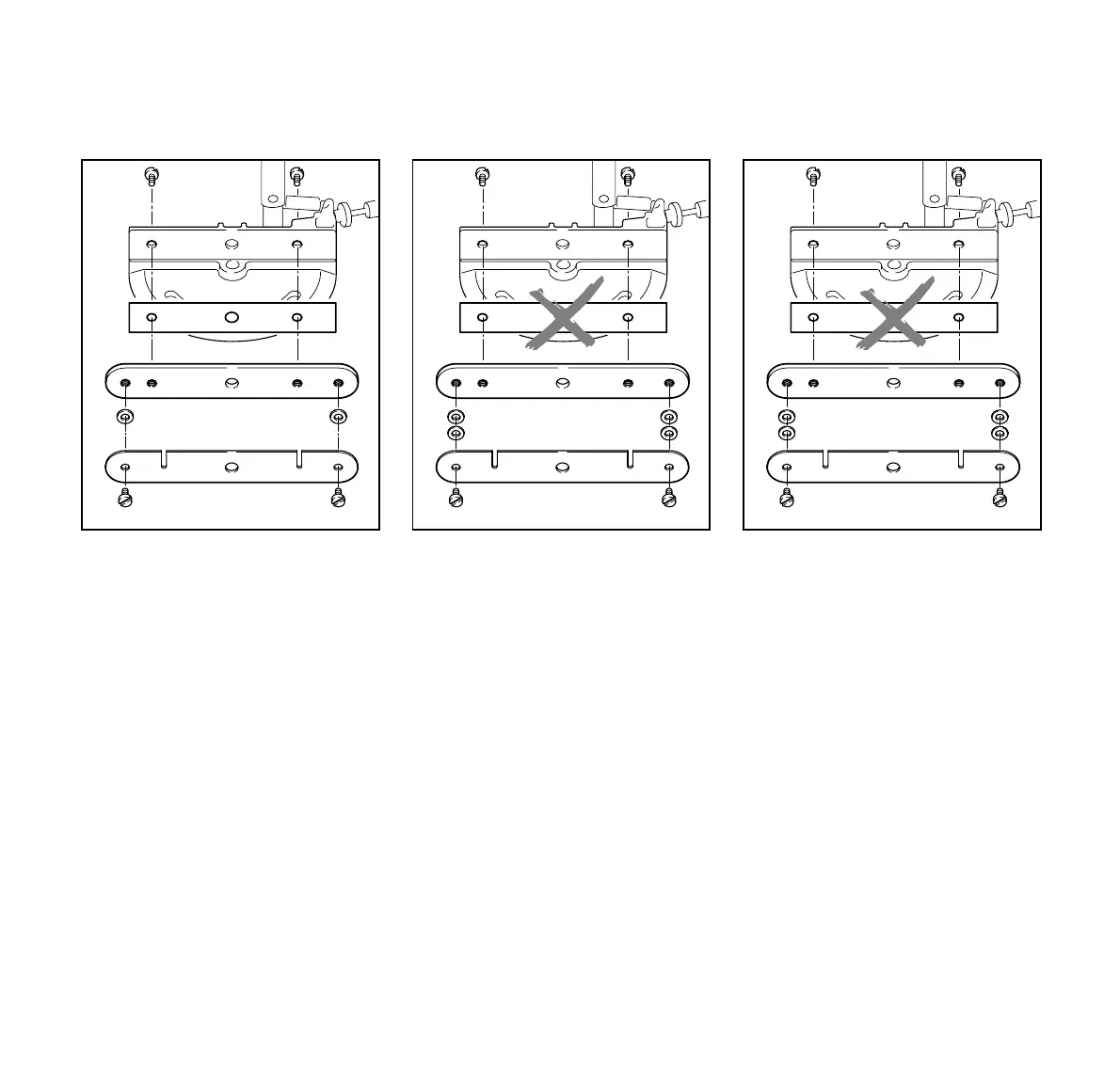

Chain with 1.1/1.3 mm drive link
gauge
: Fit the shim (5).
: Fit the screws (3).
: Install a 1.6 mm washer (6)
between the guide rail and clamping
rail (at each end).
: Fit the screws (4).
Chain with 1.5/1.6 mm drive link
gauge
: Remove the shim (5) (if fitted).
: Fit the screws (3).
: Install two 0.9 mm washers (6)
between the guide rail and clamping
rail (at each end).
: Fit the screws (4).
Chain with 2.0 mm drive link
gauge
: Remove the shim (5) (if fitted).
: Fit the screws (3).
: Install one 0.9 mm and one
1.6 mm washer (6) between the
guide rail and clamping rail (at each
end).
: Fit the screws (4).
523BA096 KN
3
4
5
6
3
6
4
523BA097 KN
3
4
5
6
3
6
4
523BA097 KN
3
4
5
6
3
6
4
