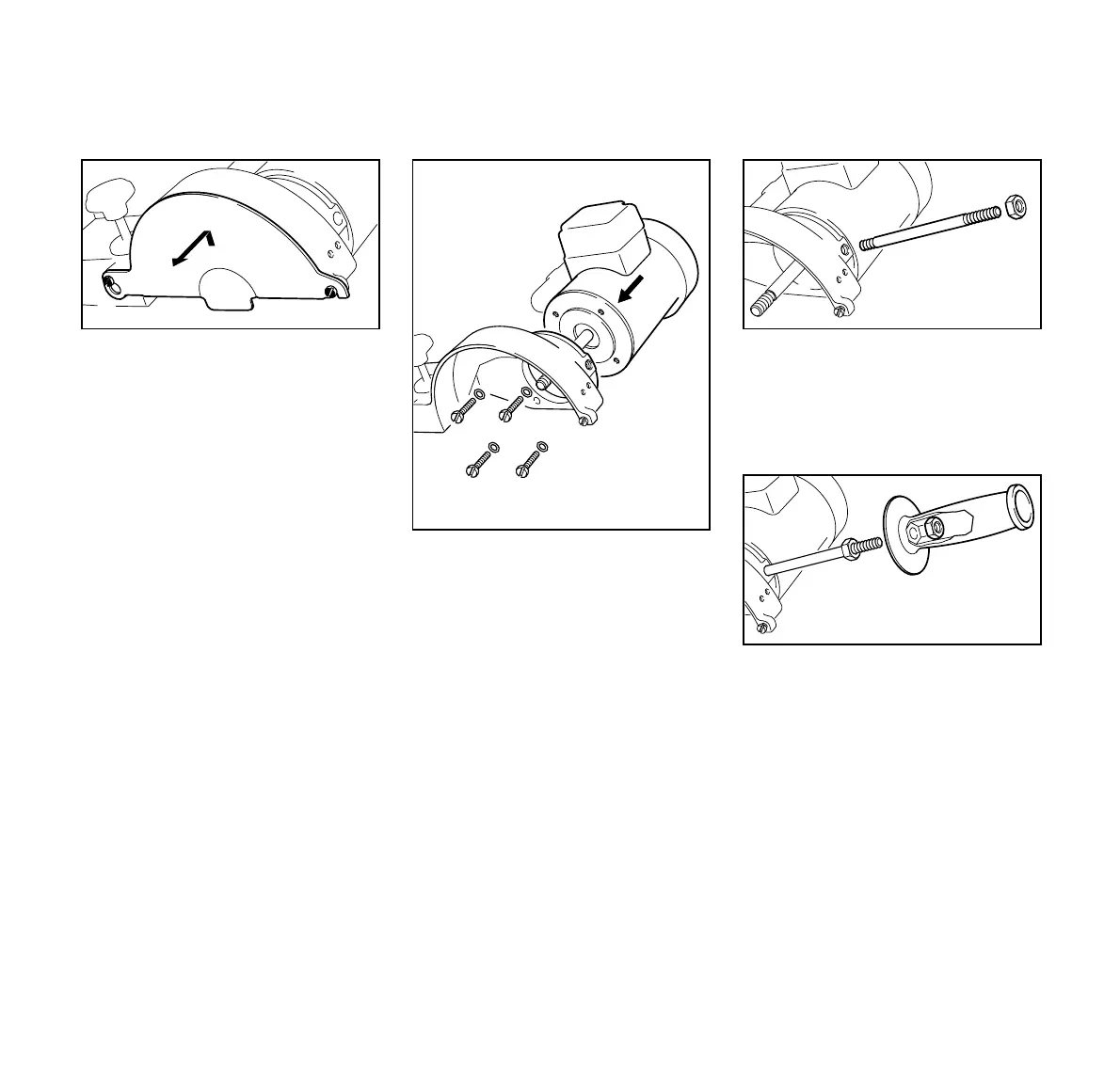

: Loosen the M5x10 screws (1)
and then lift and remove the guard
plate (2).
: Fit motor (3) on motor arm (4). The
switchbox (5) must face up.
: Insert the four M5x22 pan head
screws (6) and tighten them down
firmly in a diagonal pattern.
: Screw the short thread of M10x145
stud (7) into the housing bore (8).
: Screw the M10 nut (9) onto the stud
as far as stop.
: Place the M10 nut (10) in the
hexagon recess in the handle (11)
and screw the handle firmly into
position.
523BA046 KN
1
2
1
523BA047 KN
4
3
5
6
523BA048 KN
78
9
10
523BA049 KN
11
