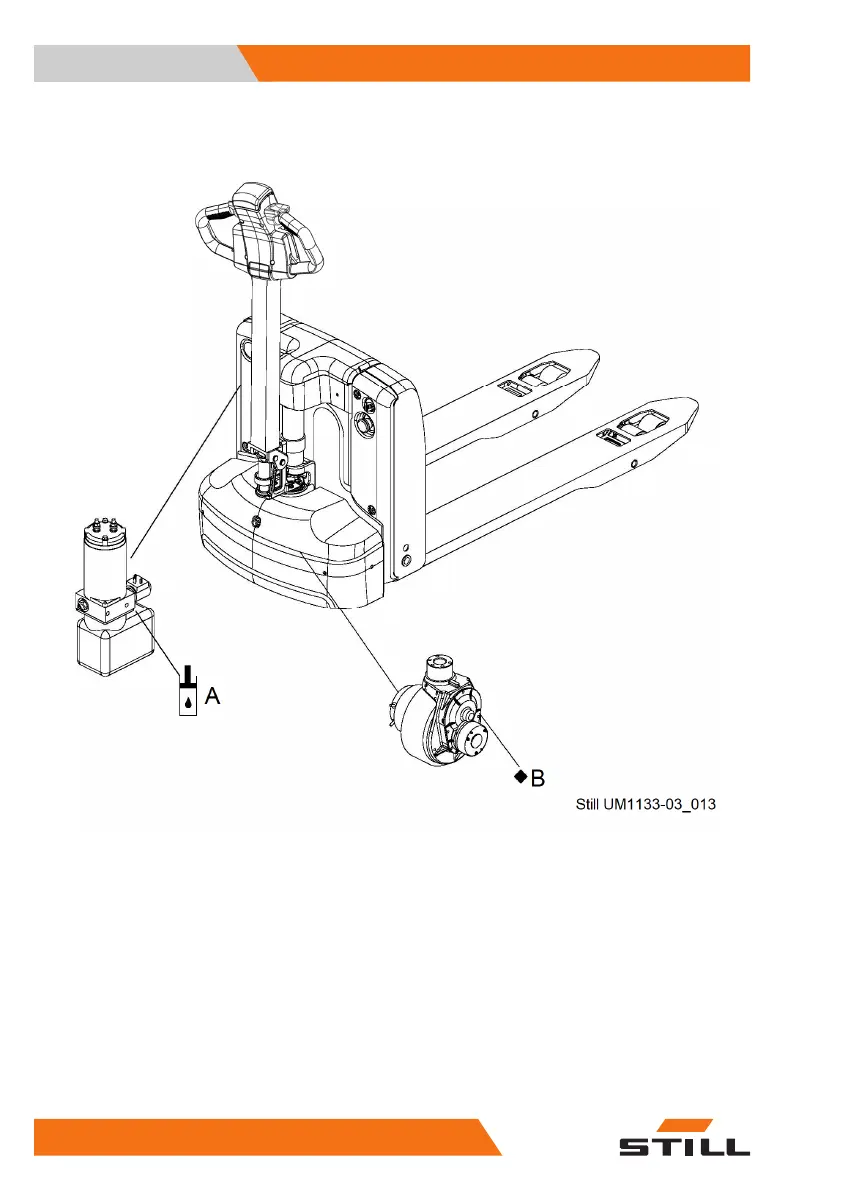

Lubrication maintenance schematic view
Hydraulic oil filler portA Gear oil filler portB
Fluids
Strictly follow the manufacturer's regulations
when using and handling fluids.
Non-standard operation may put the opera-
tor’s health and life at risk and damage the en-
vironment. Fluids should only be stored in the
specified container. Fluids may be flammable,
Maintenance
6
Lubrication maintenance schematic view
70 5001 801 1555 EN - 12/2020
