Remove cover

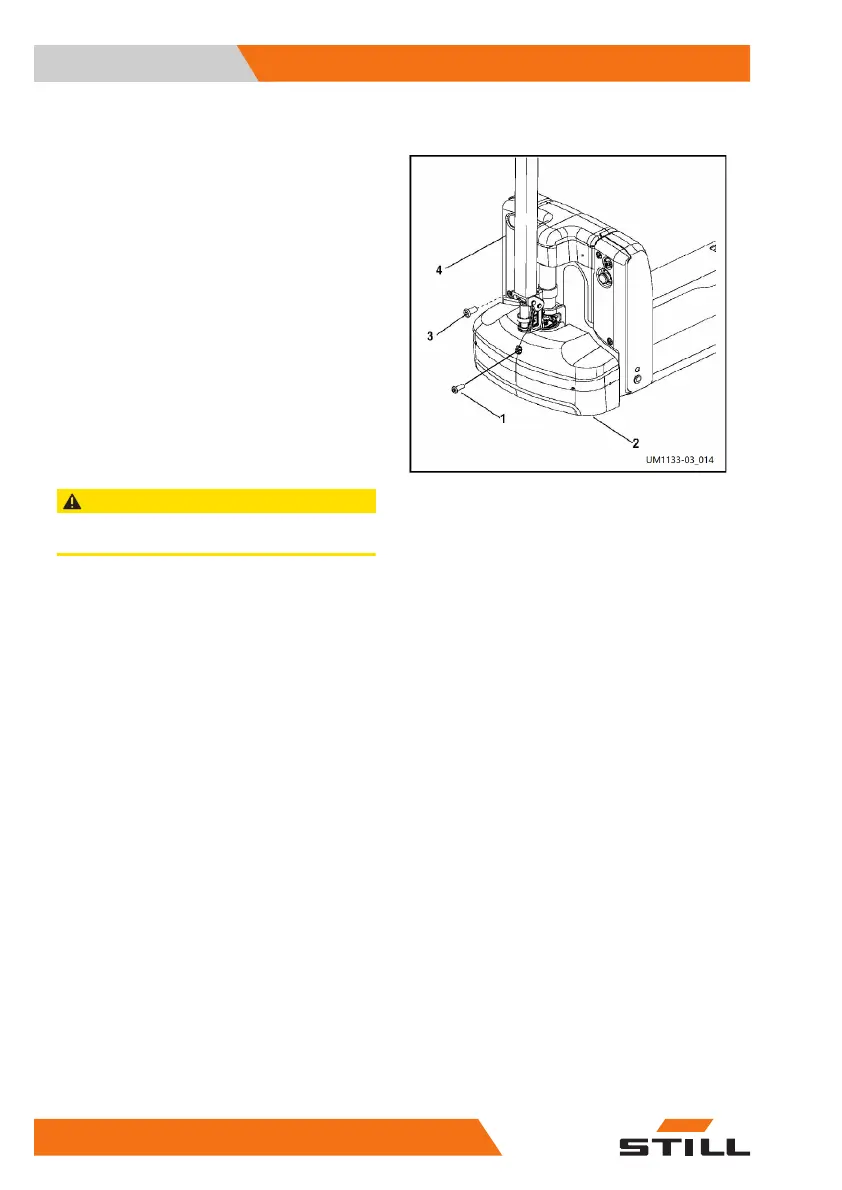

– Unscrew the three bolts (1) and take out the
universal wheel housing (2).
– Unscrew the two bolts (3) and take out the
rear left side panel (4).
Replacing the drive wheel
The drive wheel can only be replaced by au-
thorised service personnel.
Checking the hydraulic oil level
If there are popping noises coming from the
tubing when lifting, this indicates that the hy-
draulic oil is insufficient and should be prompt-
ly replenished.
CAUTION
Do not add hydraulic oil that contains impurities.
Top up the hydraulic oil:
●
Carry out the pre-service preparations prop-
erly.
●
Remove the cover.
●
If necessary, top up with hydraulic oil of the
correct specification.
After topping up, lift the fork. The oil level is
fully topped up when you no longer hear pop-
ping noises; continue to add oil if you still hear
popping noises.
Install following the above steps in reverse or-
der.
Topping up the gear oil
– Carry out the pre-service preparations prop-
erly.
– Remove the lower cover assembly.
