1
2
3
12
14
5
4
8
7
6
10
11
13
9

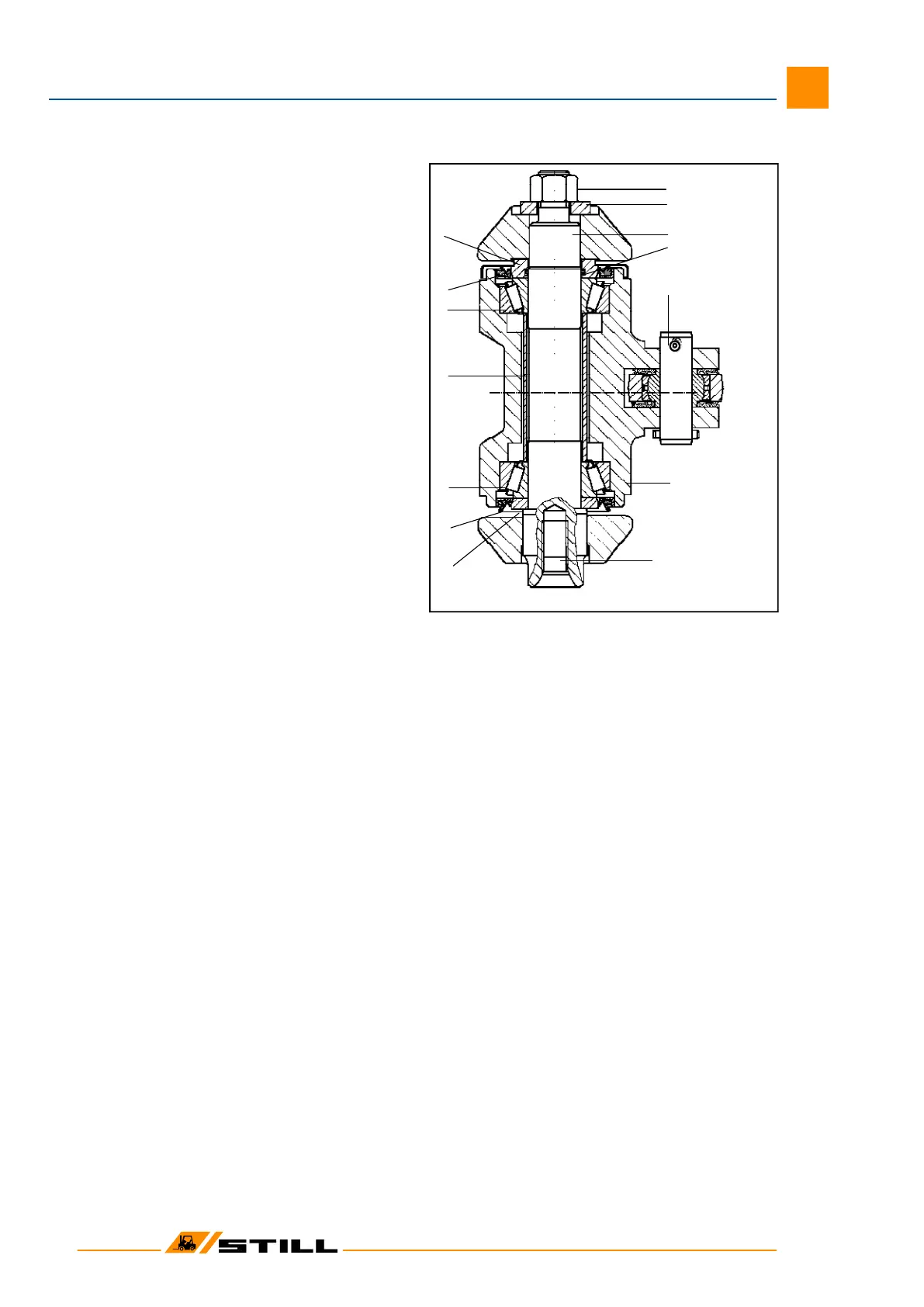

Stub axle - Reassembling and Installation
1 nut
2 washer
3 king pin
4 plug
5 stub axle
6 spacing washer
7 wiper ring
8 tapered roller bearing
9 spacer
10 tapered roller bearing
11 wiper ring
12 O-Ring
13 spacing washer
14 pin
- Insert spacer (9) into the stub axle.
- Install both tapered roller bearings (8 & 10)
after having first repacked them with a
sufficient amount of FL grade grease!
- Apply a smear of FL grade grease to the
sealing lips of the wiper rings (7 & 11).
- Install wiper rings (7 & 11), ‘O’ ring (11) as well
as both spacing washers (items 13 & 6).
- Install the stub axle into the axle beam.
- Drive in the king pin (3) from below after having
first applied a light smear of oil to it.
- Fit the washer (2) into position on the king
pin.
- Install a new nut (1) and tighten to a torque of:
M
A
= 290 Nm
- Press the pin (14) into the track rod and secure
with roll pins.
- Install wheel.
- Lubricate the steer axle with FL grade grease.
Lubricating the steer axle
- Operate the linkage during steering.
- Using a grease gun, lubricate with FL grade
grease the fittings with which the steer axle is
equipped until a small amount of fresh grease
oozes out at the lubricating points.
02
Steer axle
8
Workshop Manual 7052/56/74-76, 7054/58/77-79
