Steering cylinder removal
Remove track rods.
Disconnect hydraulic connections after
having marked them for identification.
WARNING: Hydraulic oil may spill when
disconnecting lines; be prepared
for oil spillage!

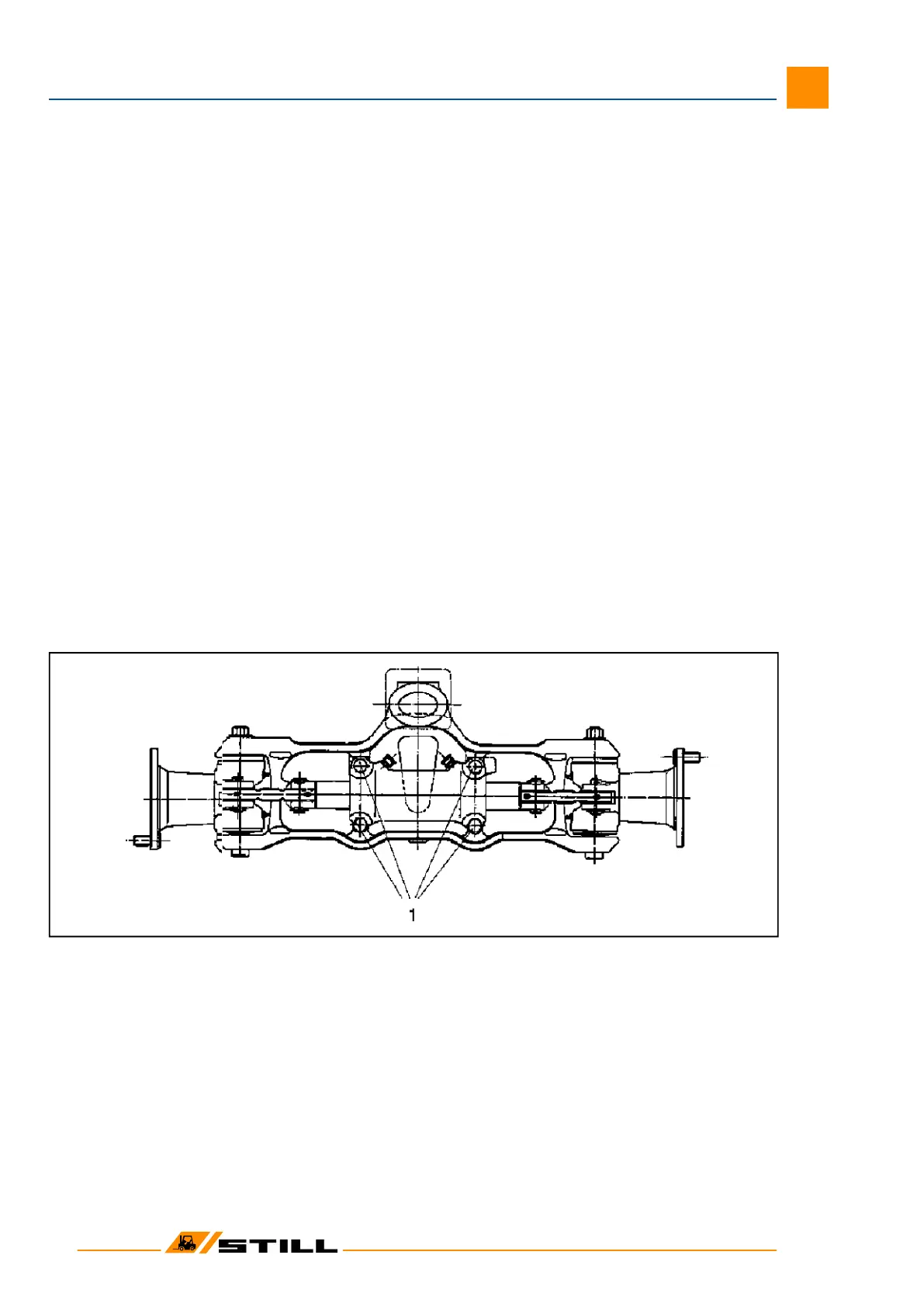

– Slacken the four fixing screws (1). .
Steering cylinder installation
Retighten the fixing screws (1).
Torque loading: M
A
= 210 Nm
Reconnect hydraulic connections.
CAUTION:
Do not swap hydraulic connections!
Install track rods.
NOTE: For steering cylinder dismantling and
reassembling refer to F.G. 06.
Lubricating the steer axle with grease
Operate the linkage during greasing while the
steer axle is off load.
Using a grease gun, lubricate with FL grade
grease the 8 fittings with which the steer axle
is equipped until a small amount of fresh
grease oozes out at the lubricating points.
NOTE: When lubricating the upper bearing, the
grease need not ooze out of the upper sealing
ring, it may also escape from the bottom.
02
Steer axle
10
Workshop Manual 7052/56/74-76, 7054/58/77-79
