Checking the steering angles

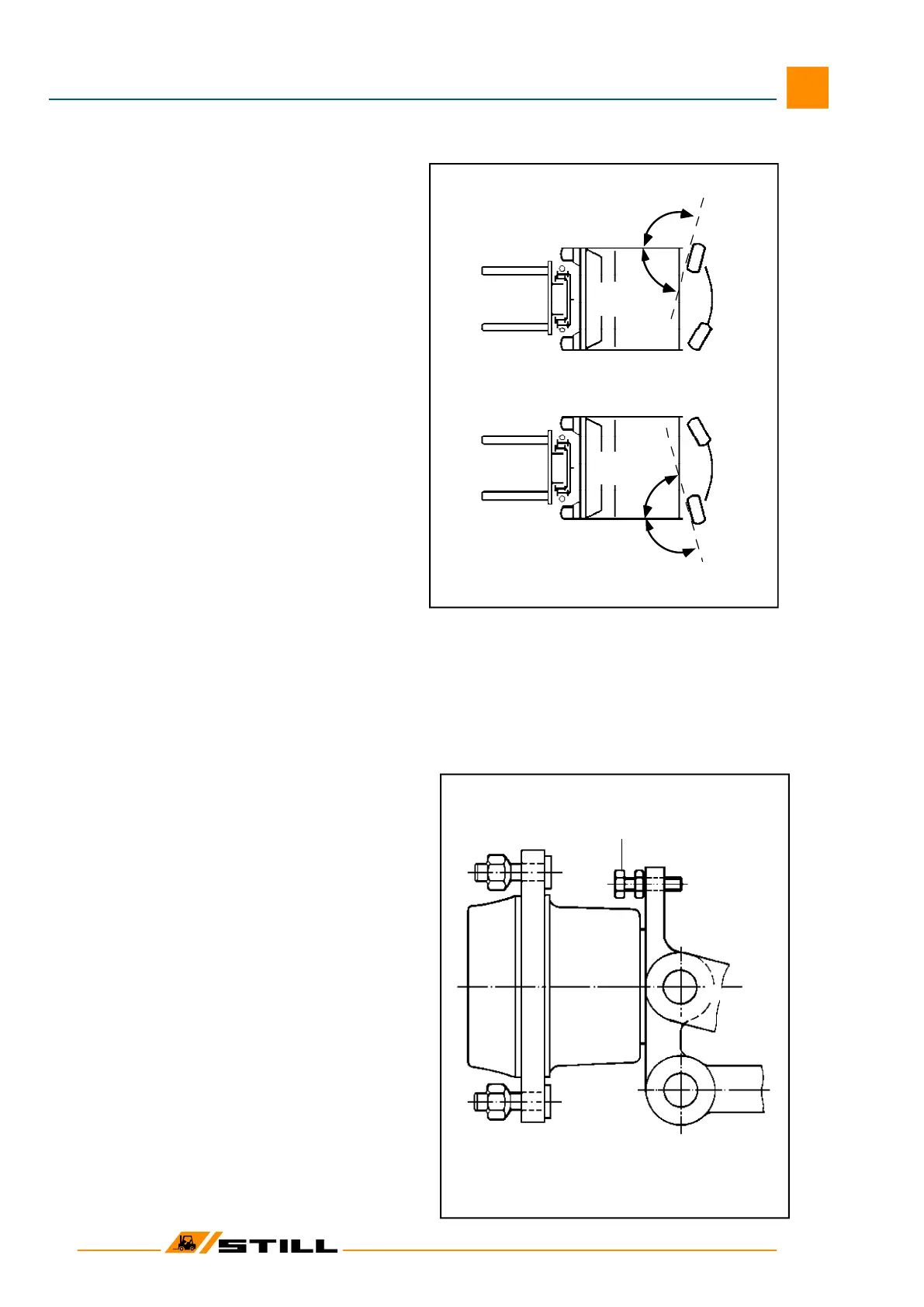

The steering angle a must amount to 80° - 82°.
To facilitate the measurement use the complementary
angle b for the setting. It should amount to 98° - 100°.
IMPORTANT: Ensure that the wheel lock is
limited by the stop screws (1) and not by the
cylinder stroke.
Wheel angle stop adjustment
The wheel stop angle is limited by the stop
screws (1).
- By operating on stop screws (1), set both
steering angles to 80° - 82°.
- Check opposite angles.
- Check for adequate clearance between wheels
and truck frame.
- Check that the wheel lock is not limited by
the cylinder stroke.
02
Steer axle
6
Workshop Manual 7052/56/74-76, 7054/58/77-79
