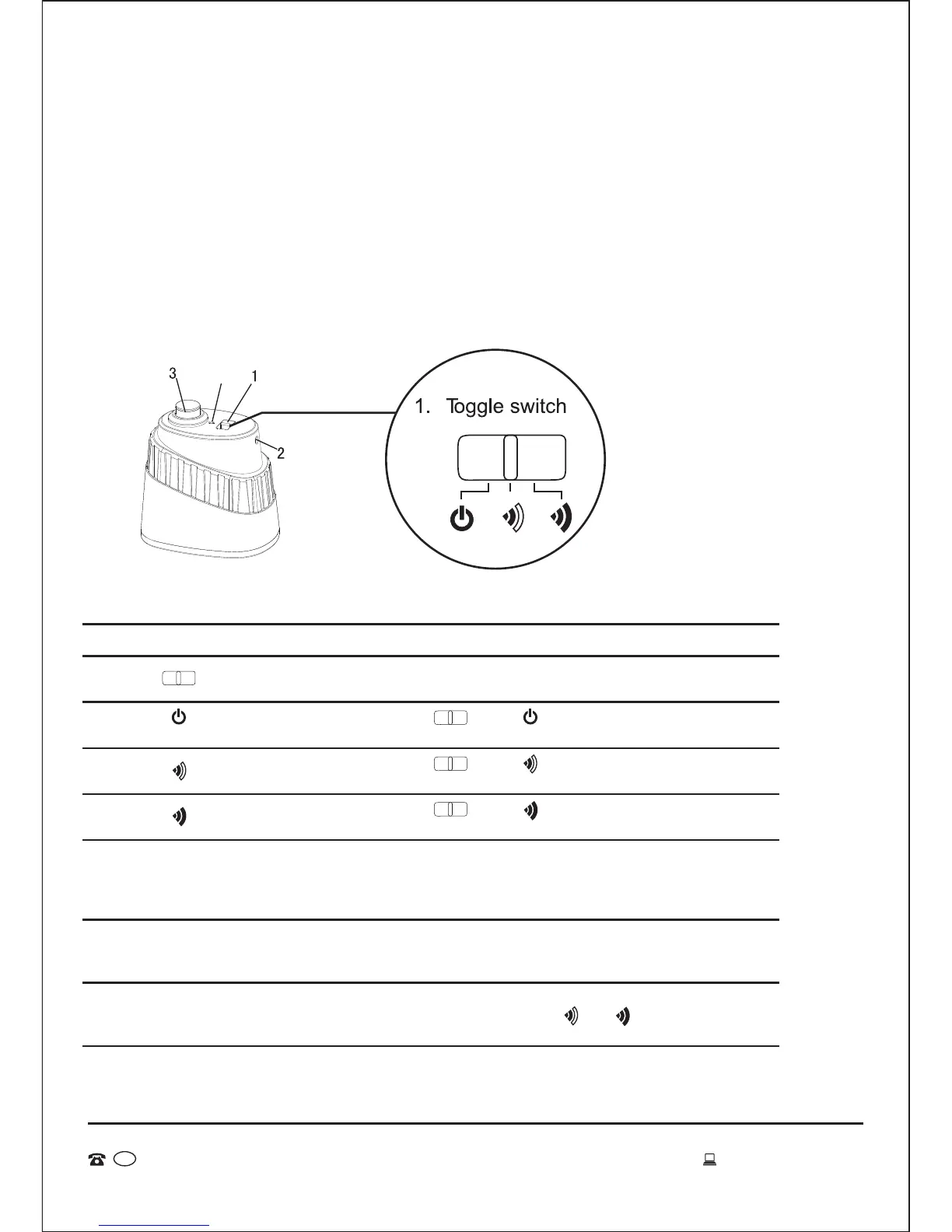

Space Isolator
The Space Isolator is an accessory of the vacuum cleaner which sends out a
special infrared signal to prevent the vacuum cleaner from entering
unnecessary areas.
You do not need to place a Space Isolator above stairs. Your robot vacuum
cleaner is equipped with three level sensors that recognise staircases and other
dips to ensure it will not fall.
1
Toggle switch
No. Name Function Information
You can select the function from High, Low or Off by
sliding the toggle switch.
Slide to the ( ) position to turn the infra-red
signal off.
Slide to the ( ) position to set the infra-red
signal within 3 metres.
Slide to the ( ) position to set the infra-red
signal within 6 metres.
This transmitting head emits an infra-red signal with a
strength of 3 or 6 metres depending on the setting chosen
above. It creates a 15˚beam which the robot will not
pass through.
2
1
Extended infra-red
transmitting head
Offa
Lowb
Highc
This transmitting head enables an infra-red signal around
the space isolator with a scope of 50-100cm to ensure that
the robot does not collide with the actual Space Isolator unit.
3
Short infra-red
transmitting head
4 Power LED
The Power LED will flicker once every 8 seconds until you
slide the toggle switch to Low, High. Once the
infra-red signal is set, your space isolator is ready to use.
Instructions Cont.
4
21
