Product Overview (Cont.)

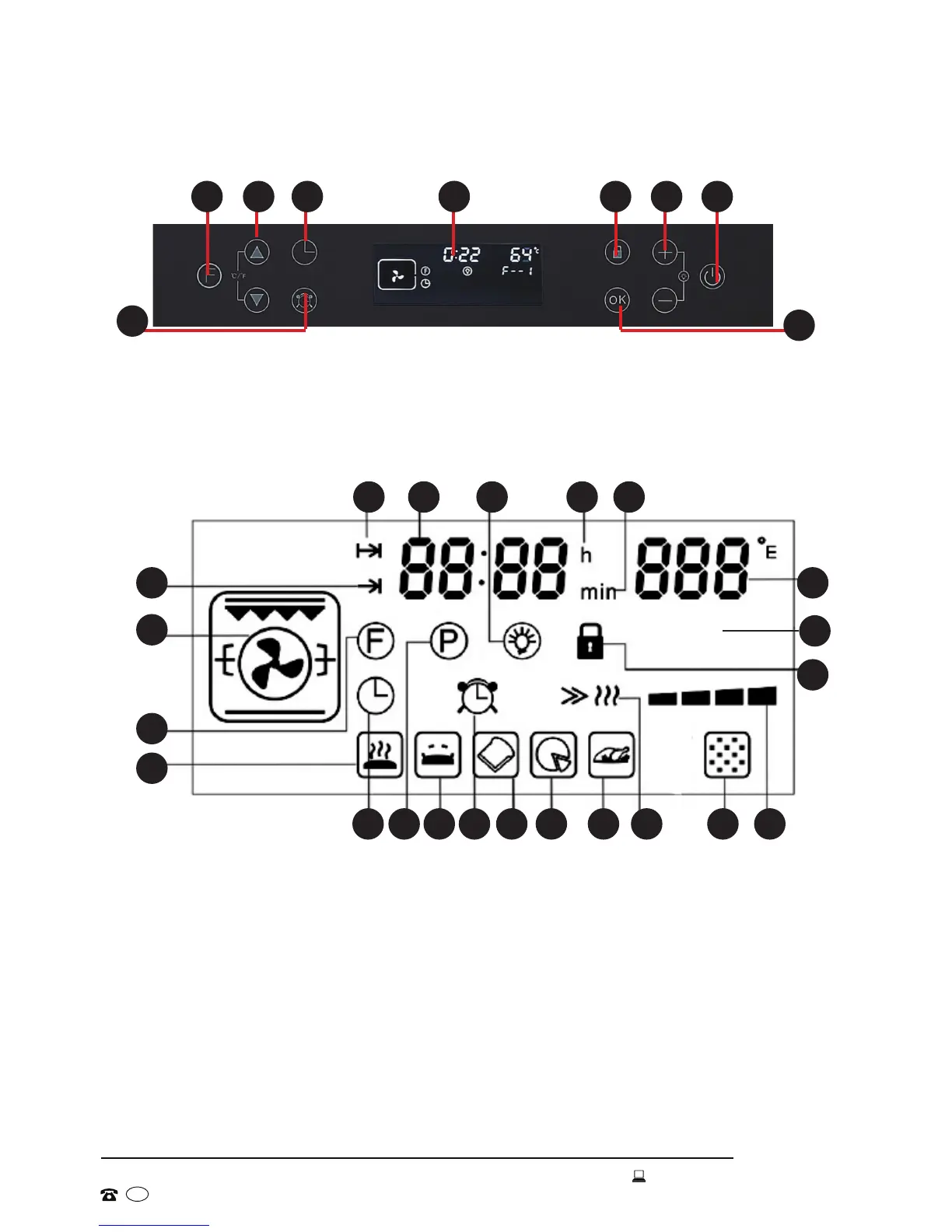

Control panel buttons and indicators
12
11
10
9
54321
a FUNCTION (F) button
b FUNCTION UP/DOWN selector
buttons (°C/°F selection)
c TIMER button
d Display screen (see below)
1 Start/Cooking time symbol
2 Time display
3 Lamp symbol
4 Hour symbol
5 Minute symbol
6 Program symbol
7 Oven temperature display
8 Child lock symbol
9 Thermometer symbol
10 Pyrolytic self-cleaning symbol
11 Element operation symbol
a b c d e
h
i
f g
12 Programmed cooking: chicken pieces
13 Programmed cooking: pizza
14 Programmed cooking: toasting bread
15 Clock symbol
16 Programmed cooking: rising
17 Programmed cooking (P) symbol
18 Timer symbol
19 Programmed cooking: keep warm
20 Manual (Function) cooking (F) symbol
21 Function symbol
22 End time symbol
e CHILD LOCK button
f PLUS/MINUS button (lamp ON/OFF)
g ON/OFF power button
h OK button
i CLOCK button
LED display
6
8
131415
1617
18
19
20
21
22
NOTE: Only symbols for the functions selected will be illuminated at a time.
