STL STRIKER 8 - Control Box and Extension Cable; Direct Control Switch Box Operation; Extension Cable Installation

5 SpeedTech Lights, Inc © 2019
STRIKER
®
8
TRAFFIC ADVISOR

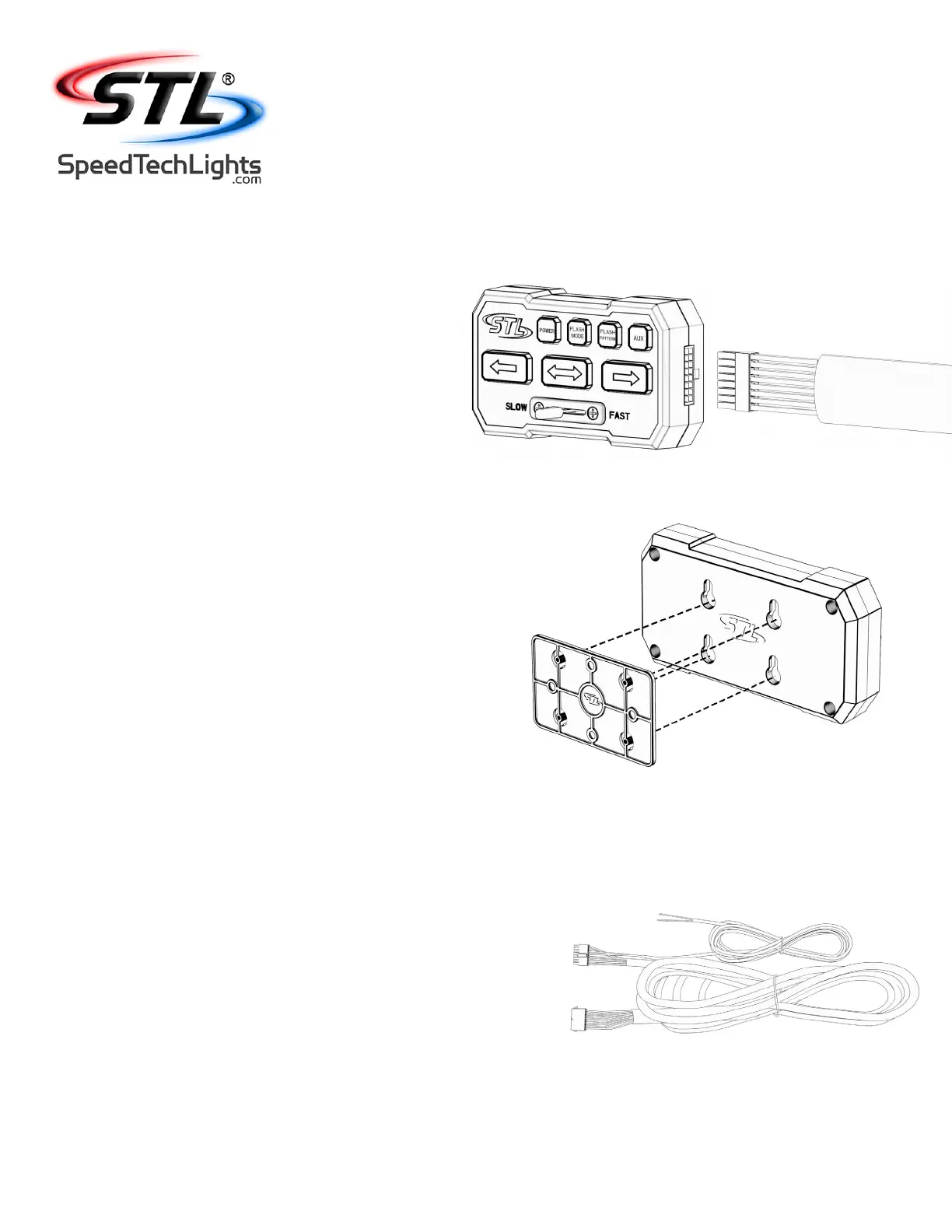

Direct Control Switch Box Operation (Sold Separately)
Power Button:
• Push this button to turn On/O󰀨 the Direct Control Box.
Flash Mode Button:
• Switch back from Tra󰀩c Advising mode to Warning mode.
Tra󰀩c Advisor Buttons:
• Left Arrow: Right to Left Tra󰀩c Sweep.
• Center-Out: Center-Out Tra󰀩c Sweep.
• Right Arrow: Left to Right Tra󰀩c Sweep.
Flash Pattern Button:
• Cycles to the next ash pattern with each press.
• Non-Volatile memory recalls the last ash pattern selected.
• Hold for 3 seconds to toggle Steady Burn mode.
• Hold for 5 seconds to toggle Random pattern mode.
Slow/Fast Slide Switch:
• Adjust ashing speed.
AUX Button*:
• Toggle power to AUX cables On and O󰀨.
* Power Button does not need to be activated for these Buttons to function.
Extension Cable (Sold Separately)
• If you have an extension cable with connectors, connect the corresponding ends to
one another. Use the connector at the end of the cable to plug into the control box.
• If you have an extension cable with one connector, you will need to cut the
connector o󰀨 of the main cable harness coming out of the Light Bar. Save it as a
spare part. You will solder and heat shrink each wire within the cable harness to
each wire in the extension cable harness. DO NOT cross connect wires. Use the
connector at the end of the extension cable to plug into the control box.
• If you have an extension cable with no connectors, you will need to cut in the
middle of the main cable harness coming out of the Light Bar. You will solder and
heat shrink each wire within the cable harness to each wire in the extension cable
harness. DO NOT cross connect wires. Use the reattached connector from the end
of the main cable harness to plug into the control box.
• NOTE: DO NOT leave connectors, cables, solder points exposed to heat, moisture,
or debris.
