STOBER 9 | Installation
02/2019 | ID 442728.05
89
9 Installation
The following chapter describes the installation of the Quick DC-Link rear modules for the DC
link connection as well as the subsequent installation of the drive controllers and supply
modules.
9.1 Safety instructions for installation
Installation work is permitted only when no voltage is present. Observe the 5 safety rules; see
the chapter Working on the machine [}17].
Note the minimum clearances specified during installation to prevent the devices from
overheating.
Protect the devices against falling parts (bits or strands of wire, pieces of metal, etc.) during
installation or other work in the control cabinet. Parts with conductive properties may result in a
short circuit inside the devices and device failure as a result.
9.2 Basic assembly instructions
Note the points described below for installation.
9.2.1 Drive controllers and supply modules
Note the following points for installation:
§ Prevent condensation, e.g. with anti-condensation heating elements.
§ For reasons related to EMC, use installation plates with a conductive surface (unpainted,
etc.).
§ Avoid installation above or in the immediate vicinity of heat-generating devices, e.g. output
chokes or braking resistors.
§ To ensure there is sufficient air circulation in the control cabinet, observe the minimum
clearances.
§ Install the devices vertically.
Reference identification
Attach a sticker to the provided field on the front on the device with the unique reference
identification of the respective device to prevent mix-ups during installation or replacement.

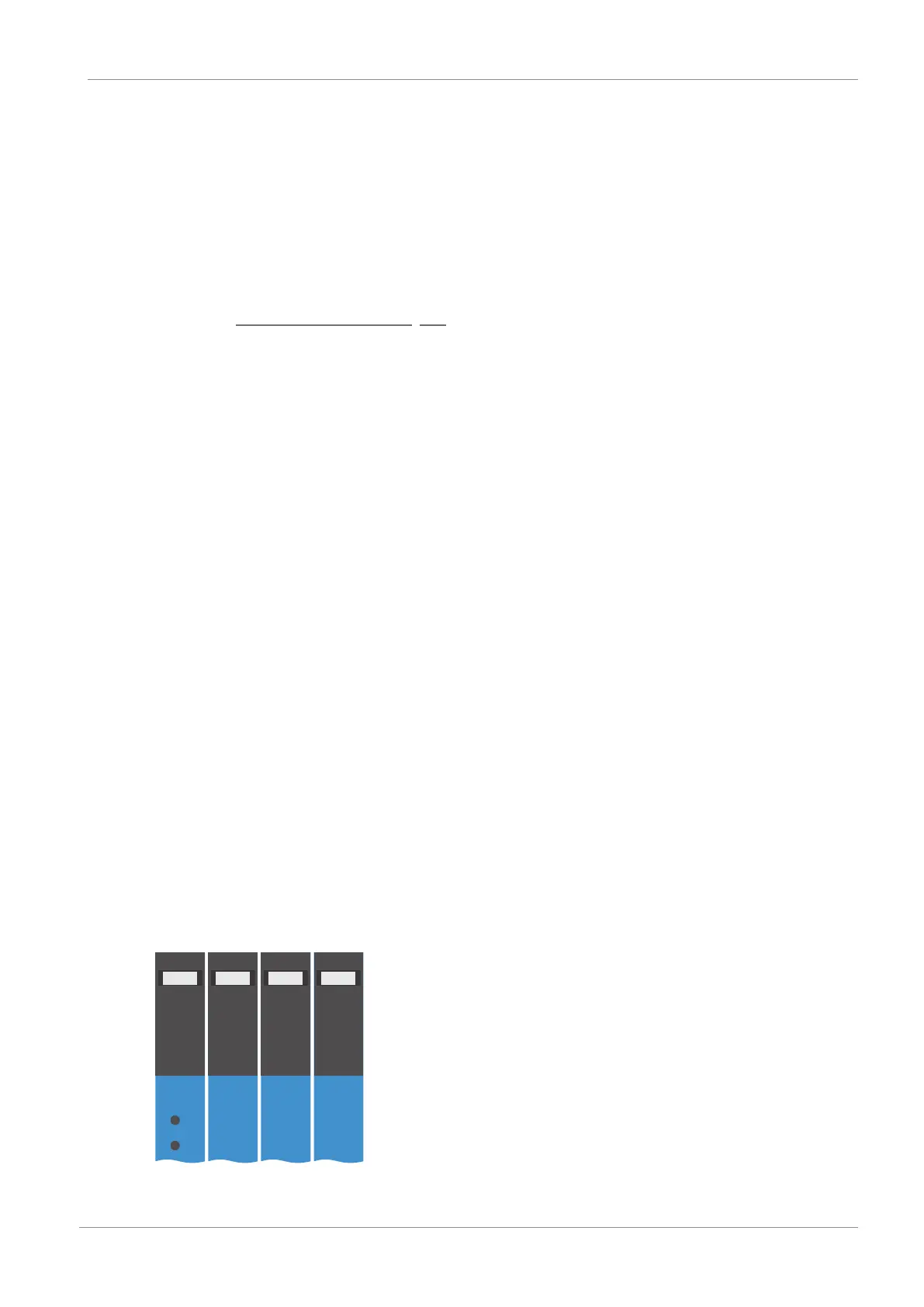

Fig.23: Fields for equipment identification on the front of the device
