- 22 -
Maintenance

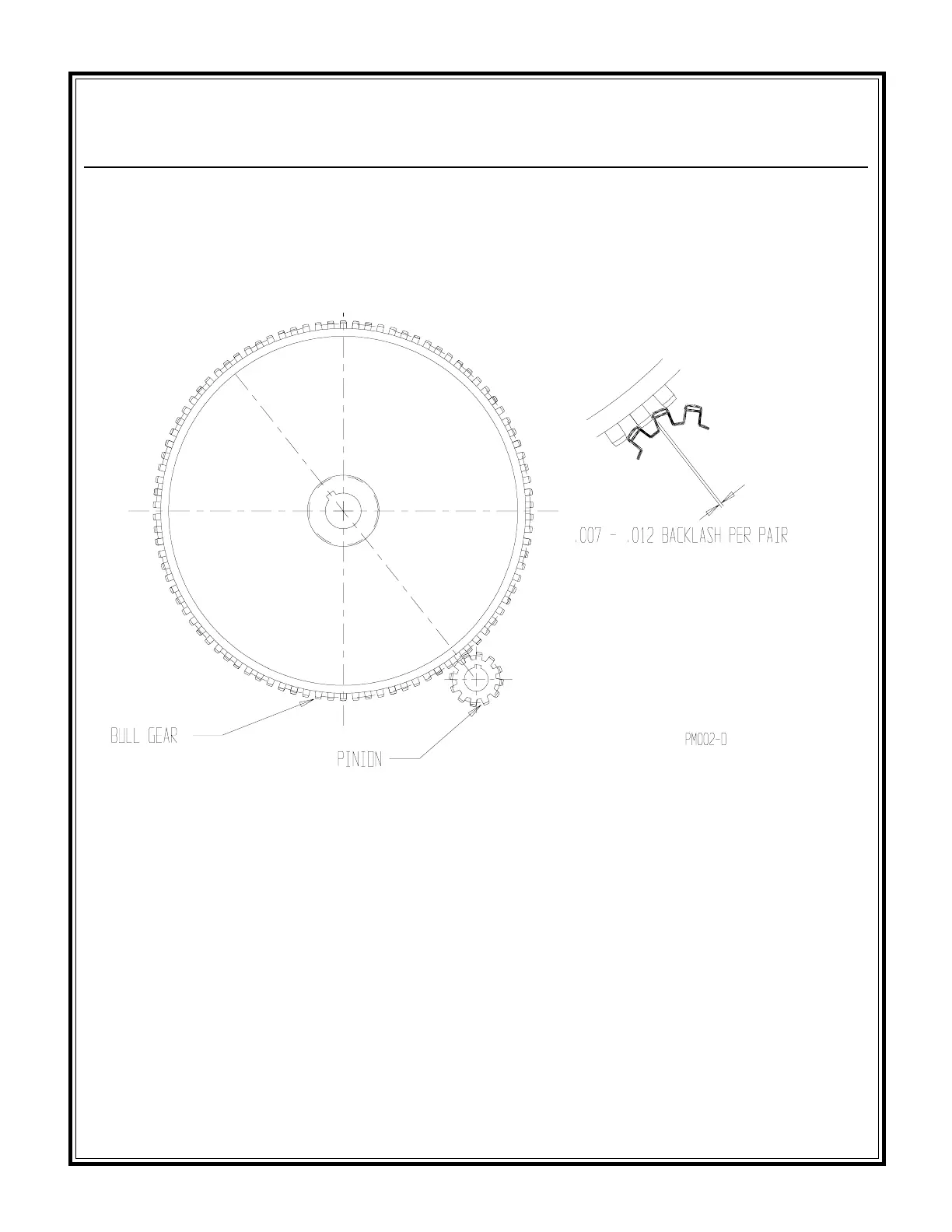

BULL GEAR ASSEMBLY
1. Align Bull Gear keyway opposite to gear mesh.
2. Adjust pinion for tooth alignment and engagement using .010 feeler gauge.
3. Tighten all four (4) pillow block bolts before removing feeler gauge.
Bull Gear Assembly
