StoneL Quartz QX Series User Manual

7 QZ 70 en22 | Quartz
StoneL publication 105406revA
4.3 Reed type proximity switches
4.3.3 Intrinsically safe models with SPST Maxx-Guard proximity sensors (J)
Applicable models
QN_J
Specications
Conguration SPST (NO)
Electrical rating 0.1 amp @ 10-30 VDC
Maximum voltage drop 0.1 volts @ 10 mA
0.5 volts @ 100 mA
Contact material Ruthenium
Temperature range -40° to 80° C
Operating life 5 million cycles
Seal Hermetically sealed reed switches
Warranty Two years
Light read sensors
Test LED units with 9 volt battery and load between 150 and
1000ohms - ½ watt. Ohm meter will not work. DO NOT test without
load. (Maxx-Guard Light Read tester available from StoneL or StoneL
distributor.)
Minimum of 3.5 volts required for proper switch operation.

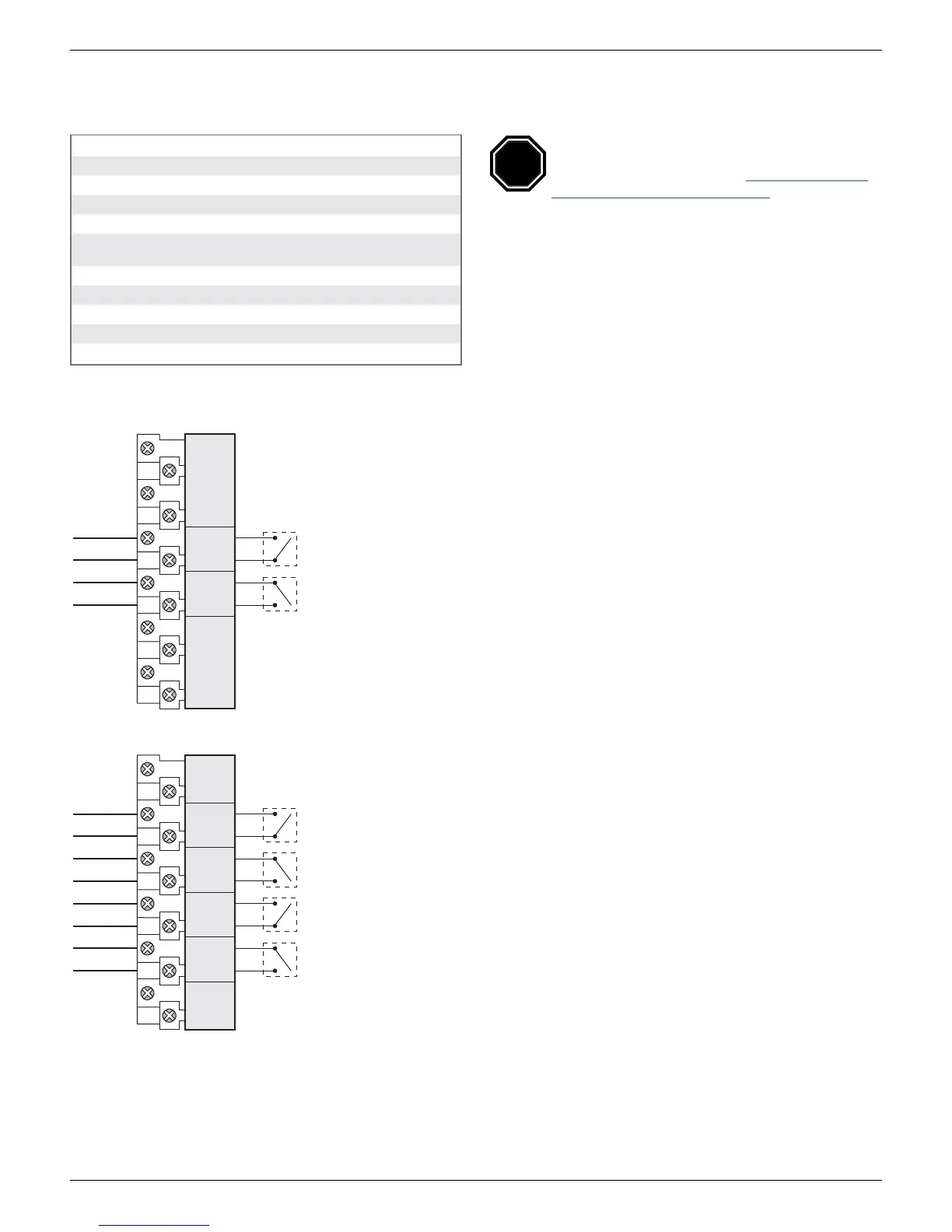

Wiring diagrams
2 SPST switches (QN2J_)
4 SPST switches (QN4J_)
top switch
bottom switch
TOP NO
TOP C
BTM C
BTM NO
5
6
7
8
BTM SWTOP SW
NO
C
C
NO
SPARES SPARES
1
2
3
4
top switch
second switch
third switch
bottom switch
TOP NO
TOP C
2nd C
2nd NO
3rd NO
3rd C
BTM C
BTM NO
C
NO
3
4
3rd SW2nd SWTOP SW BTM SW
C
NO
NO
C
SPARES SPARES
1
2
NO
C
Notes
1. The QN_J series devices are approved under the Entity Concept
as Intrinsically Safe for Class I, Division 1, Groups A, B, C, & D, Class
II, Division 1, Groups E, F, & G, and Class III, Division 1 Hazardous
(Classied) locations. Under the Entity Concept the parameters
for the QN_J and devices are Vmax=30V, Imax=100mA, Ci=66nF,
Li=0.80mH. In order to have an approved loop the associated
apparatus (barriers) must be FMRC approved under the Entity
Concept with the following parameters: Voc=40V, Isc=100mA.
The control drawing for the associated apparatus will specify the
allowed connected inductance and capacitance.
2. Installation of the solenoid and its associated barrier must be in
accordance with the respective control drawings supplied by the
respective manufacturers. This equipment must be approved by
Factory Mutual Research Corporation as Intrinsically Safe for Class I,
Division 1 Hazardous (Classied) locations.
Touch & Tune switch setting
1. Lift bottom cam and rotate until sensor is activated. (White
highlight will be next to sensor.) Release cam and be sure it slides
fully onto spline.
2. Operate actuator to opposite position, push down on top cam and
repeat process.
Reference controlled installation drawing #105193 for
proper intrinsic safety installation details. Find document
in the Appendix on page49 or at www.stonel.com/en/
products/quartz/installation-manuals
STOP
