7 QZ 70 en24 | Quartz
StoneL publication 105406revA
Applicable models for silver contacts (V)*
(QG2V_, QX2V_, QG4V_, QX4V_, QG6V_, QX6V_)
Specications
Electrical ratings 10.0 amp @ 125/250 VAC
0.5 amp @ 125 VDC
Temperature range -40° to 80° C
Operating life 400,000 cycles
Warranty Two years
* Not recommended for electrical circuits operating at less than 20 mA @ 24 VDC
Applicable models for gold contacts (W)**
(QG2W_, QX2W_, QG4W_, QX4W_, QG6W_, QX6W_)
Specications
Electrical ratings 1.0 amp @ 125 VAC
0.5 amp @ 30 VDC
Temperature range -40° to 80° C
Operating life 100,000 cycles
Warranty Two years
** Recommended for use in 24 VDC computer input applications
4.4 Mechanical micro switches
4.4.1 Silver contacts (V) and gold contacts (W)
top switch
bottom switch
BTM NC
TOP NC
TOP NO
BTM C
TOP C
BTM NO
SPARES SPARES
1 2 3 4
TOP SW
5 6
NC NCNO NOC C
7 8 9
BTM SW
10 1211

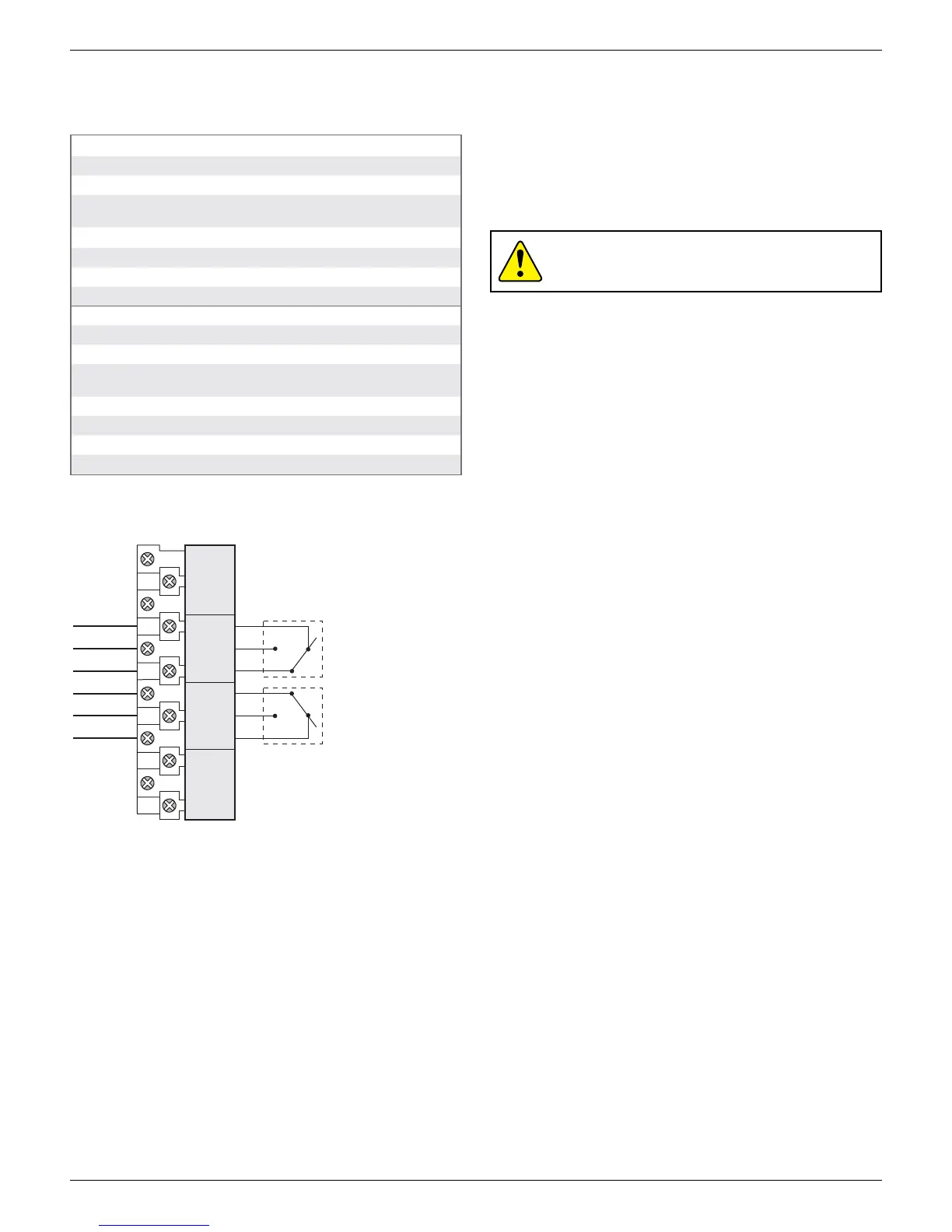

Wiring diagrams
2 SPDT switches (QG2V_, QG2W_, QX2V_, QX2W_)
Touch & Tune switch setting
1. Lift bottom cam and rotate until sensor is activated. Release cam
and be sure it slides fully onto spline.
2. Operate actuator to opposite position, push down on top cam and
repeat process.
Caution: To prevent ignition of hazardous atmospheres,
replace cover before energizing the electrical circuits. Keep
cover tightly closed within operation.
