StoneL Quartz QX Series User Manual

7 QZ 70 en42 | Quartz
StoneL publication 105406revA
Applicable models
QN8Y_, QX8Y_
Specications
Electrical ratings 0.10 amp @ 125 VAC
Maximum voltage drop 3.5 volts @ 10 mA
6.5 volts @ 100 mA
Temperature range -40° to 80° C
Operating life 5 million cycles
Seal Hermetically sealed reed switches
Warranty Two years
Not recommended for electrical circuits operating at less than 20 mA @ 24 VDC
4.7 Expeditors
4.7.3 With Maxx-Guard proximity sensors (8Y)
Touch & Tune switch setting
All adjustments assume you are looking down on the top of the
sensors. The edge of the cam metal strip will be at the edge of the
sensor target when activation occurs. When the cam is released be
sure it slides fully onto the spline. One spline tooth setting is 4 ½°.
1. At full open position depress middle cam and rotate until sensor
is activated. (White highlights will overlap and green LED will light
if power is applied.) Release cam and be sure it slides fully onto
spline.
2. At full closed position lift bottom cam and rotate until sensor is
activated. (White highlights will overlap and red LED will light
if power is applied.) Release cam and be sure it slides fully onto
spline.
Caution: To prevent ignition of hazardous atmospheres,
replace cover before energizing the electrical circuits. Keep
cover tightly closed within operation.
Intermediate switch setting
At full closed position lift top cam and rotate in clockwise direction
past 0° to desired degree setting for intermediate switch to be
energized. After setting is made, run actuator to full open position.
De-energize primary solenoid and observe valve position after
intermediate switch is activated and secondary solenoid is energized.
Readjust top cam if necessary to increase or decrease angle of valve
when intermediate switch is activated.

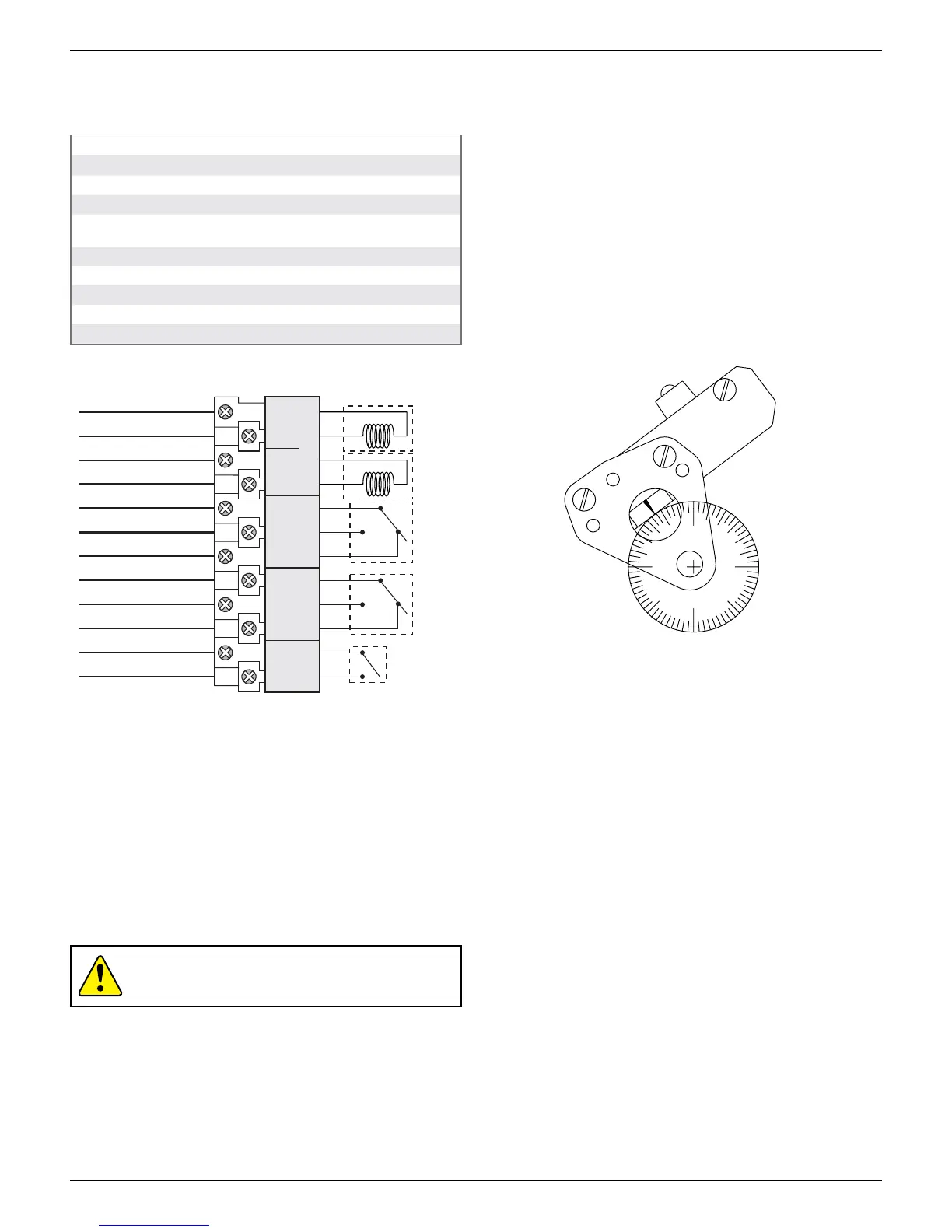

Wiring diagram
closed switch
red LED
open switch
green LED
SECOND 4
CLOSED C
CLOSED NC
CLOSED NO
SECOND 3
OPEN NO
OPEN NC
INTERMEDIATE NO
INTERMEDIATE C
OPEN C
PRIMARY 2
PRIMARY 1
INTER-
MEDIATE
OPEN
1
2
3
4
SOLENOID
NC
PRIMARY
NO
SECOND
C
NC
NO
C
NO
C
CLOSED
*Solenoids not supplied with unit
intermediate switch
yellow LED
primary
solenoid*
secondary
solenoid*
180°
90°
1
5
°
7
5
°
3
0
°
45°
6
0
°
90°
0°
6
0
°
7
5
°
3
0
°
4
5°
1
5
°
Intermediate switch
