StoneL Quartz QX Series User Manual

StoneL publication 105406revA
7 QZ 70 en Quartz | 53

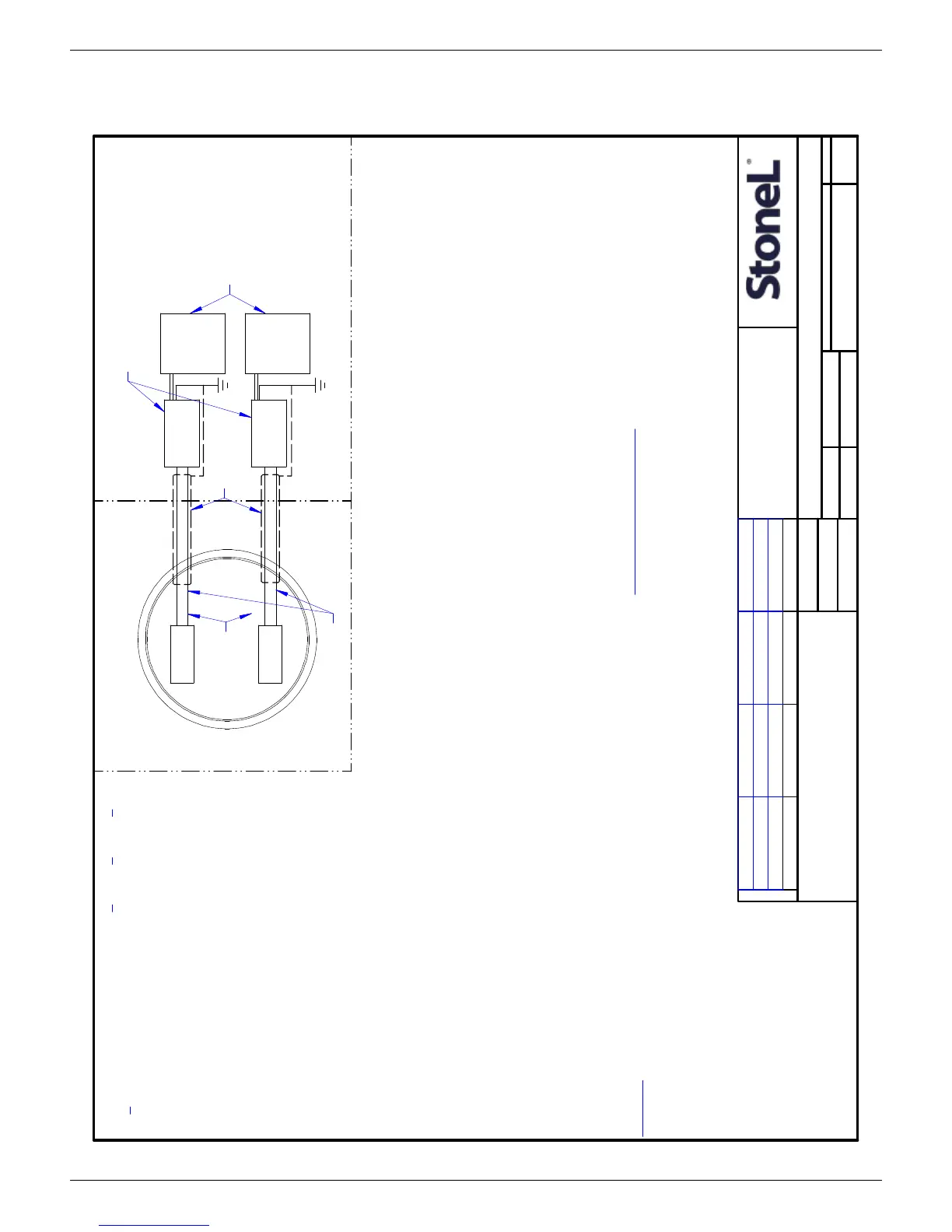

I.S. CONTROL, QUARTZ SERIES
NS
6/15/2007
SK
BL
RK
105193
SHEET
7
A
TOLERANCES (UNLESS OTHERWISE SPECIFIED): X.XXX
`.005 ANGLES ` 0~ 30'
X.XX
`.010 FINISH f 125 RMS
X/X
`.015
D
5
SCALE
REV.DRAWING NO.
SIZE
TITLE
APPD. CHK. DR.
DATE
CONFIDENTIAL THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS THE PROPERY OF AND IS SUBJECT TO CHANGE BY STONEL. DRAWING IS NOT TO BE REPRODUCED OR REVEALED TO ANY OTHER PARTY UNLESS AUTHORIZED BY STONEL.
METSO AUTOMATION, FERGUS FALLS, MN U.S.A.
R
E
V
IS
IO
N
S
OF
REVISION ECO DATE BY
TOP
SENSOR
BOTTOM
SENSOR
S
t
o
n
e
L
E
n
c
l
o
s
u
r
e
HAZARDOUS (CLASSIFIED) LOCATION
NON-HAZARDOUS
(SAFE AREA)
LOCATION
(+) (-)
Intrinsically Safe
Ground
(-) (+)
Control Equipment
Intrinsic Safety Barrier (Associated Apparatus)
Seperate Shields
INSTALLATION NOTES (Class I, II, III; Division 1; Groups A, B, C, D, E, F, G): QN44; QX44 Entity Parameters: Ui (Vmax) = 22 Vdc; Ii (Imax) =120 mA; Ci = 98 nF; Li = 0.8 mH; Pi = 2.0 W QN45; QX45 Entity Parameters: Ui (Vmax) = 22 Vdc; Ii (Imax) =120 mA; Ci = 3.0 nF; Li = 0.0 mH; Pi = 0.4 W 1. Uo < Ui (Vmax); Io < Ii (Imax); Ca > Ci + Ccable, La > Li + Lcable. 2. Control equipment connected to barrier must not use or generate more than 250 Vrms or Vdc. 3. Installation should be in accordance with ANSI/ISA RPA12.6.01 "Installation of Intrinsically Safe Systems for Hazardous (Classified) Locations" and the National Electrical Code (ANSI/NFPA 70) or in accordance with the Canadian Electric Code. 4. Associated apparatus manufacturer's installation drawing must be followed when installing this equipment. 5. To maintain intrinsic safety, wiring associated with each sensor or solenoid coil wiring must be run in separate cables or separate shields connected to intrinsically safe (associated apparatus) ground. Each Sensor and Solenoid coil shall be wired as separate intrinsically safe circuits. 6. Conduit Grounding - Upon installation verify electrical continuity between conduit and ground terminal. 7. Resistance between Intrinsic Safe Ground and earth ground must be less than one ohm. 8. Parts of the enclosure are non-conducting and may generate an ignition-capable level of electrostatic charge under certain extreme conditions. The user should ensure that the equipment is not installed in location where it may be subjected to external conditions (such as high-pressure steam) which might cause a build-up of electrostatic charge on non-conducting surfaces. Additionally, cleaning of the equipment should only be done with a damp cloth. 9. Substitution of components may impair hazardous location safety. WARNING:
1. When used in intrinsic safety applications, the metal enclosure shall be installed in such a manner as to prevent the possibility of sparks resulting from friction or impact. 2. To prevent the risk of electrostatic sparking, the equipment enclosure shall be cleaned only with a damp cloth.
INSTALLATION NOTES (Ex ia IIC T6): QN44; QX44 Entity Parameters: Ui = 22 Vdc; Ii = 120 mA; Ci = 98 nF; Li = 0.8 mH; Pi = 2.0W QN45; QX45 Entity Parameters: Ui = 22 Vdc; Ii =120 mA; Ci = 3.0 nF; Li = 0.0 mH; Pi = 0.4 W 1. Voc or Vt < Ui, Isc or It < Ii, Ca > Ci + Ccable, La > Li + Lcable. 2. Dust-tight conduit seal must be used when installed in Zone 20, Zone 21, and Zone 22 environments or where Ingress Protection of IP67 is required. 3. Control equipment connected to barrier must not use or generate more than 250 Vrms or Vdc. 4. Installation should be in accordance with appropriate local code or practice. 5. The configuration of associated apparatus for each sensor wiring pair or solenoid wiring pair must be approved. 6. Associated apparatus manufacturer's installation drawing must be followed when installing this equipment. 7. To maintain intrinsic safety, wiring associated with each sensor or solenoid coil wiring must be run in separate cables or separate shields connected to intrinsically safe (associated apparatus) ground. 8. Conduit Grounding - Upon installation verify electrical continuity between conduit and ground terminal. 9. Resistance between Intrinsic Safe Ground and earth ground must be less than one ohm. 10. Substitution of components may impair hazardous location safety. Special Conditions for Safe Use:
1. Parts of the enclosure are non-conducting and may generate an ignition-capable level of electrostatic charge under certain extreme conditions. The user should ensure that the equipment is not installed in a location where it may be subjected to external conditions which might cause a build up of electrostatic charge on non-conducting surfaces. Additionally, cleaning of the equipment should be done only with a damp cloth. 2. When installed within a Zone 0 location, the metal enclosure shall be installed in such a manner as to prevent the possibility of sparks resulting from friction or impact
.
Terminal Strip
Identifiers
Individual Sensor Wiring
B 11/17/09 BB5457
C 04/20/15 BB106 37 D 12/29/15 RB11363
QN44, QX44, QN45, QX45, QN*
4, QX*4, QN*R,
QX*
R
NOTE:
1) IF * IS "5" OR "7", ALSO SEE SHEET 1. 2) IF * IS "B" OR "C", ALSO SEE SHEET 2.
7.1 Controlled installation drawings continued
