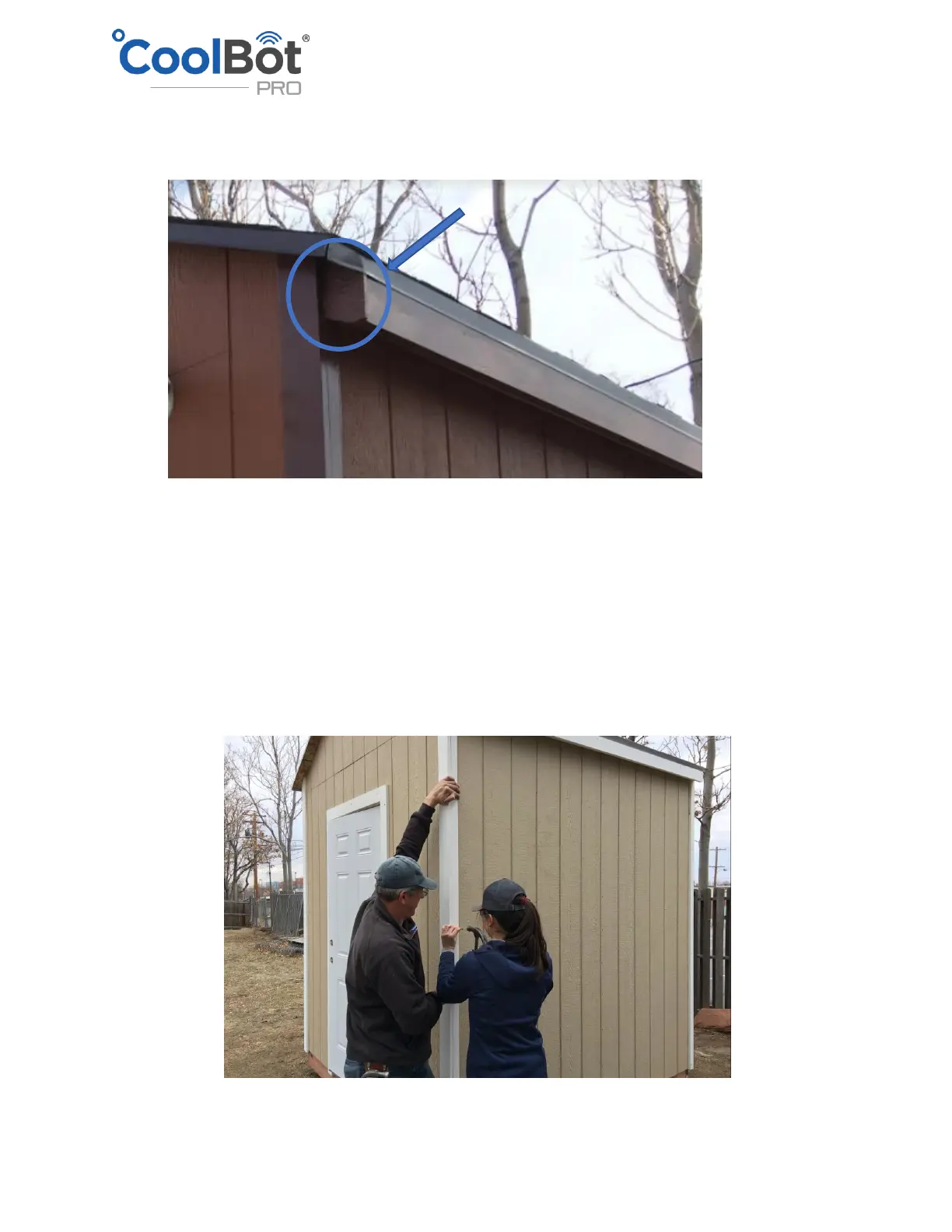

• Using a leftover piece of siding panel (or a piece of plywood), measure and cut 4 pieces to cover
the rafter, soffit and fascia board edges. This will give a better appearance from the front and
back.
EXTERIOR CORNER TRIM
• Measure and cut four 1x4 boards with a miter cut of 30° at the top. These will be the front and
back wall corner pieces. The miter cut is because the trim meets the roof at the top.
• Measure and cut 4 1x2 trim pieces with a 30° bevel cut at the top. The bevel cut is because the
trim piece will be under the soffit which has a ~30° inclination.
• Starting with one corner, place (without nailing) both pieces of corner trim making a 90° and
leaving the seam on the side. Once the boards are in place and flush, nail the 1x2 to the side of
the shed wall and then nail the front piece to the front wall and the 1x2.
• Repeat on all four corners
