INSTALLATION INSTRUCTIONS - ELECTRIC
Connect to the electricity supply
Warning:
This appliance must be earthed.
The appliance must be installed by a
competent electrician using a double
pole control unit of 32 ampere minimum
capacity with 3mm minimum contact
separation at all poles.
We recommend that the appliance is con-
nected by a qualied electrician who is a
member of the N.I.C.E.I.C. and who will
comply with the I.E.E. and local regula-
tion.
1. Access to the mains terminal
is gained by opening the terminal block
cover at the rear of the appliance (use a
small at-bladed screwdriver).
2. Connection should be made with
6.0mm2 exible twin and earth cable.
3. First strip the wires, then push
the cable through the cable clamp in the
terminal block cover.

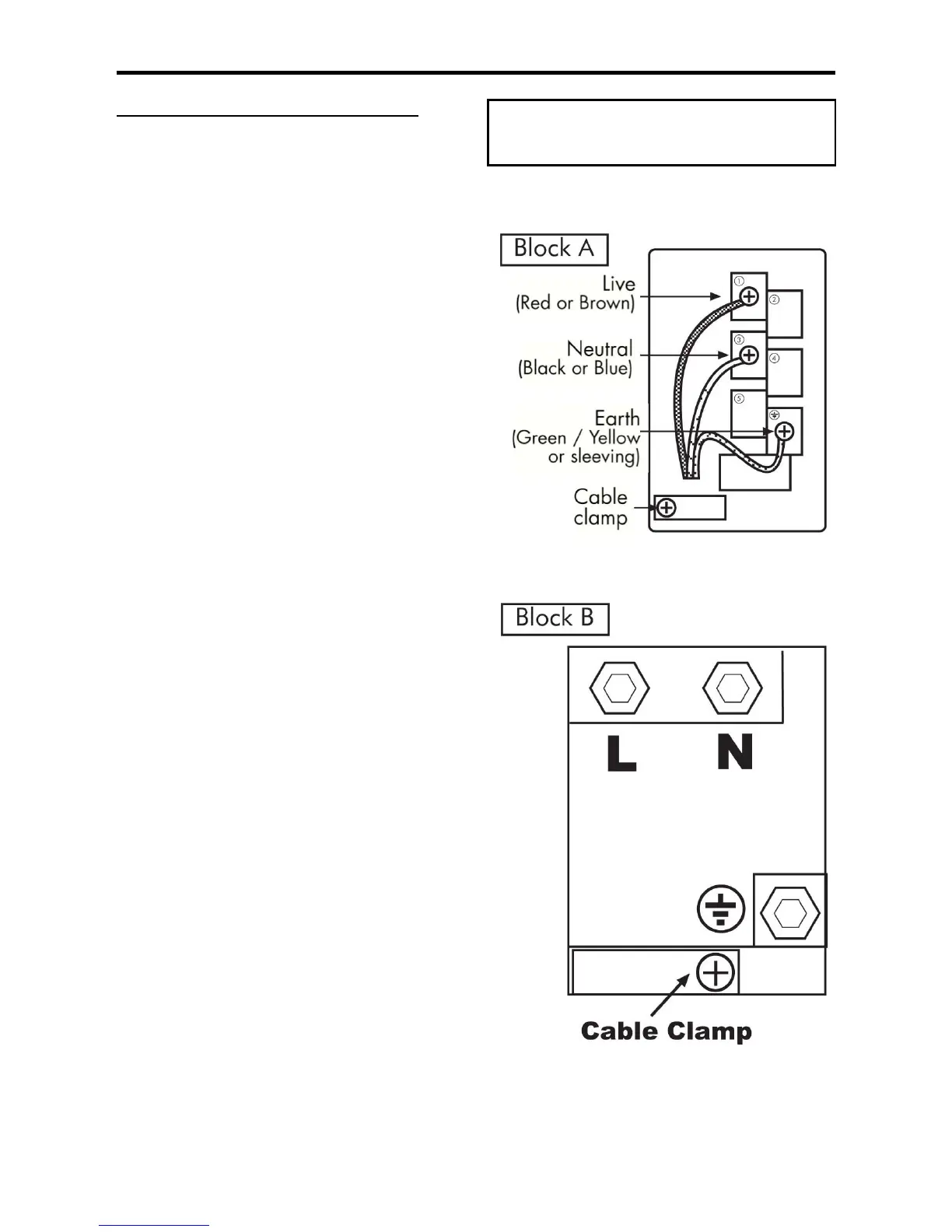

4. Connect the cable to the ter-
minal block and tighten the cable clamp
screw (see diagram).
5. Close the terminal box, ensuring
that the cover is engaged on the locking
tabs.
Your appliance will be tted with one of
the two terminal blocks below, Block A,
Block B
