6
Clock / Minute Minder (if fitted)

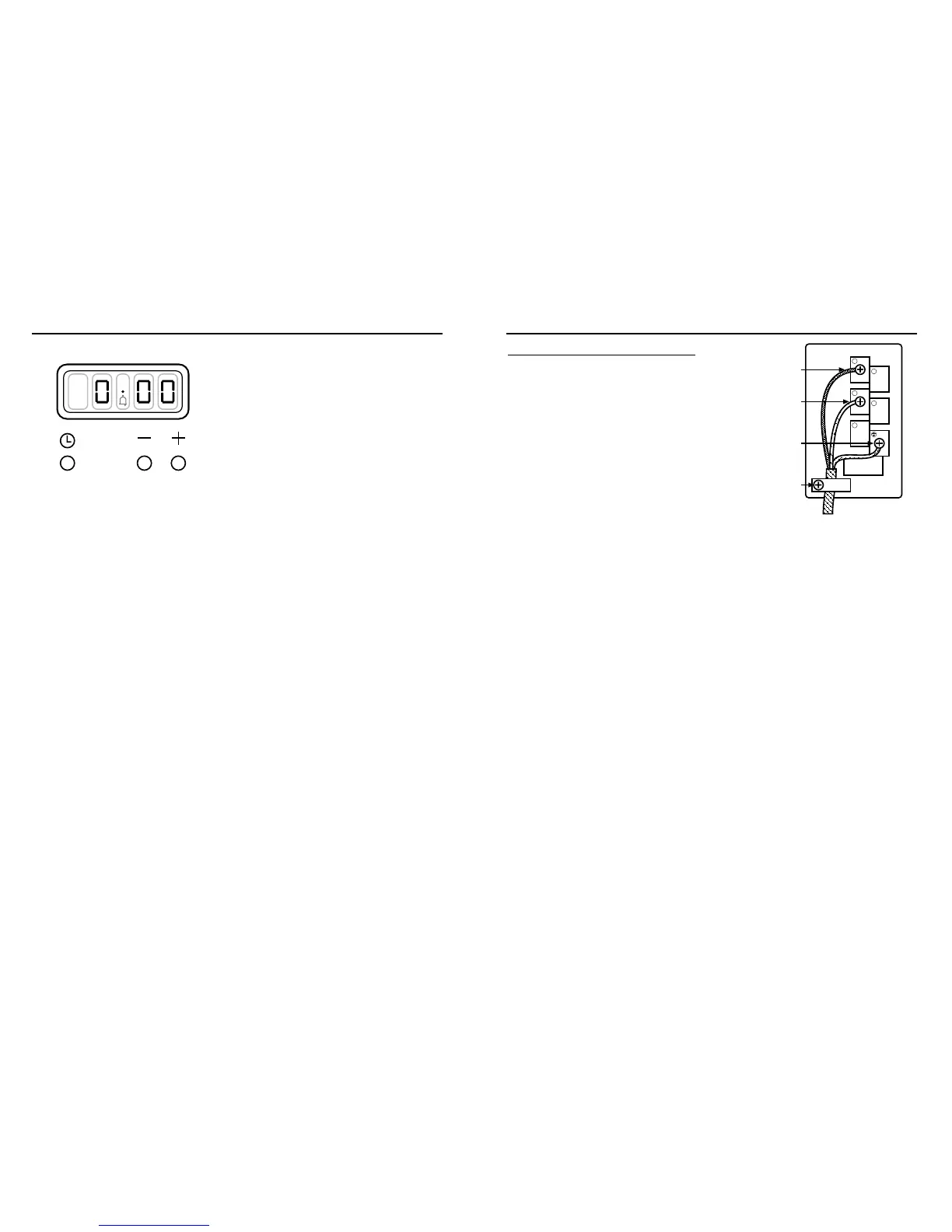

Initial display
The digital timer enables you to set the
time of day (24 hour clock) and the
minute minder alarm.
Setting the “Time of Day”
1. Switch on the electricity supply to
the appliance.
The display will flash.
2. Press and release the time of day
button.
3. Set the time of day with the plus
and minus buttons.
4. The time will be set 7 seconds after
the last plus or minus operation.
Alarm tones
After setting the time of day, you can
select one of three alarm tones.
Press the minus button to listen to the
first tone, then release the minus button
and press it again to listen to the
second tone, etc.
Releasing the minus button after a tone
has sounded will automatically select
that tone.
Setting the minute minder
1. Press and release the plus button
to change the display from clock
to minute minder - the bell symbol
will light.
2. Use the plus and minus buttons to
set the length of time before the
alarm tone will sound. The display
will increase / decrease in units of
10 seconds up to 99 minutes 50
seconds, and in units of 1 minute
from 1 hour 40 minutes upwards.
The maximum period which may
be set is 10 hours.
The display format will change
after 99 minutes and 50 seconds
to 1 hour and 40 minutes.
During countdown, the minute
minder has priority on the display,
which will show (in minutes :
seconds, or hours : minutes) the
time remaining.
When countdown is complete, the
tone will sound for 7 minutes, or it
can be reset with one touch of
any button.
To cancel the minute minder at
any other time, run down the set time
with the minus button.
The display will revert to show the
time of day.
27
Installation Instructions
Connect to the electricity supply
Warning: This appliance must be
earthed.
The appliance must be installed by a
competent electrician using a double
pole control unit of 30 ampere minimum
capacity with 3mm minimum contact
separation at all poles.
We recommend that the appliance is
connected by a qualified electrician
who is a member of the N.I.C.E.I.C.
and who will comply with the I.E.E.
and local regulation.
1. Access to the mains terminal is
gained by opening the terminal
block cover at the rear of the
appliance (use a small flat-bladed
screwdriver).
2. Connection should be made with
suitable twin and earth cable,
minimum 2.5mm
2
which is suitable
for use up to 25 amps.
3. First strip the wires, then push the
cable through the cable clamp in
the terminal block cover.
4. Connect the cable to the terminal
block and tighten the cable clamp
screw (see diagram).
5. Close the terminal box, ensuring
that the cover is engaged on the
locking tabs.
