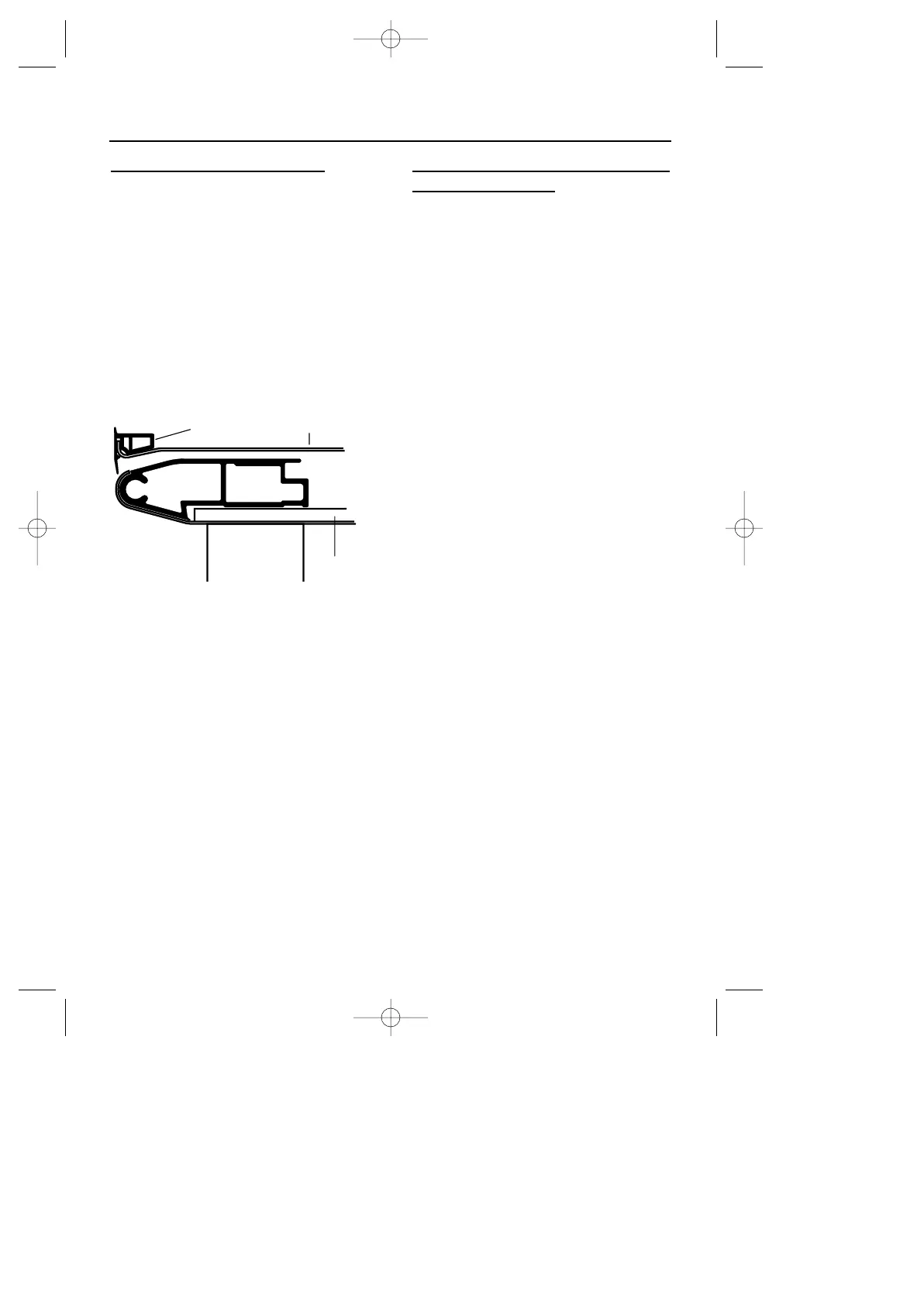

Step 4: Check edging strip
The edging strip is factory fitted to
the front side edges of the appliance
front frame. This strip provides the
cabinetry with extra protection from
any escape of heat.
When installing the product, ensure
that the edging strip is correctly located
on the outer edges of the front frame,
before positioning and securing the
appliance to the cabinet.
When securing the appliance, the
fixing screws provided are driven
through the edging strips into the
cabinet - the seal will straighten up
and sit flush to the cabinet when the
screws are fully home.
Step 5: Insert appliance and
secure in position
Note: The unit housing the appliance
must be appropriately fixed.
Method 1: Care must be taken to
ensure the appliance runners are
sufficiently engaged over the top of the
runners on the base units.
Method 2: Insert appliance into
cabinet - ensure that it is engaged over
the top of the side runners.
Method 3: Insert appliance into cabinet.
To secure:
Make sure the appliance is centrally
located.
Method 1: Open the grill door and
you will see the 2 fixing holes at the
top sides of the front frame. Drill
through the fixing holes into the side
trims with a 3.2mm diameter drill.
Secure the appliance to the side trims
with the 2 remaining No 8 x 12mm
(Silver) self tapping screws.
Methods 2 & 3: Open the grill door
and secure appliance into position
using 2 No 8 x 25mm (Silver) chip-
board screws through the front frame.
25
INSTALLATION INSTRUCTIONS
