15
SDM290(e)(x)

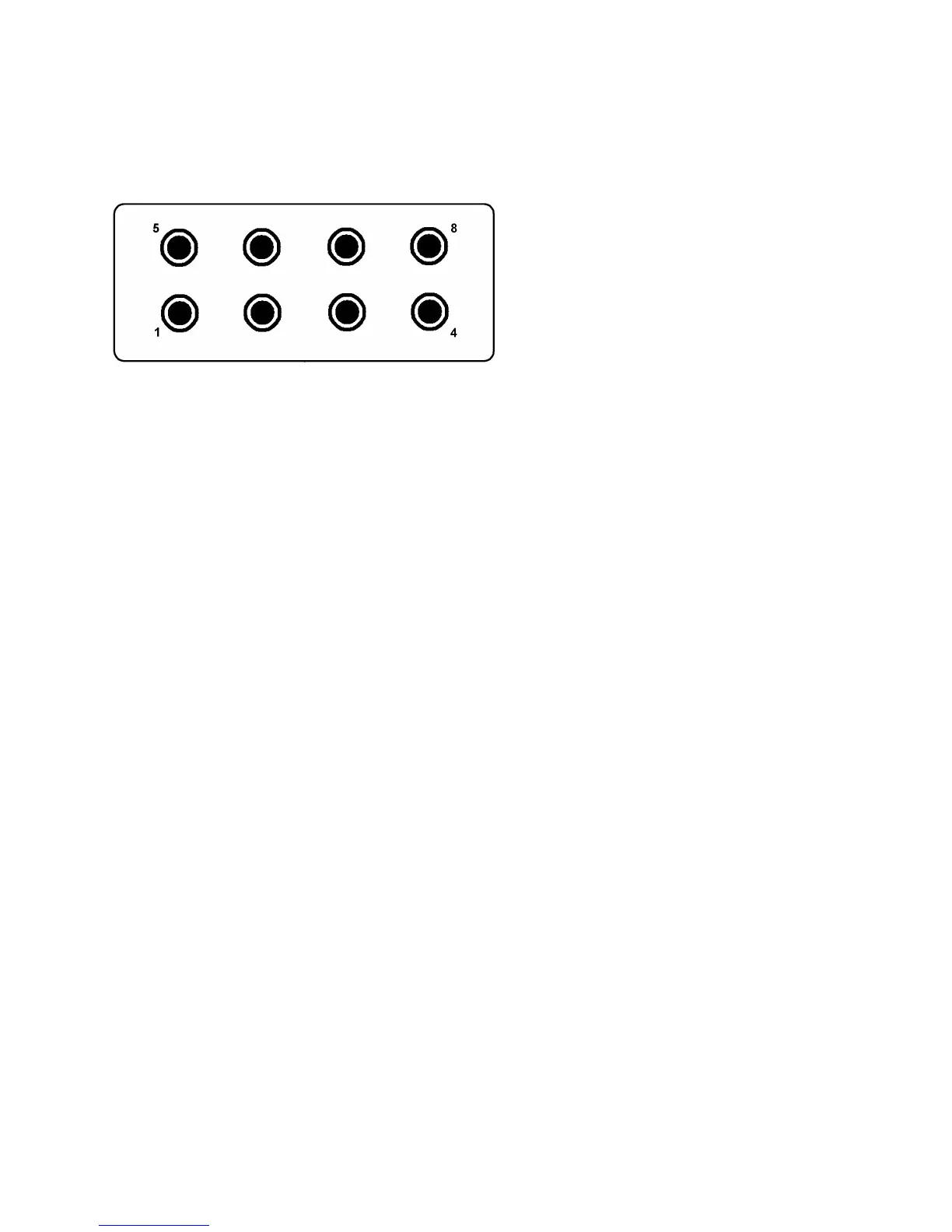

RS422 Connector
PIN 1 Ground
PIN 2 RCV -
PIN 3 XMT +
PIN 4 Ground
PIN 5 Ground
PIN 6 RCV +
PIN 7 XMT -
PIN 8 Ground
