Stradis SDM290e - SDM230 Details; Back Panel and Onboard Connectors

16

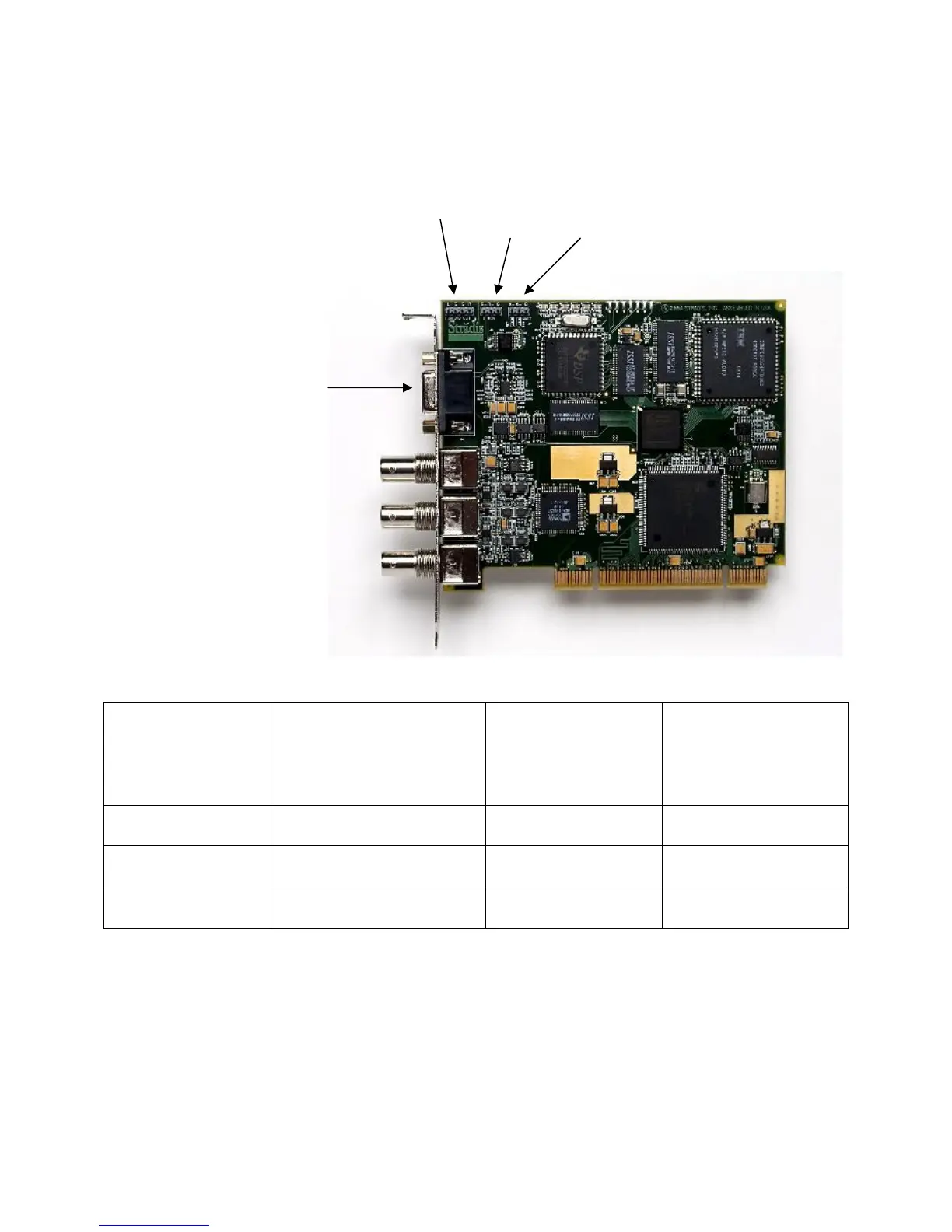

SDM230 Details
Back Panel and Onboard Connectors
J5 J6 J7
Audio SIDI SIDI
Receiver Transmitter
Audio
Connector
(see page 17 for pin outs)
J1 (VideoOutA)
J2 (VideoOutB)
J3 (VideoOutC)
Video Output: software configurable
Composite and S Video
Output
NTSC, NTSC-J or PAL
RGB Component
Output
480I/576I RGB
YPbPr Component
Output
480I/576I YPbPr
VideoOutA Composite G Y
VideoOutB Y B Pb
VideoOutC C R Pr
J5 can be used to feed audio into a PC sound card. It is an unbalanced output.
J6 and J7 are the transmitter and receiver components of the Stradis Inter-Device
Interface (SIDI) and can be used to sync boards together using a proprietary standard.
These two connectors can be used to frame-lock multiple boards together. They can
even be used to lock an SDM230 to SDM260e or any other card that has these
connectors. Future support will be added so that cards can communicate with each
other for synchronization class to run between cards, and over several chassis.
