SDM290(e)(x), SDM280(e)(x), SDM260(e)(x) Details

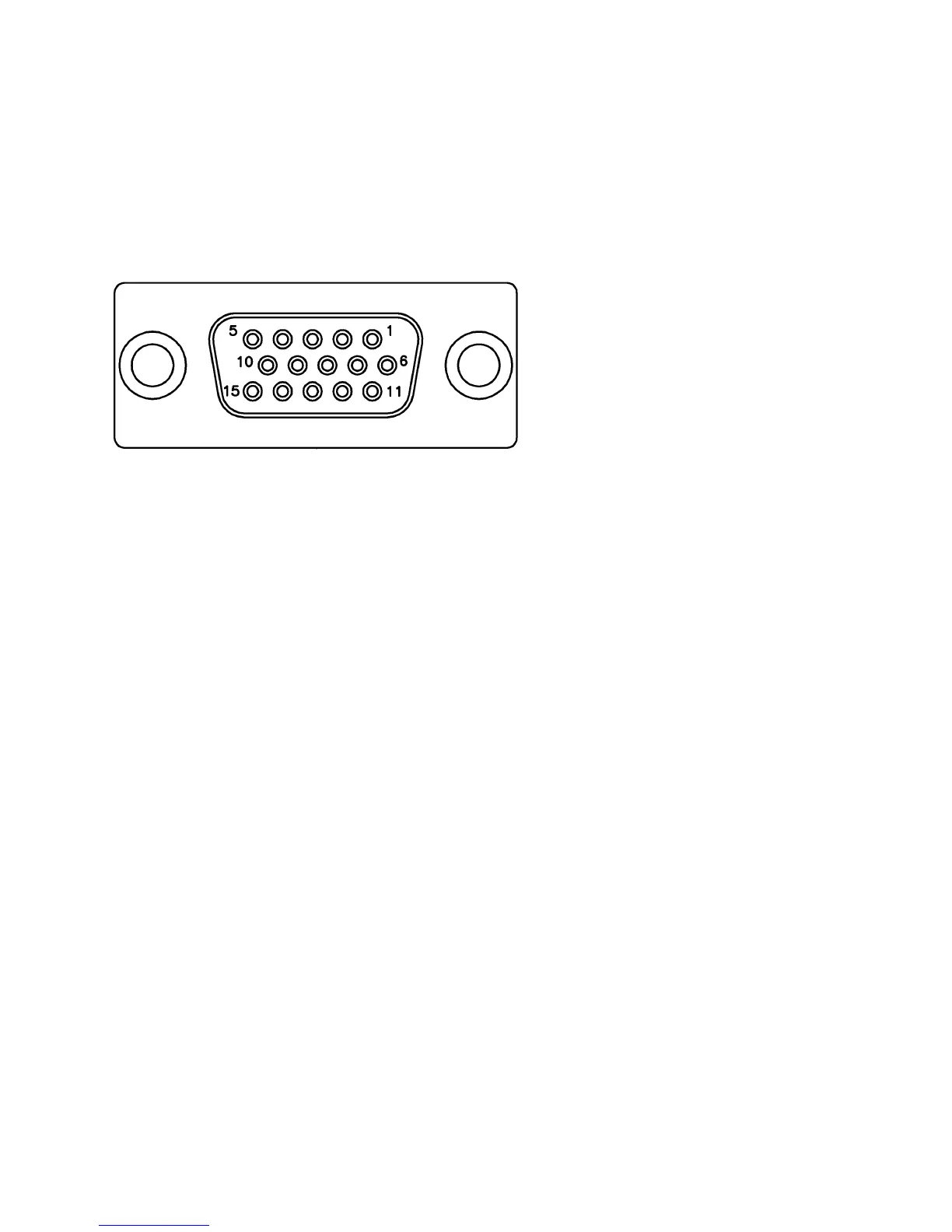

Audio Connector (DB15-HD)
PIN 1 Digital Audio Output 1+ [SDM290(e)(x), 280(e)(x) only]
PIN 2 Analog Ground
PIN 3 Analog Audio Output Left 1+
PIN 4 Analog Audio Output Left 1–
PIN 5 Analog Audio Output Right 1+
PIN 6 Digital Audio Output 1– [SDM290(e)(x), 280(e)(x) only]
PIN 7 Digital Audio Output 2+ [SDM290(e)(x) only]
PIN 8 Analog Ground
PIN 9 Analog Audio Output Right 2+ [SDM290(e)(x) only]
PIN 10 Analog Audio Output Right 1–
PIN 11 Digital Audio Output 2– [SDM290(e)(x) only]
PIN 12 Digital Ground
PIN 13 Analog Audio Output Right 2– [SDM290(e)(x) only]
PIN 14 Analog Audio Output Left 2+ [SDM290(e)(x) only]
PIN 15 Analog Audio Output Left 2– [SDM290(e)(x) only]
