SDM290e(x), SDM280e(x), & SDM260e(x) Details

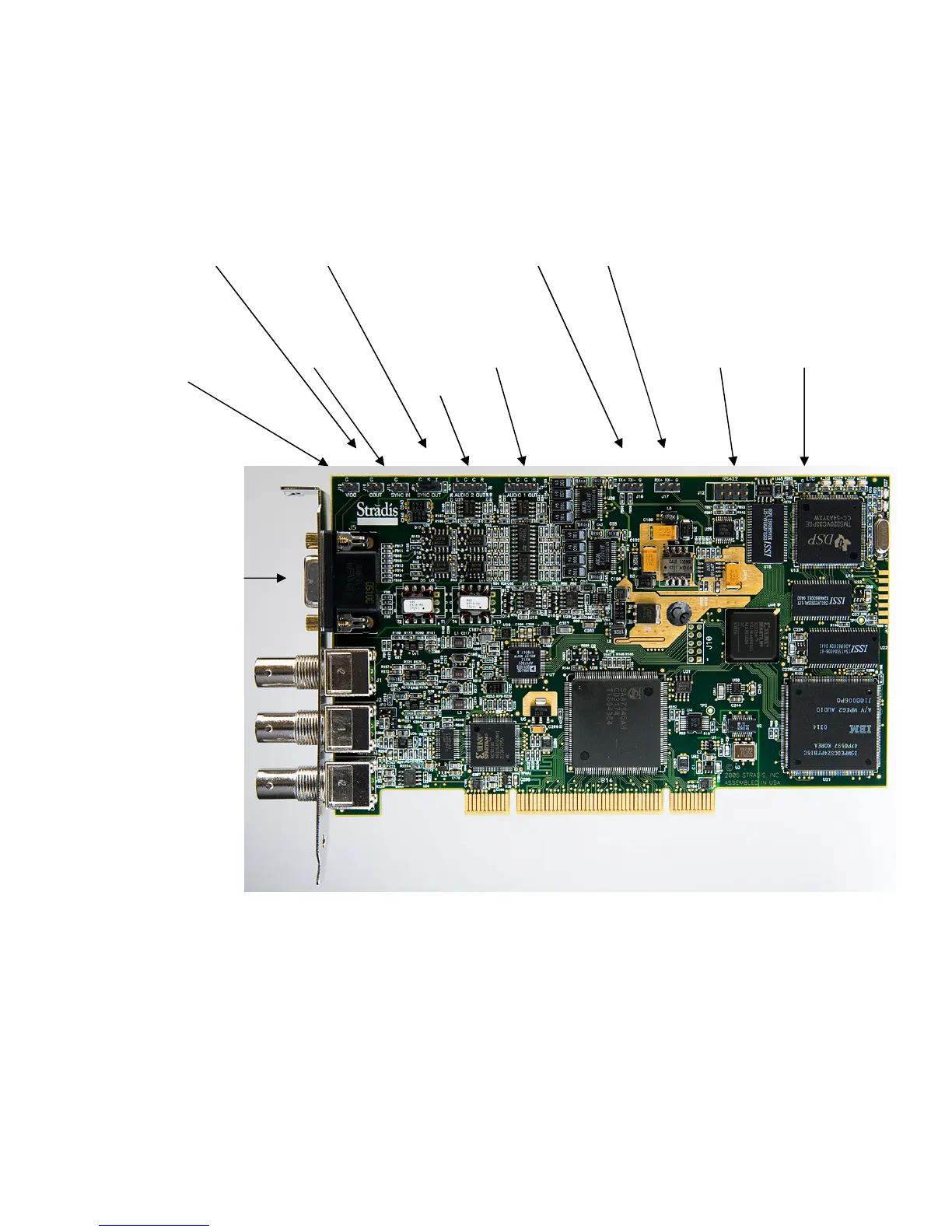

Back Panel and Onboard Connectors

J16 JP1 J18 J17

Buffered Sync Out SIDI SIDI

VideoOutA & 75Ω Term. Receiver Transmitter

(SDM290 only) (SDM290 only)

J19 J11 J8 J7 J12 J13

VideoOutC Sync Audio 2 Out Audio 1 RS-422 Linear Time

Output In (SDM290e(x)) Out (SDM290e(x)) Code

Output

SDM290e(x)/SDM280e(x)

Audio

Connector

(see page 14 for pin

outs)

J1 (VideoOutA)

J2 (VideoOutB)

290e(x)/ 260e(x)

J3 (SDI/VideoOutC)

Genlock Option

J2 on SDM290e(x), 280e(x) and 260e(x) can be optionally configured to provide video

output (VideoOutB) or serve as genlock input, depending on the JP2 jumper. If the

jumper is located at the top, VideoOutB is output on J2. If the jumper is located at the

bottom, J2 is used for genlock input. This is the same JP2 jumper functionality as on

the SDM290, 280, or 260 except that the orientation of the jumper is rotated. The

factory default is set to genlock in.
