17

SDM230

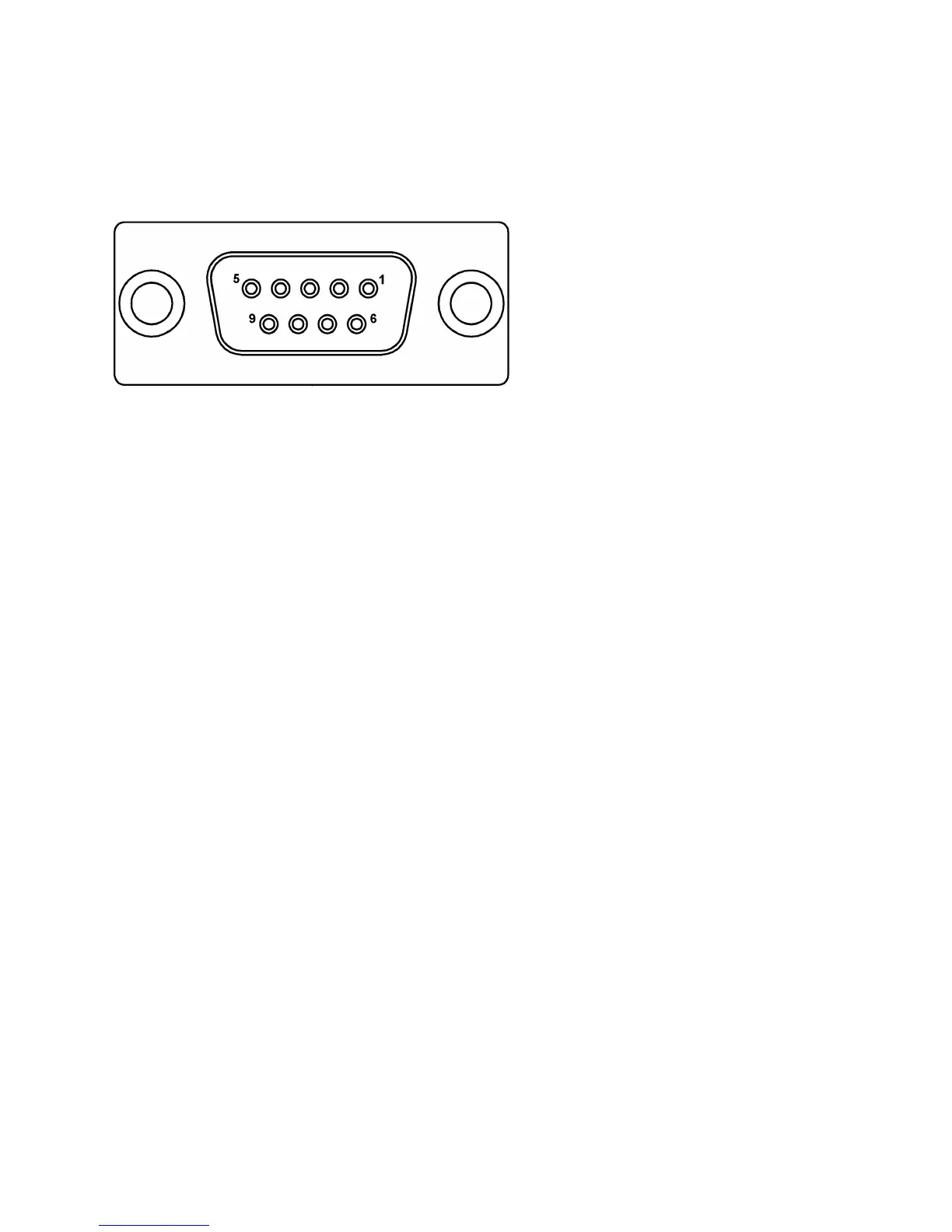

Audio Connector (DB9)

PIN 1 S/P-DIF Digital Audio Output

PIN 2 No Connection

PIN 3 No Connection

PIN 4 Analog Ground

PIN 5 Left Analog Audio Output

PIN 6 Digital Ground

PIN 7 No Connection

PIN 8 Analog Ground

PIN 9 Right Analog Audio Output
