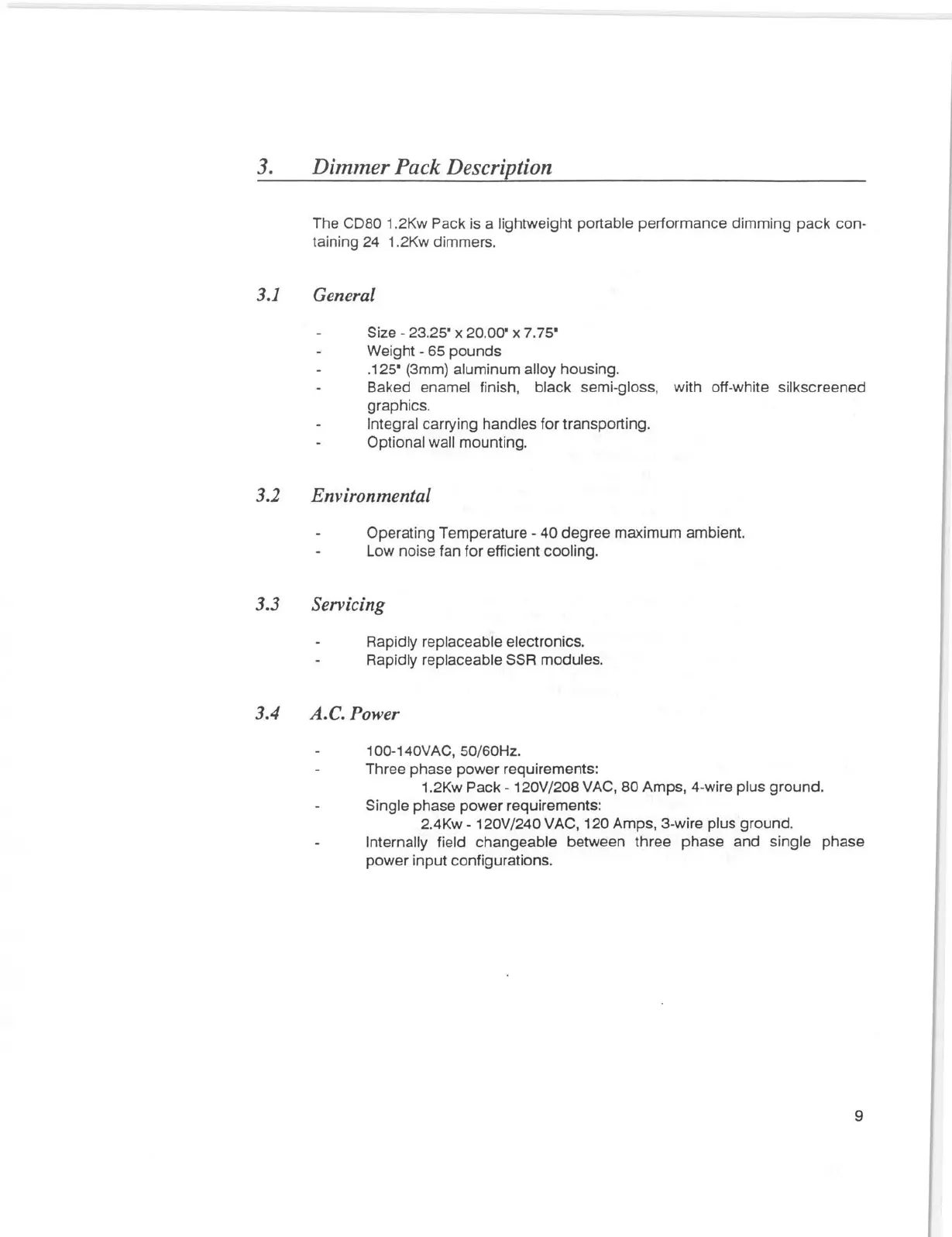

3.
Dimmer Pack Description
The COBO 1.2Kw Pack is a lightweight portable performance dimming pack con-
taining 24 1.2Kw dimmers .
3.1 General
Size - 23.25" x 20.00' x 7.75'
Weight - 65 pounds
.125' (3mm) aluminum alloy housing.
Baked enamel finish, black semi-gloss, with off-white silkscreened
graphics .
Integral carrying handles for transporting.
Optional wall mounting .
3.2 Environmental
Operating Temperature - 40 degree maximum ambient.
Low noise fan for efficient cooling.
3.3 Servicing
Rapidly replaceable electronics.
Rapidly replaceable SSA modules.
3.4 A.C. Power
100-140VAC, 50/60Hz.
Three phase power requirements:
1.2Kw Pack - 120V/208 VAC, 80 Amps, 4-wire plus ground.
Single phase power requirements:
2.4Kw - 120V/240
VAC, 120 Amps, 3-wire plus ground.
Internally field changeable between three phase and single phase
power input configurations.
9
