Strand Lighting CD80 - Analog 1.2 Kw Pack Hookup to Non-Strand Analog Console

CUSTOM
INTERFACE
BOX
4
- COBO 1.2Kw Packs with Analog Option
(96 dimmer system)
>------- Custom cable to mate with other
-
CONSOLE
(ANALOG)
manufacturer's console as
specified by customer.

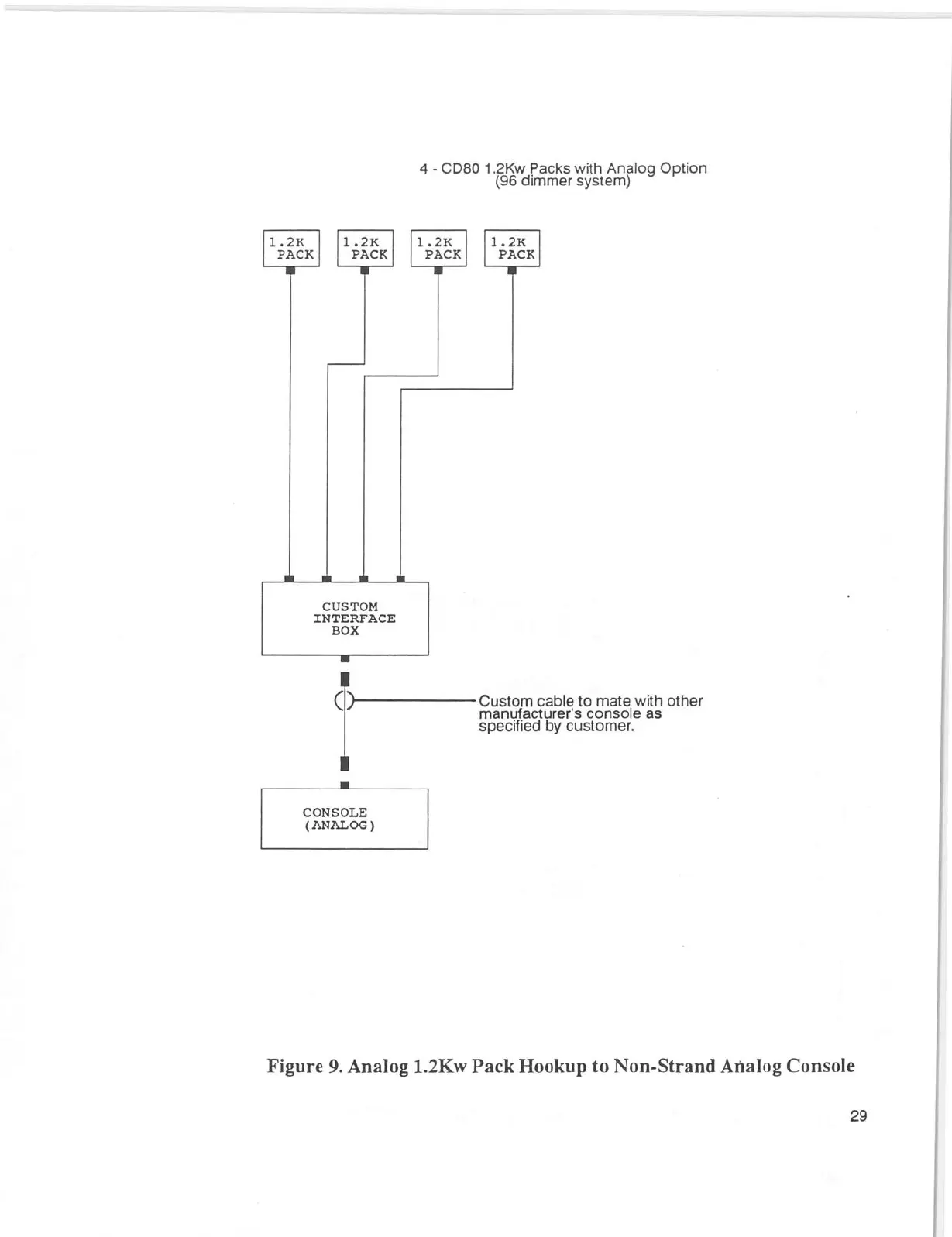

Figure 9. Analog 1.2Kw Pack Hookup to Non-Strand Analog Console
29
