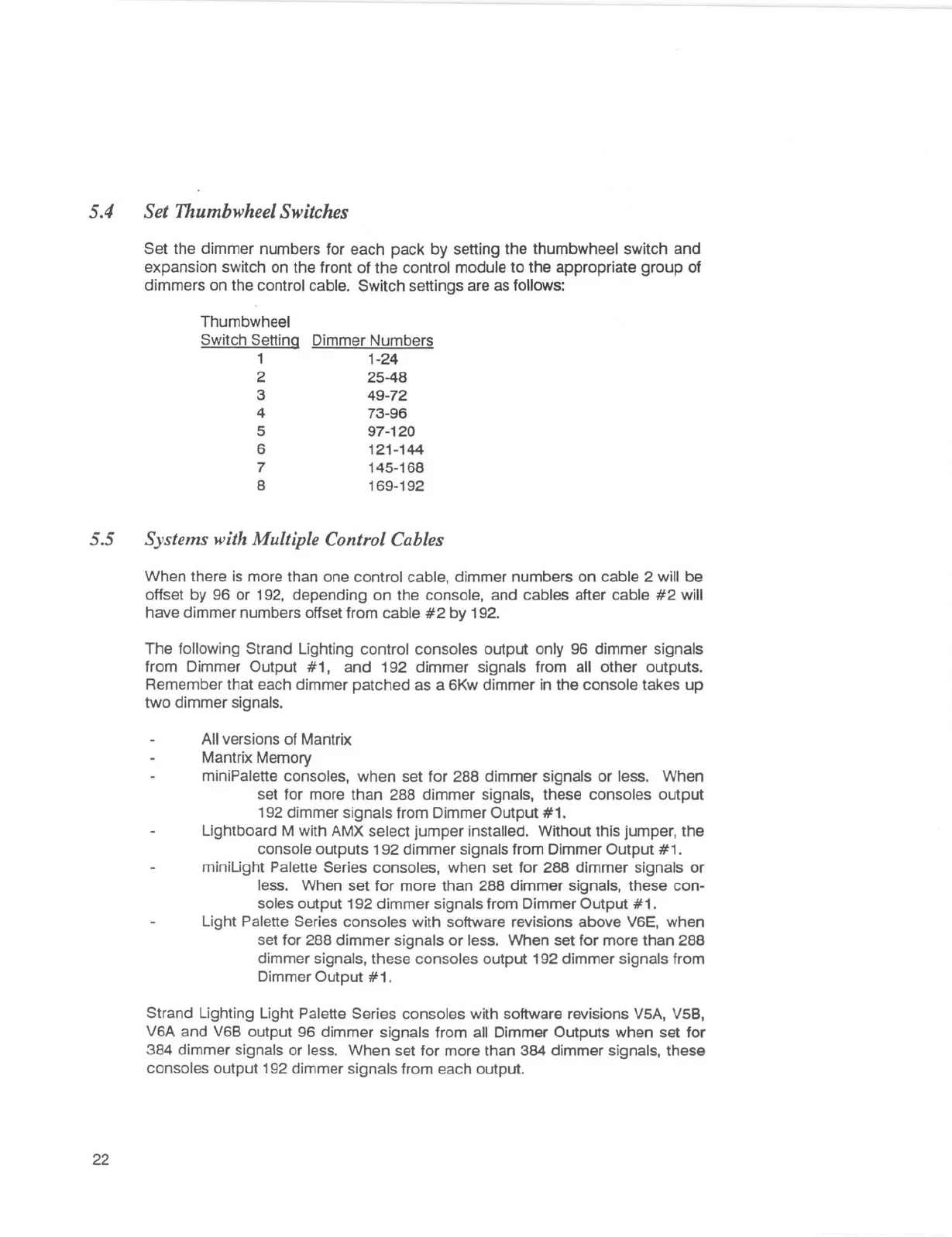

5.4 Set Thumbwheel Switches
Set the dimmer numbers for each pack by setting the thumbwheel switch and
expansion switch on the front of the control module to the appropriate group of
dimmers on the control cable. Switch settings are as follows:
Thumbwheel
Switch Setting
1
2
3
4
5
6
7
8
Dimmer Numbers
1-24
25-48
49-72
73-96
97-120
121-144
145-168
169-192
5.5 Systems with Multiple Control Cables
22
When there is more than one control cable, dimmer numbers on cable 2 will be
offset by 96 or 192, depending on the console, and cables after cable #2 will
have dimmer numbers offset from cable #2 by 192.
The following Strand Lighting control consoles output only 96 dimmer signals
from Dimmer Output #1, and 192 dimmer signals from all other outputs.
Remember that each dimmer patched as a 6Kw dimmer in the console takes up
two dimmer signals.
All versions of Mantrix
Mantrix Memory
miniPalette consoles, when set for 288 dimmer signals or less. When
set for more than 288 dimmer signals, these consoles output
192 dimmer signals from Dimmer Output
#1.
Lightboard M with AMX select jumper installed. Without this jumper, the
console outputs 192 dimmer signals from Dimmer Output #1.
minilight Palette Series consoles, when set for 288 dimmer signals or
less. When set for more than 288 dimmer signals, these con-
soles output 192 dimmer signals from Dimmer Output #1.
Light Palette Series consoles with software revisions above V6E, when
set for 288 dimmer signals or less. When set for more than 288
dimmer signals, these consoles output 192 dimmer signals from
Dimmer Output #1.
Strand Lighting Light Palette Series consoles with software revisions V5A, V5B,
V6A and V6B output 96 dimmer signals from all Dimmer Outputs when set for
384 dimmer signals or less. When set for more than 384 dimmer signals, these
consoles output 192 dimmer signals from each output.
