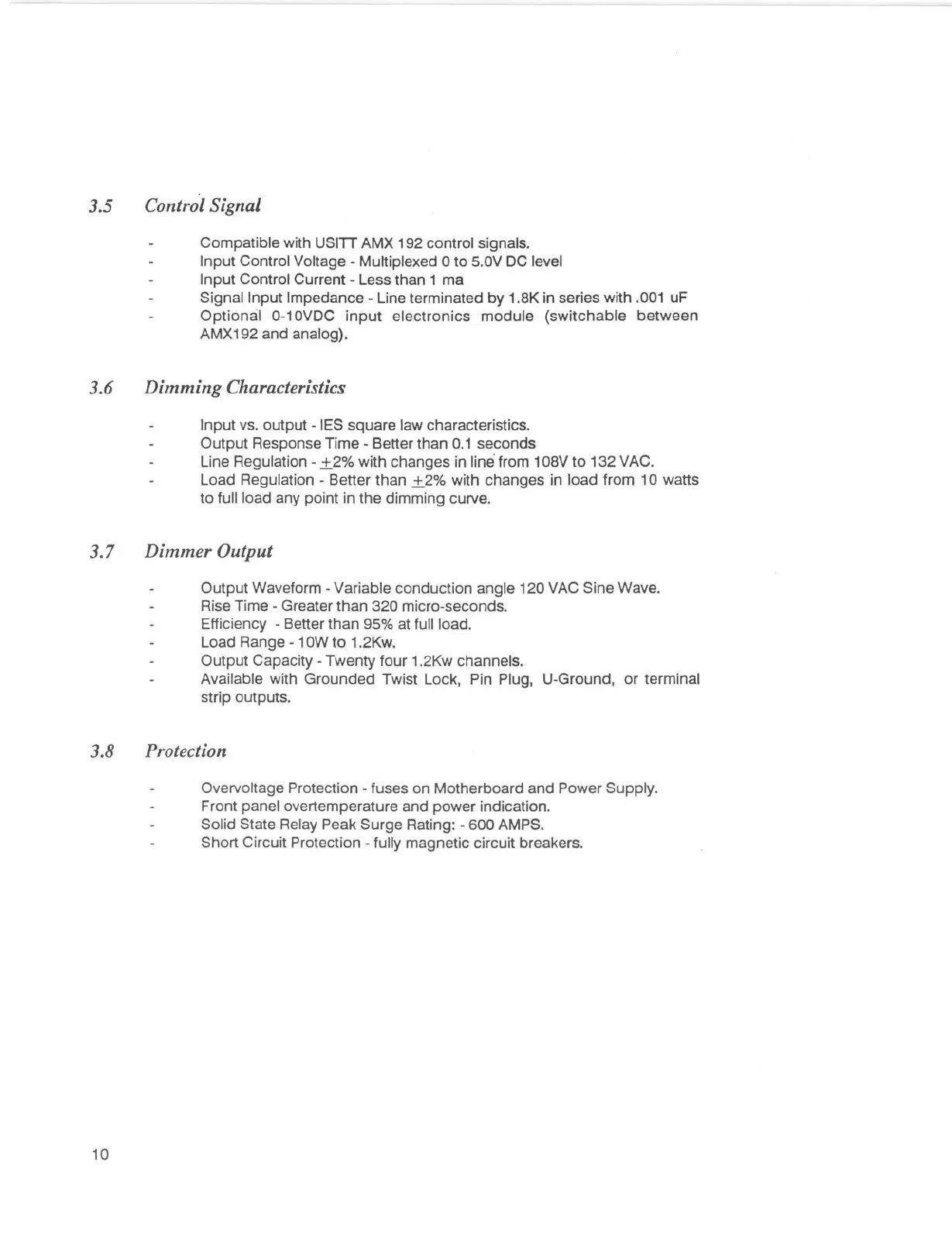

3.5 Control Signal
Compatible with USITT AMX 192 control signals.
Input Control Voltage - Multiplexed Oto 5.0V DC level
Input Control Current - Less than
1 ma
Signal Input Impedance - Line terminated by 1.8K in series with .001 uF
Optional 0-1 0VDC input electronics module (switchable between
AMX192 and analog).
3.6 Dimming Characteristics
Input vs. output - IES square law characteristics.
Output Response Time - Better than 0.1 seconds
Line Regulation - + 2% with changes in line from 1 oav to 132 VAC.
Load Regulation - Better than +2% with changes in load from 10 watts
to full load any point in the dimming curve.
3.7 Dimmer Output
Output Waveform -Variable conduction angle 120 VAC Sine Wave.
Rise Time - Greater than 320 micro-seconds.
Efficiency - Better than 95% at full load.
Load Range -
1 ow to 1.2Kw.
Output Capacity - Twenty four 1.2Kw channels.
Available with Grounded Twist Lock, Pin Plug, U-Ground, or terminal
strip outputs.
3.8 Protection
10
Overvoltage Protection - fuses on Motherboard and Power Supply.
Front panel overtemperature and power indication.
Solid State Relay Peak Surge Rating: - 600 AMPS.
Short Circuit Protection - fully magnetic circuit breakers.
