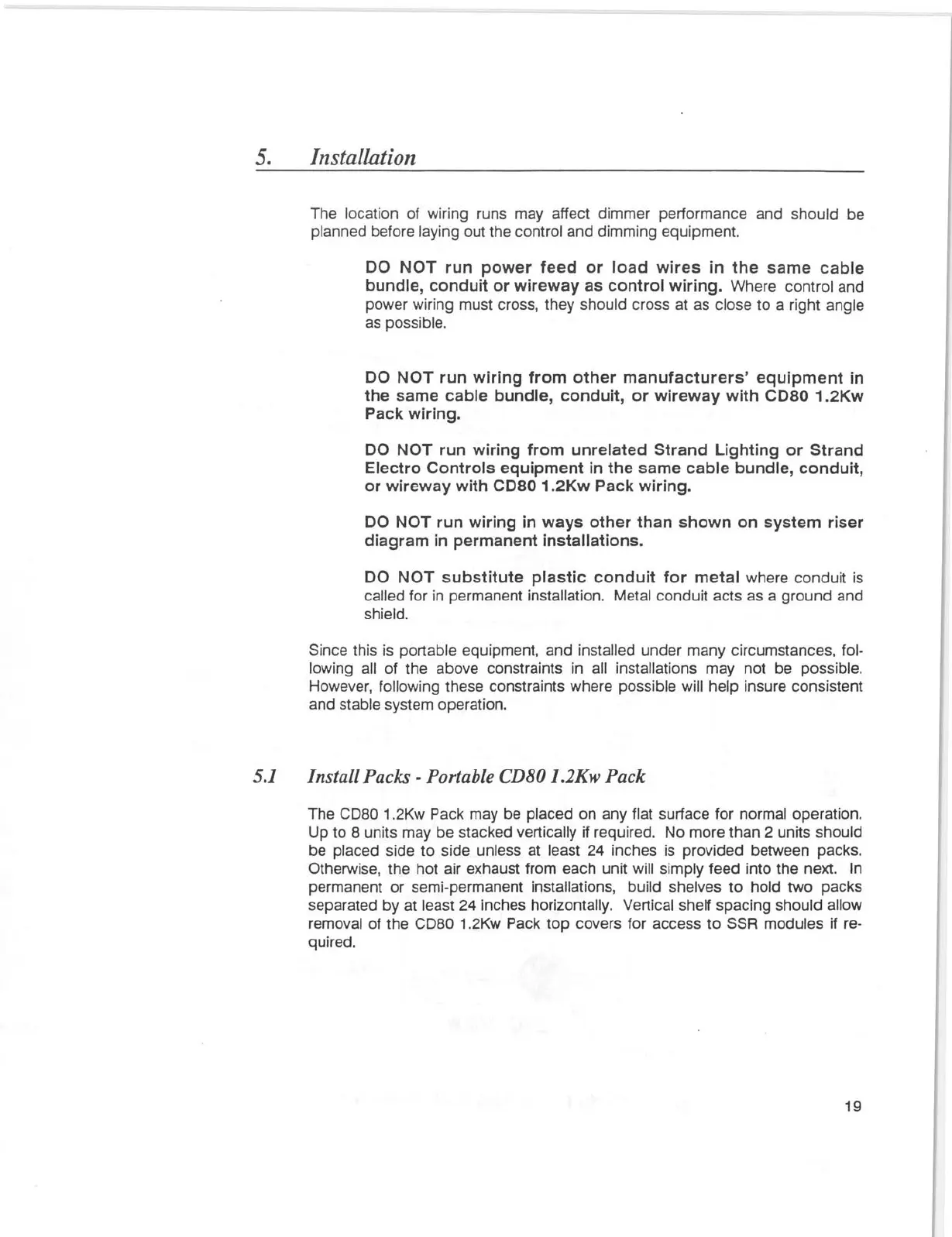

5. Installation
The location of wiring runs may affect dimmer performance and should be
planned before laying out the control and dimming equipment.
DO NOT run power feed or load wires in the same cable
bundle, conduit or wireway as control wiring. Where control and
power wiring must cross, they should cross at as close to a right angle
as possible.
DO NOT run wiring from other manufacturers' equipment in
the same cable bundle, conduit, or wireway with CDS0 1.2Kw
Pack wiring.
DO NOT run wiring from unrelated Strand Lighting or Strand
Electro Controls equipment in the same cable bundle, conduit,
or wireway with CD80 1.2Kw Pack wiring.
DO NOT run wiring in ways other than shown on system riser
diagram in permanent installations.
DO NOT substitute plastic conduit for metal where conduit is
called for in permanent installation. Metal conduit acts as a ground and
shield.
Since this is portable equipment, and installed under many circumstances, fol-
lowing all of the above constraints in all installations may not be possible.
However, following these constraints where possible will help insure consistent
and stable system operation.
5.1 Install Packs - Portable CD80 J .2Kw Pack
The CD80 1.2Kw Pack may be placed on any flat surface for normal operation.
Up to 8 units may be stacked vertically if required. No more than 2 units should
be placed side to side unless at least 24 inches is provided between packs.
Otherwise, the hot air exhaust from each unit will simply feed into the next. In
permanent or semi-permanent installations, build shelves to hold two packs
separated by at least 24 inches horizontally. Vertical shelf spacing should allow
removal of the CDBO 1.2Kw Pack top covers for access to SSR modules if re-
quired.
19
