Strapack RQ-8Y - Feed and Reverse Mechanism Adjustments

WARNING
Do not touch the V-belt while in operation, or your hand may be injured.
Before performing any maintenance, Lock the stop switch, turn OFF
the power switch, and disconnect the power.
● Feed and Reverse Mechanism
1. Ad
j
ustment the forward
p
ressure
ａ． To increase the pressure (View ”Ａ”)
Loosen the lock nut ① and turn the reverse spring adjuster ② counterclockwise.
(Increase spring pressure ③)
ｂ． To reduce the pressure (View ”Ａ”)
Loosen the lock nut ① and turn the reverse spring adjuster ② clockwise.
(Decrease spring pressure ③)
2. Ad
j
ustment the reverse
p
ressure
ａ． To increase the pressure
Pull the pin ④ and turn the reverse spring adjuster ⑤ clockwise.
(Increase the reverse spring pressure ⑥)
ｂ． To reduce the pressure
Pull the Pin ④ and turn the reverse spring adjuster ⑤ counterclockwise.
(Decrease the reverse spring pressure ⑥)

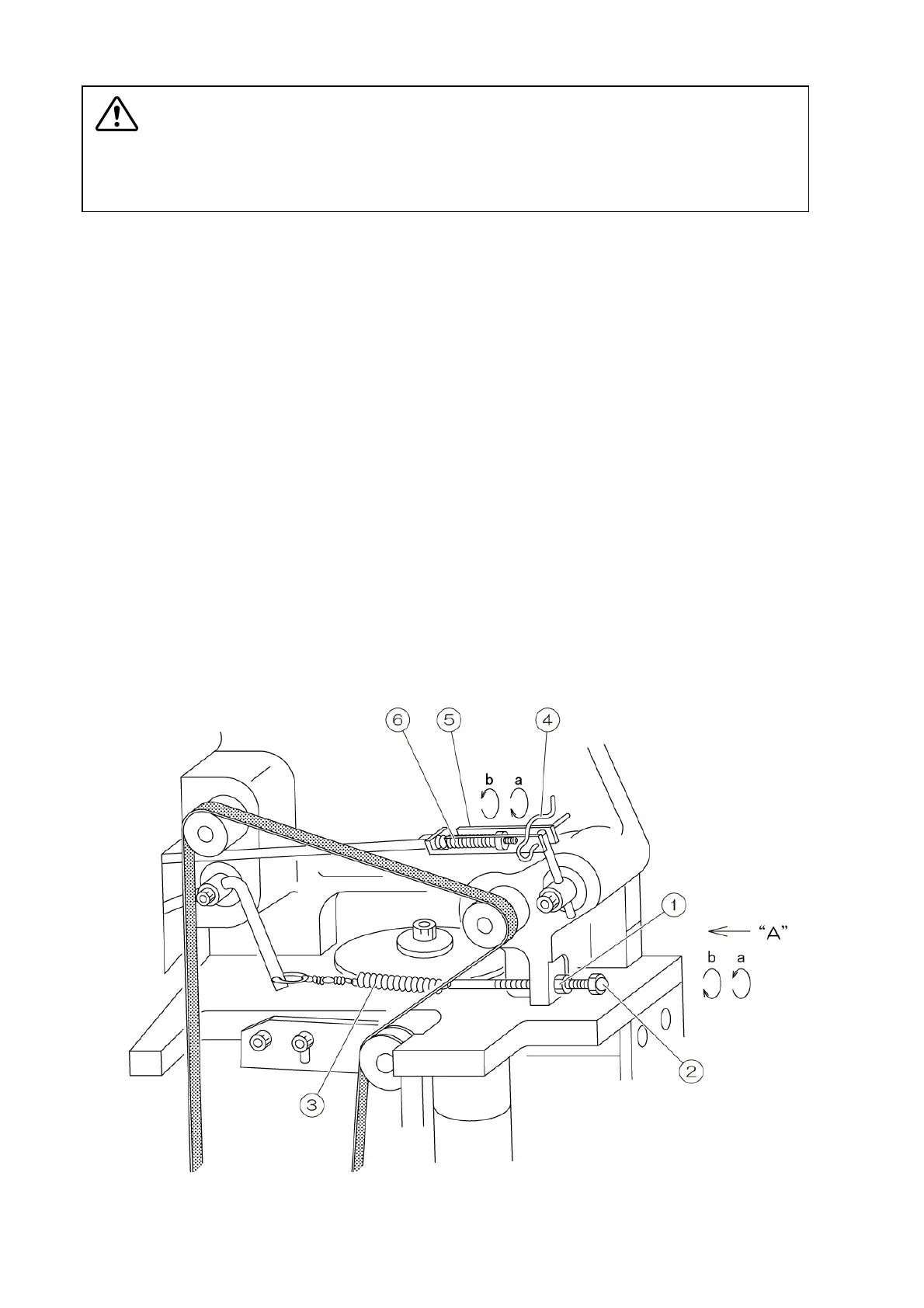

Fig. 10
－１３－
