Location and Function of Units

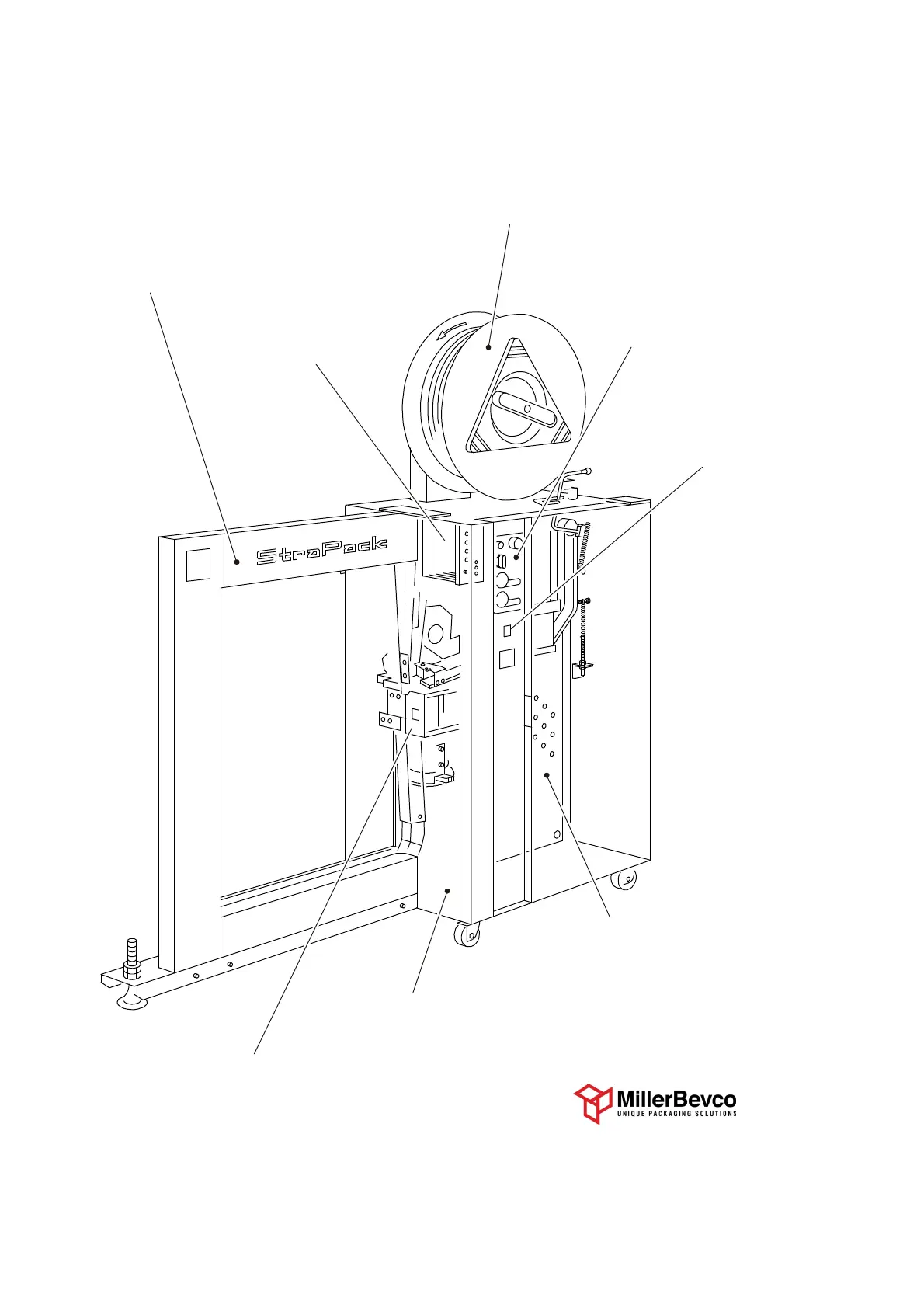

Fig. 1
Arch Unit
This is the arch track through
which strap forwards and
reverses.
Control Group
Contains timers, fuses,
I.C. Boards, etc.
Power Supply Switch
Electric Group
Includes motors, transformer.
switches, etc.
Reel Uni
t
Dispenses strap.
Body Unit
Comprises machine frame,
castors, upper tables, etc.
Pool Unit
Pools strap for smooth
forwarding through arch track.
Sealing Unit
This part of the mechanism
cuts and seals strap.
－3－
