25
13. TECHNICAL DATA
Technical data
Model designation: CARES
®
Scan CS2
Connections: USB 2.0 High-speed/power supply
Power: 100–240 V AC 50–60 Hz
Power Input max.: 900 mA
Laser protection class: Class 1, 1M
IP protection: IP20
– 10 moving axes for scanning dental preparations by
means of laser light sectional method
Scan time
Single die: 25– 45 sec. (Smartscan)
Jaw model: 20– 90 sec. (Smartscan)
Scan method: Automated scanning of dies and
jaw models by multiple
scanning angles. 35°– 75°
Additional Information
Weight: 15.2 kg
Degree of pollution: Degree of pollution 2:
Laboratory environment
Altitude: Recommended altitude below
2’000 m, 6’600 ft
Environment: Recommended temperature
15°–35 °C, 59– 95 ° F,
humidity (5°– 60°)
Theo. Measuring field Width: 16 mm
Height: 42 mm
Max. die height 22.3 mm
Max. jaw height 30 mm (preparation share)
Laser classification 1M
Measuring tolerance ± 10 µm (pot object)

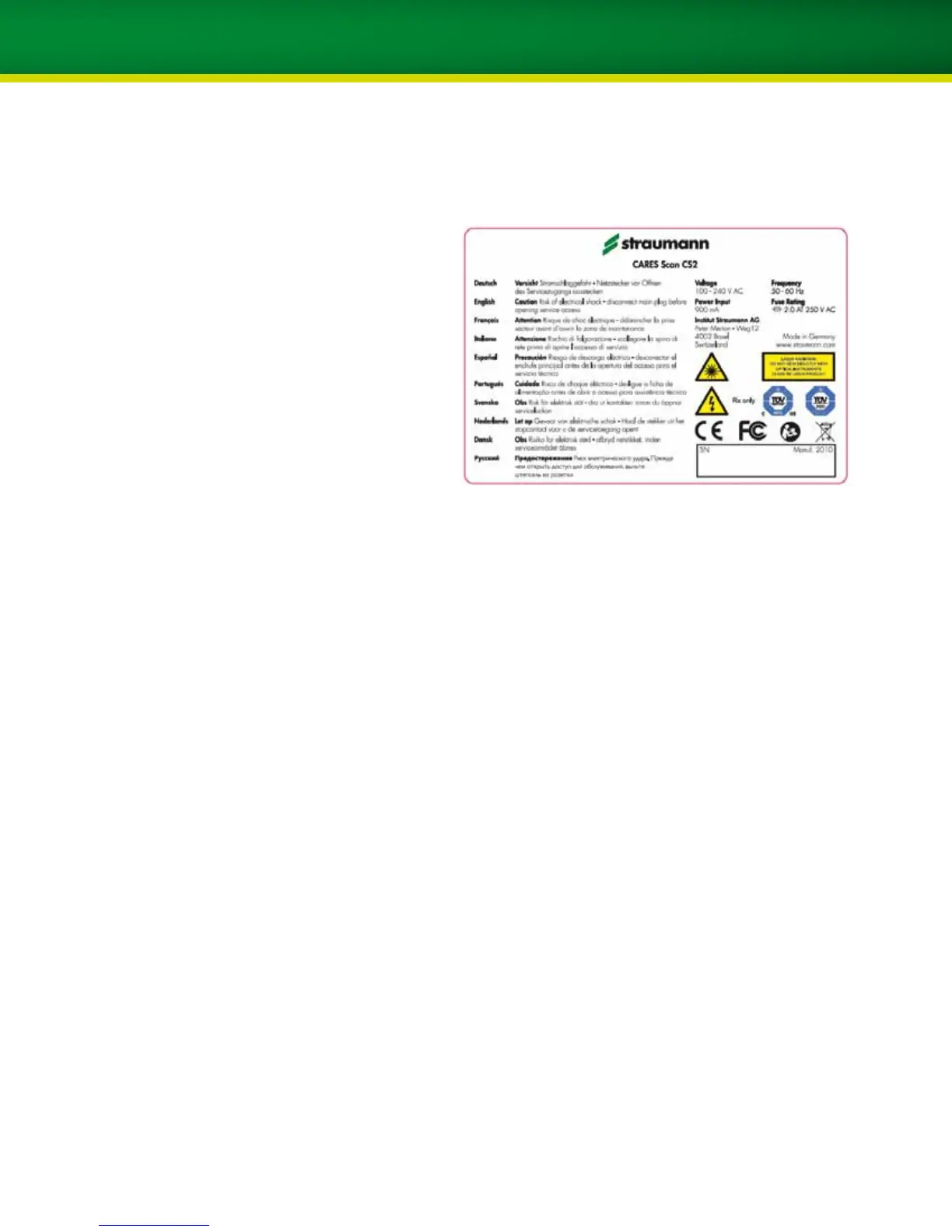

Structure of the serial number
SN= ABBBBCCCC:
A = Scanner generation
B = Year of manufacturing
C = Number
The serial number 220101001 means: 2
nd
generation
scanner, manufactured in 2010, as scanner number 1001
Tested according to IEC 60825-1 (TÜV), Standard: 2007
