Remedying Faults in PP 1207–Klöckner Möller
Remedying faults PP 1207
page 24 –April 2005

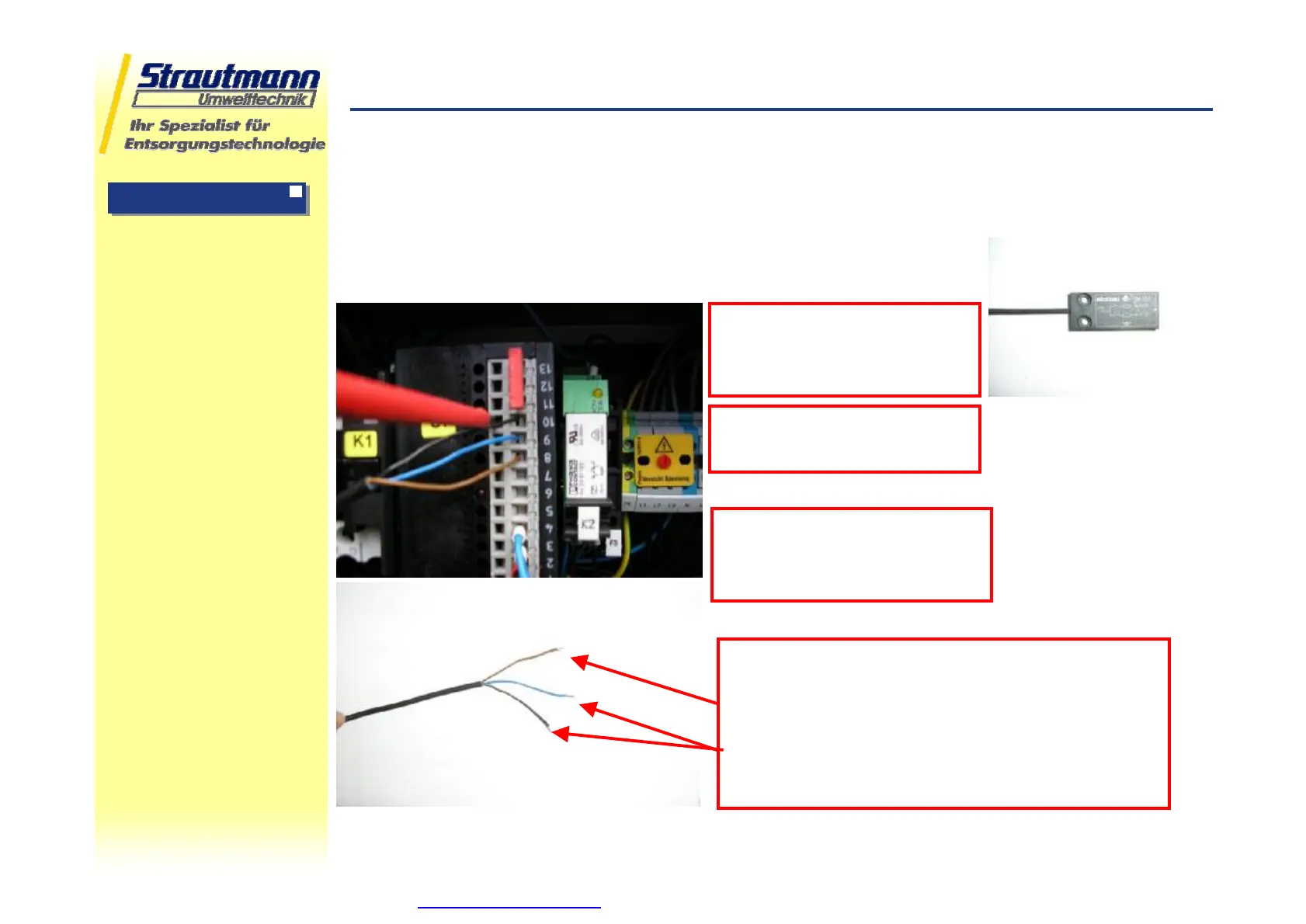

C. If magnetic switch is properly adjusted and still
does not work, it must be tested as follows.
Remove connection
cable from the terminals
with a screwdriver.
Ensure that the sensor is
correctly adjusted
If a connection has no
function, sensor is faulty
and must be replaced
Apply continuity tester as follows
Brown: input side
Blue: output 1, Black: output 2; both
normally open, and closed when switch is
engaged (see mimic diagram on the switch)
2.3 Machine does not start
C. Magnetic switch misaligned or faulty
