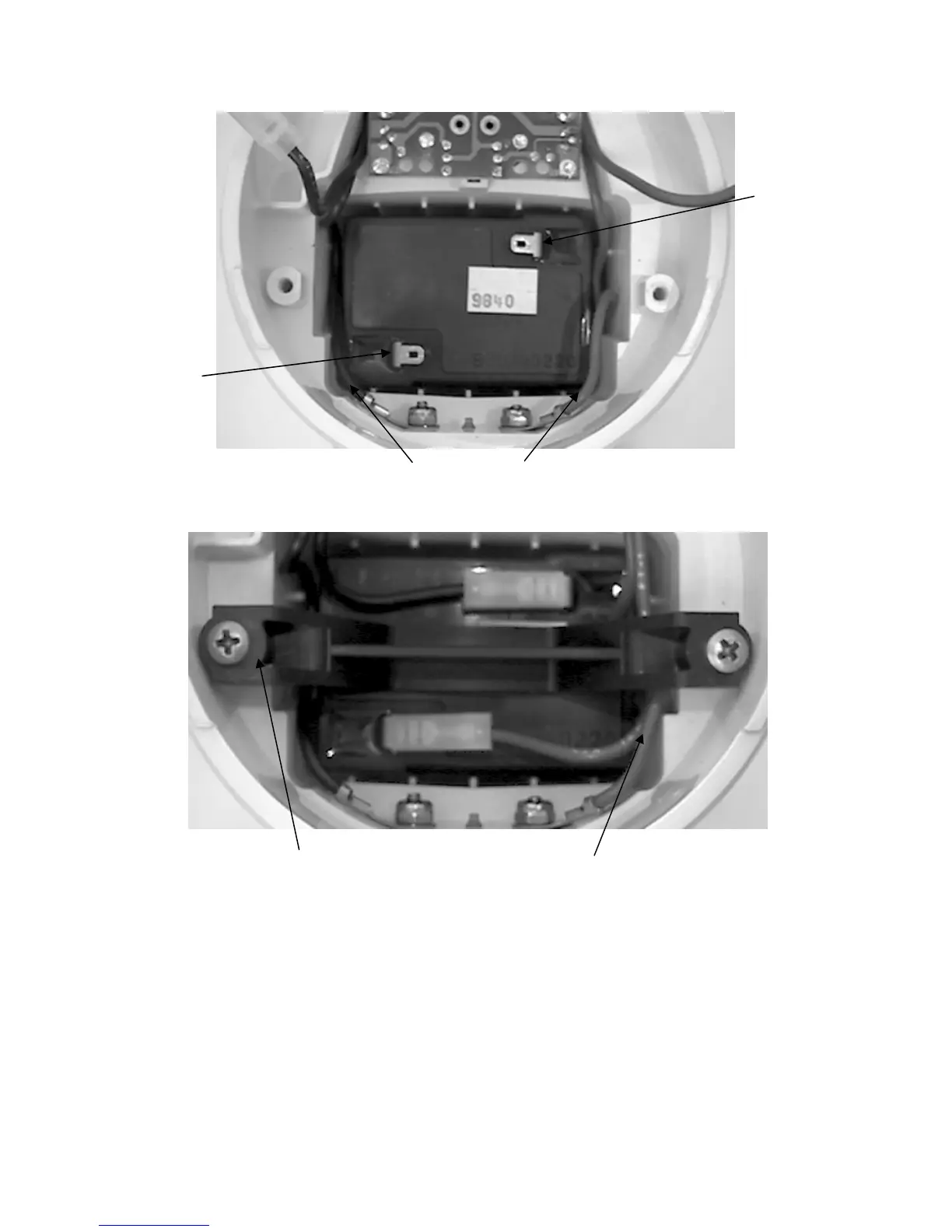

Charge Leads
(+)(–)
Positive
Terminal
Negative
Terminal
Battery Clamp Positive Charge and Battery Leads.
3. Replace the battery clamp, routing the positive (red) charge and battery leads
between the body and the clamp.
4. Secure the clamp to the body with the Phillips head screws.
5. Replace the reflector/lens assembly and reassemble the Vulcan as described in
Section I.
- 11 -
