F. Inspect the ends of the contact to insure that they are not touching the pads on the
PCB. The ends should be about 1/32” above the board.
Note: There is a somewhat critical relationship between the ends of the contact, the bends
in the contact, and the circuit board. The switch actuator presses against the contact at the
spot where you bend it upward. The ends of the fingers are pressed down against the
PCB. If the ends of the fingers are too high, or the contact bend is too low, the lamp will
not turn on. If the ends are set too low, they may fatigue over time and not turn off.
If you are unable to obtain proper operation by adjusting the contacts, you will need to
replace the entire Vulcan Body/Switch assembly.

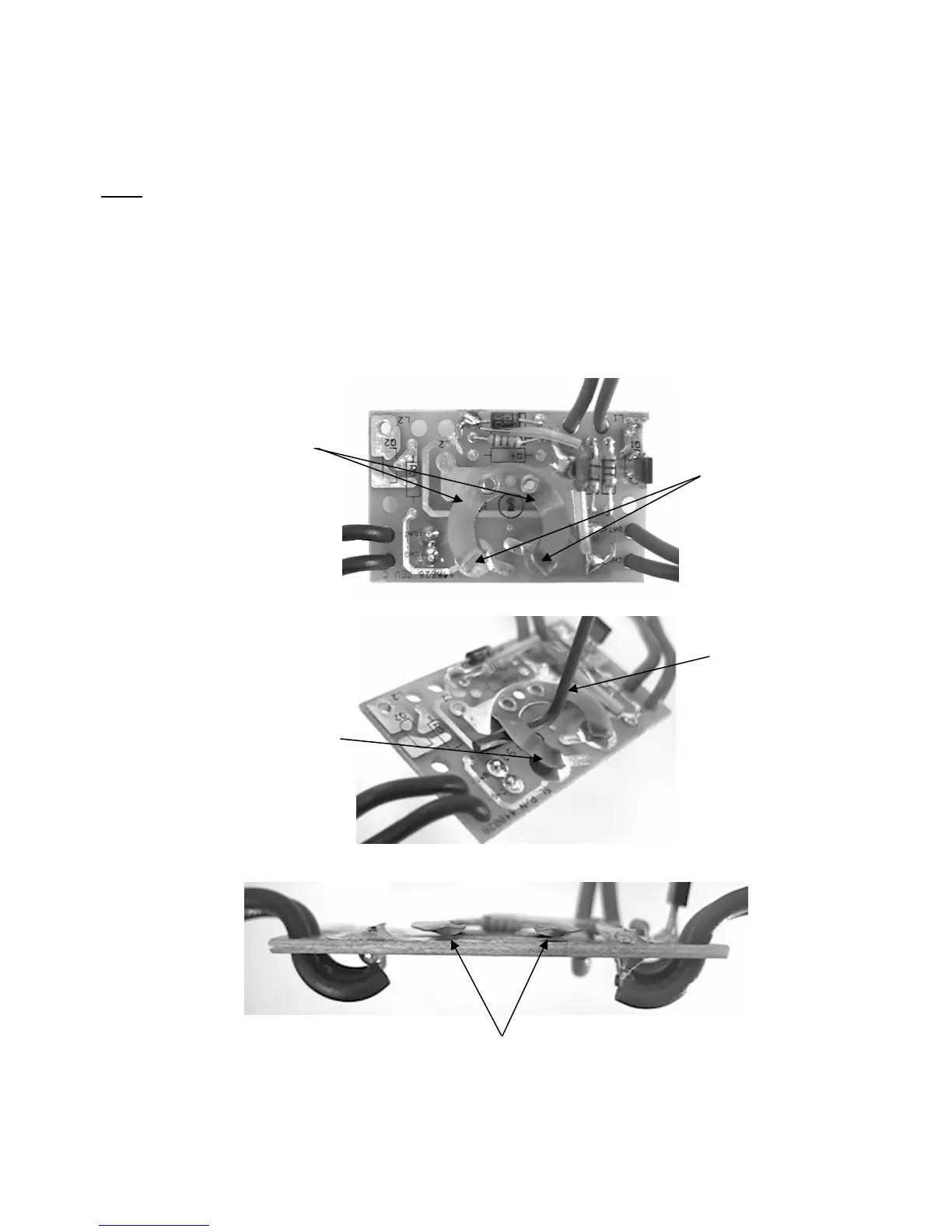

Insert short end of
1/16 Allen wrench
under contact here.
Hold the end of
the contact down
while “bending” it.
Allen wrench
Hold the end of
the contact down
while “bending” it.
Ends of the contact should be
about 1/32” above the PCB.
- 19 -
