Pressure sensors Pressure sensors
The pressure sensors (Fig. 13) of STREETEC autoleveling
are extremely robust sensors for the automotive sector and
are designed for a pressure range from 0 to 16 bar. They have
a G1/4“ thread and are equipped with a seal so that they can
be installed without additional sealant. (Fig. 13)
5 pressure sensors are supplied with the STREETEC
autoleveling:
• 4 Sensors for the pressures in the air bellows
• 1 Sensor for tank pressure
We do not recommend mounting in the supply line and should only be done in
exceptional cases. The T-ttings for mounting would have to be purchased
separately in this case. (Part number: see component list page 68-69)

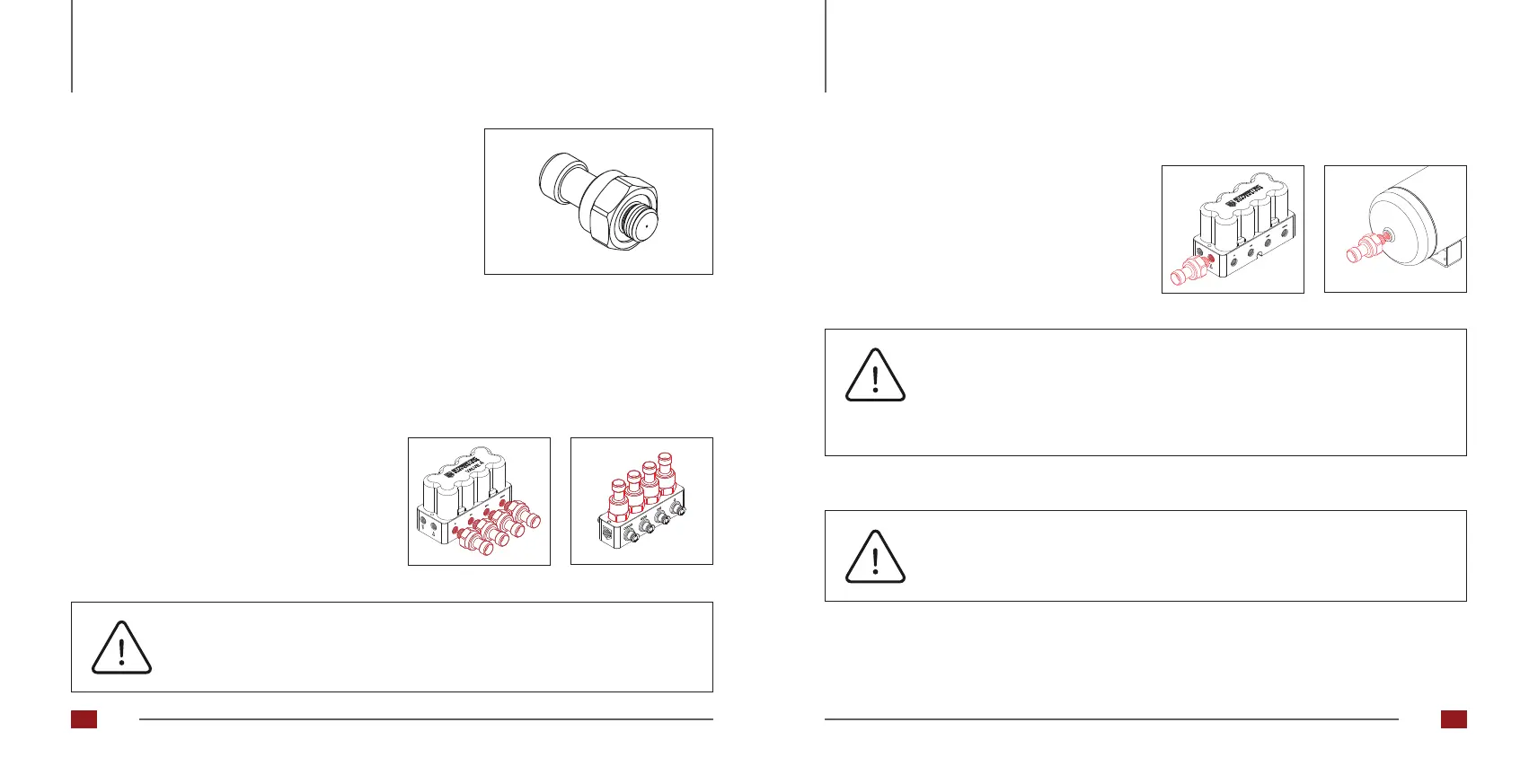

Abb. 14: Valve block Abb. 15: Sensor block
Abb. 13: Pressure sensors
The sensors for the air bellows can be integrated
into the system in various positions:
1. Mounting directly in the valve block (Fig. 14)
2. ounting in the optional pressure sensor block
(Fig. 15))
3. Mounting in the supply line to the air bellows
withoptionalT-ttings.
The sensor for the tank pressure can also be mounted in various ways:
1. Mounting directly in the side connection of
the valve block (Fig. 16)
2. Mounting directly to the air tank (Fig. 17) )
Abb. 16: Valve block Abb. 17: Air tank
When mounting the sensor on the tank, make sure that the pressure sensor is
installed in the upper area of the tank. Also make sure that the electrical connection
on the pressure sensor does not point downwards (Fig. 5). Otherwise, the sensor
may be damaged by condensation water settling in the tank.
3. hidden mounting on a hose leading away from the air tank or valve block.
Mounting on a hose leading away from the air tank or valve block is not
recommended and should only be done in exceptional cases.
