STREETEC autoleveling - Valve4

valve4 valve4
1. Decide in which direction you want to lead
the cable out of the valve block. By removing
the base plate (Fig. 4), the cable can be
positioned accordingly (Fig. 5) and xed in
place.

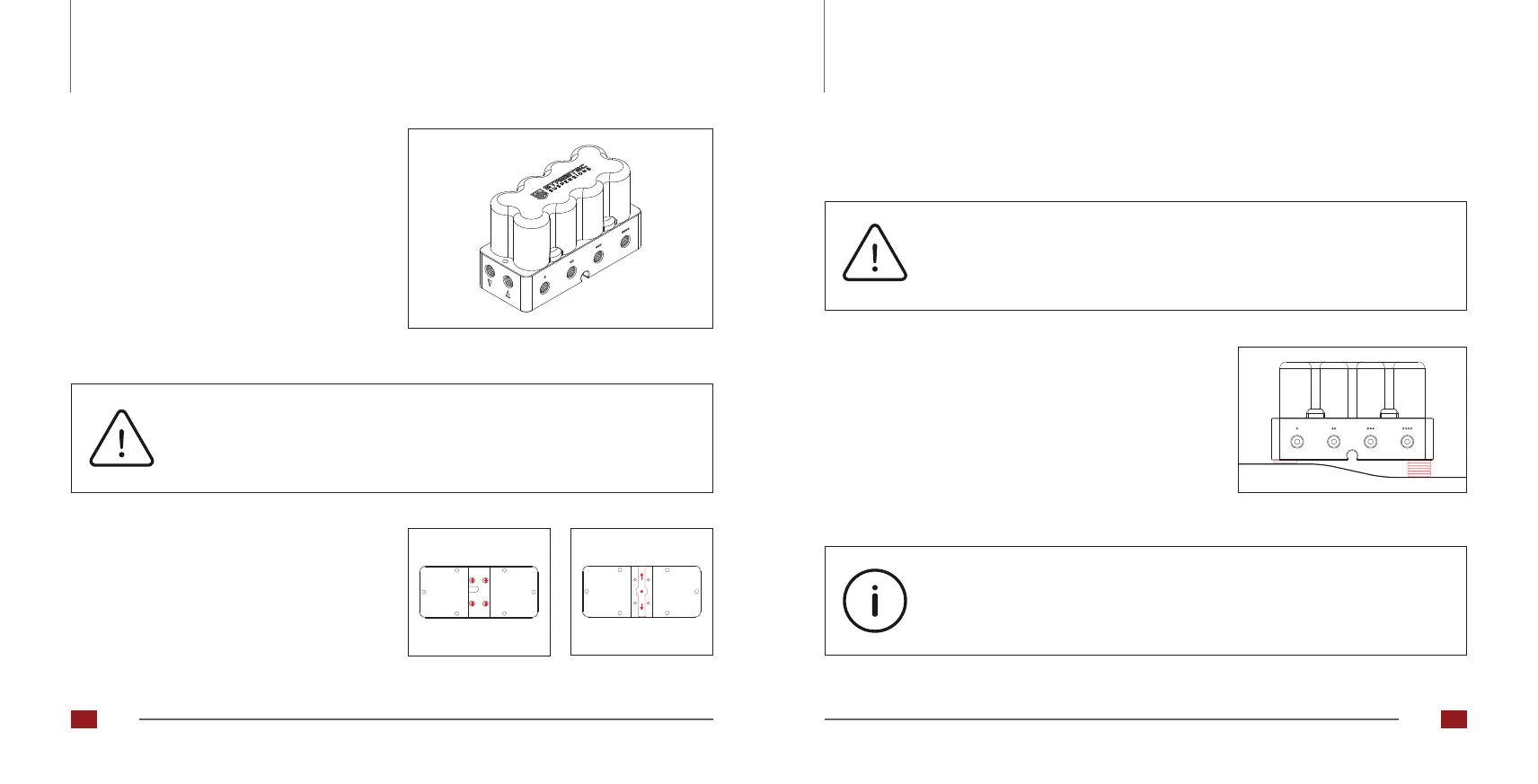

The STREETEC valve4 valve block (Fig. 3)
has been designed for clean installation and
maximum reliability.
The valve4 can ll and vent 4 compressed air
circuits and is equipped with G 1/4“ connections.
The valve4 is designed for maximum ow,
pressures up to 14 bar and millions of switching
cycles. Everything is integrated in one compact
unit. With an overall size of approx. 125 x
55 x 80 mm, the valve block is ideal for all air
suspensions.
The proven mounting of the valve4 valve block is installation inside the vehicle. If
installation outside the passenger compartment is desired, the installation location
should be selected so that the valve4 is protected from splash water and moisture.
Abb. 4: Base plate
Do not mount the valve4 overhead! Proper mounting of the valve block prevents
water from settling in frost-sensitive areas. In case of incorrect mounting, the proper
function of the STREETEC autoleveling cannot be guaranteed.
Inthescopeofdeliveryyouwillndadrillingtemplateforeasypositioningand
mounting of the valve4 valve block!
Abb. 5: Cable routing
2. Position the valve4 at the desired installation location. Make sure that the valve4 valve block can
besecurelyxedattheselectedlocation.
Abb. 6: Compensation mounting surface
3. Mount the valve block using the mounting kit provided. If
themountingsurfaceisnotat,addshimsoraspacerto
level the surface (Fig. 6). In this case, additional mounting
material may need to be purchased.
Abb. 3: STREETEC valve4
