3.4.2
Positions of the machine
CAUTION! Danger of injury!
Danger of crushing fingers and needle through stitching as
well as pulling in of parts of clothing.
Keep fingers and hands away from moving parts when
setting the position generator and checking the positions
with switched-on machine.
General:
Stop motors require a position generator, which takes the mechanical setting of
the machine from the main screw and transmits this to the control of the motor.
(Fig. 2)
The correct position of the position generator to the flange is marked with a
spot of paint.
To adjust or to remove, release the two clamping screws (2), Fig. 2. tighten
these firmly prior to commissioning.
All Machines:
The machine requires two needle positions and, depending on the sewing
drive, possibly also a reference position.

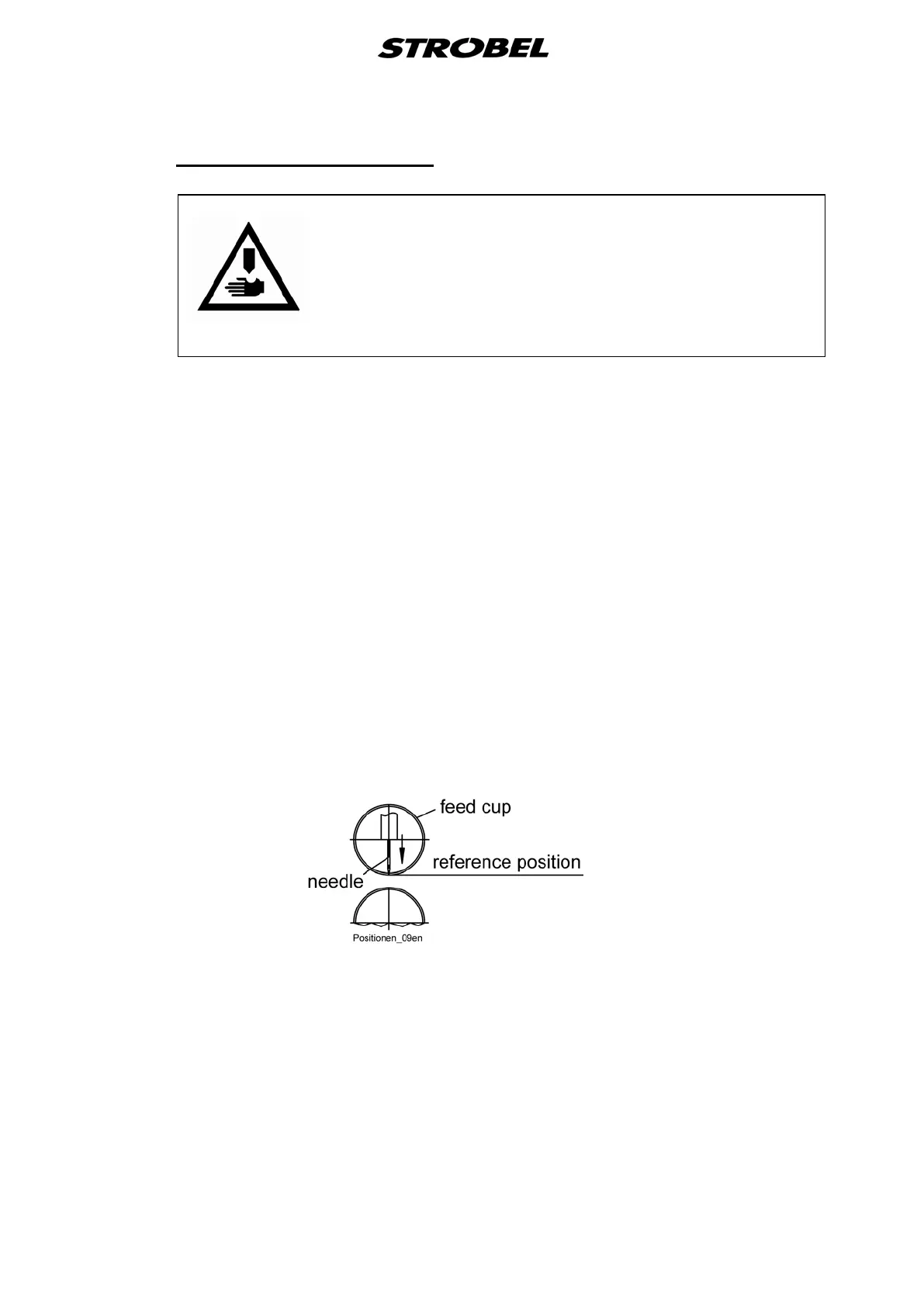

Reference position (if required, i.e. sewing drive DC1500-ST220A (Fig. 3)):
The reference position must be set in such a way, that the point of the
needle in the direction of the insertion stitch closes with the outer table
edge.
Fig. 3
