Strobel 141-40 - Threading and Thread Course (Fig. 1 and Fig. 8)

16 BA_141-30-40_A6-7_140416_en
4.3 Threading and thread course (Fig. 1 and Fig. 8)
ATTENTION!
Switch off machine electrically and confirm that the
machine is really in standstill position by operating the
treadle for the motor control before changing the needle.
Otherwise danger of finger bruises and needle
throughstitches.
After putting the bobbin on the supporting bolt of the reel stand, the thread is
guided through the eye of thread guiding arm. (Fig. 1)
Further pass it through thread guide 184.0078 (depending on thread and
material through 1 to 3 holes) and thread tension discs 184.0049 to thread
guide 184.0161 and through thread eye 184.0125.

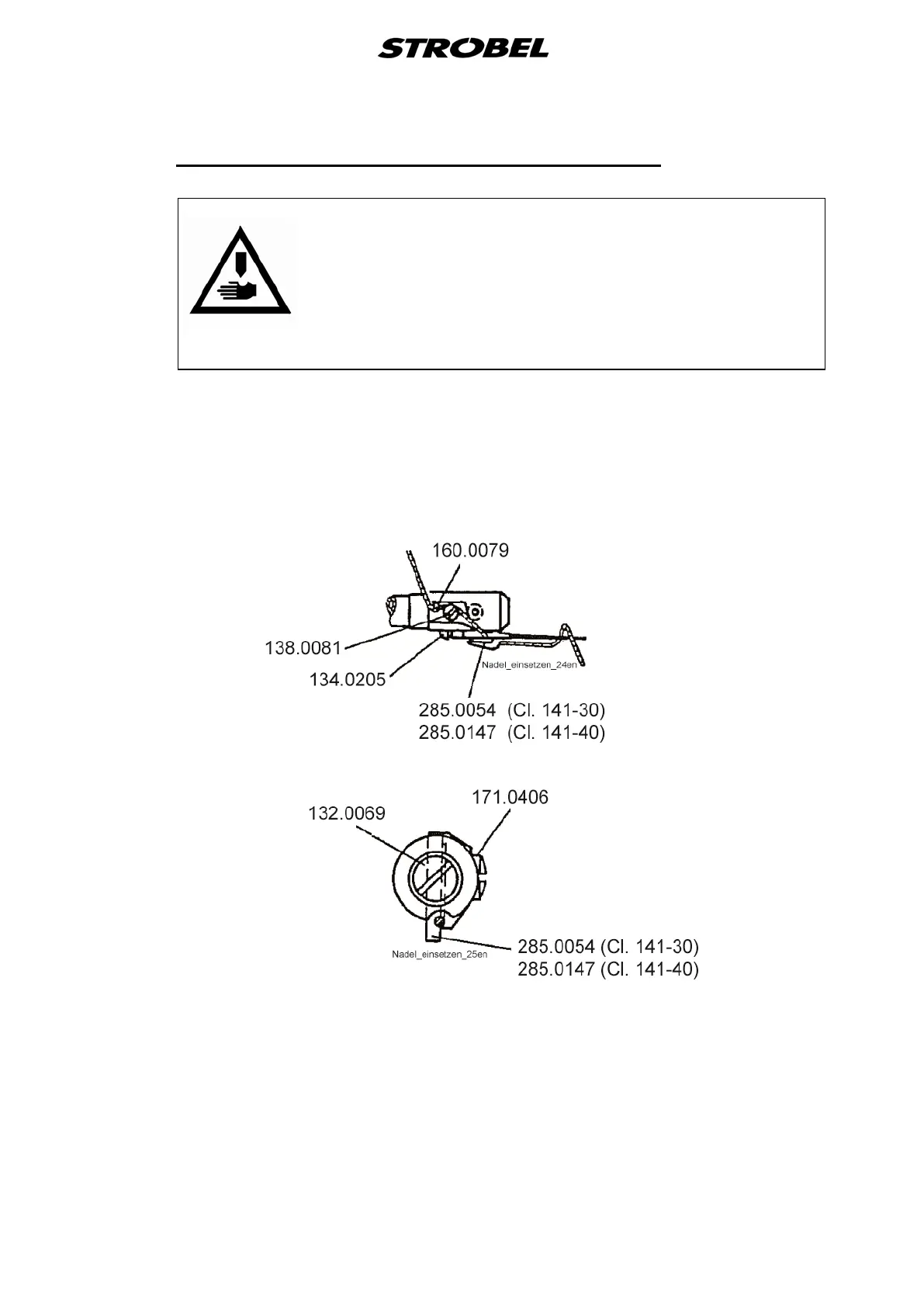

Fig. 8
