Strobel 141-40 - Adjustment of Material Guide

18 BA_141-30-40_A6-7_140416_en
4.6
Class 141-40
Adjustment of material guide
This machines are used for finest stranding operations.
(see point “2.3 Range of application and intended use”)
Attention!
Switch off machine electrically and confirm that the
machine is really in standstill position by operating the
treadle for the motor control.
Otherwise danger of finger bruises and needle
throughstitches.
As already mentioned, a height limit stop can be attached (see feed cup chart)
which, depending on the material to be sewn, can be set to the desired height.

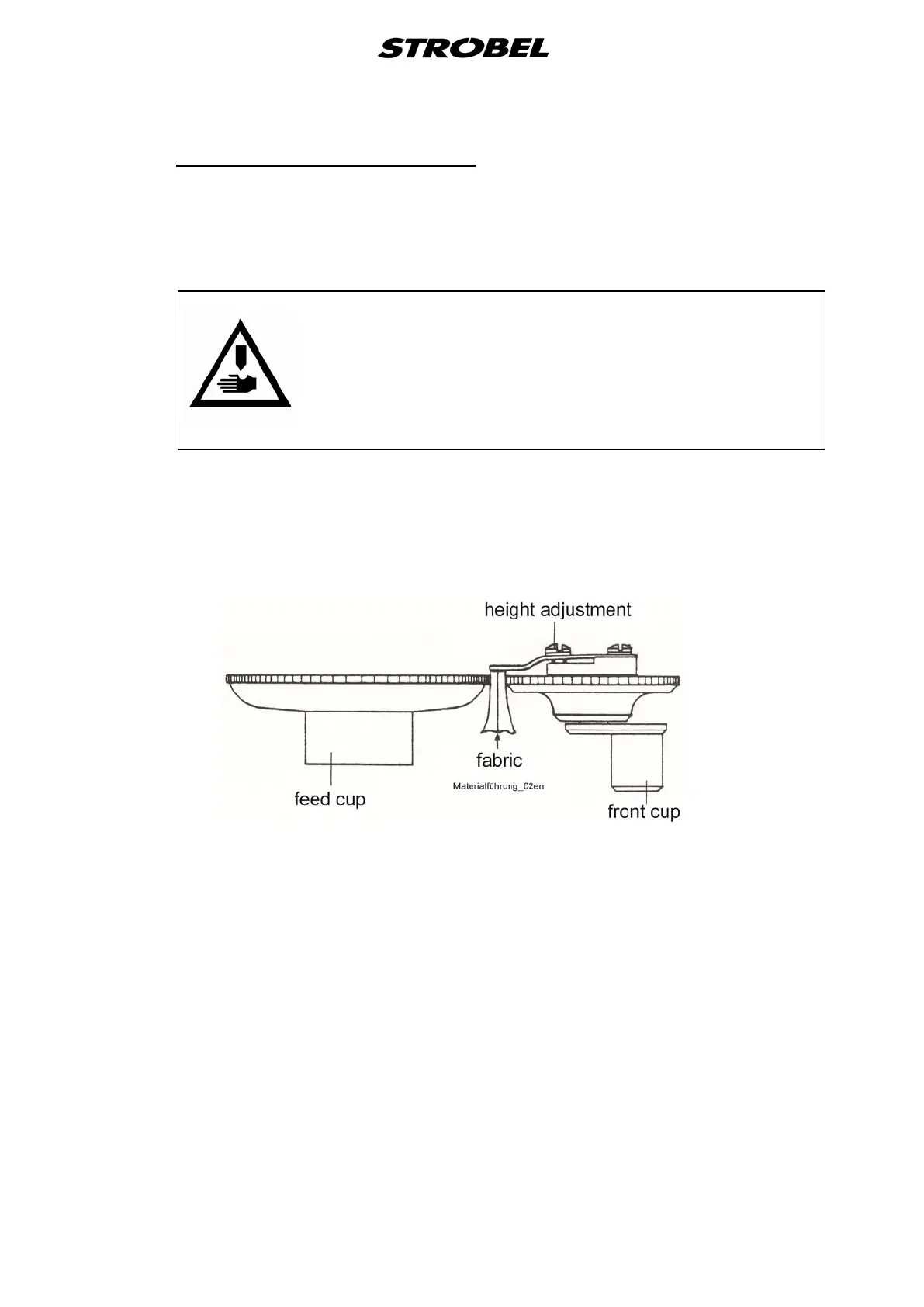

It is important that the looper passes the material guide without striking it. (Fig.
10)
Fig. 10
