Strobel 141-40 - First Lubrication (Fig. 6 and Fig. 7)

13 BA_141-30-40_A6-7_140416_en
3.5
Remove outer and inner machine cover and pour in original STROBEL oil
supplied with the machine from above.
To take off the inner cover first pull out the small oil pipe in the oil rising pipe of
the pump.
The soecial STROBEL oil (viscositiy 46 c St) supplied with the machine should
always be used.
First lubrication (Fig. 6 and Fig. 7)
The required oil quantity is 0,5 liter. It is recommended to change the oil after
approx. six month operation.
The oiling points are automatically lubricated, therefore no maintenance
required.

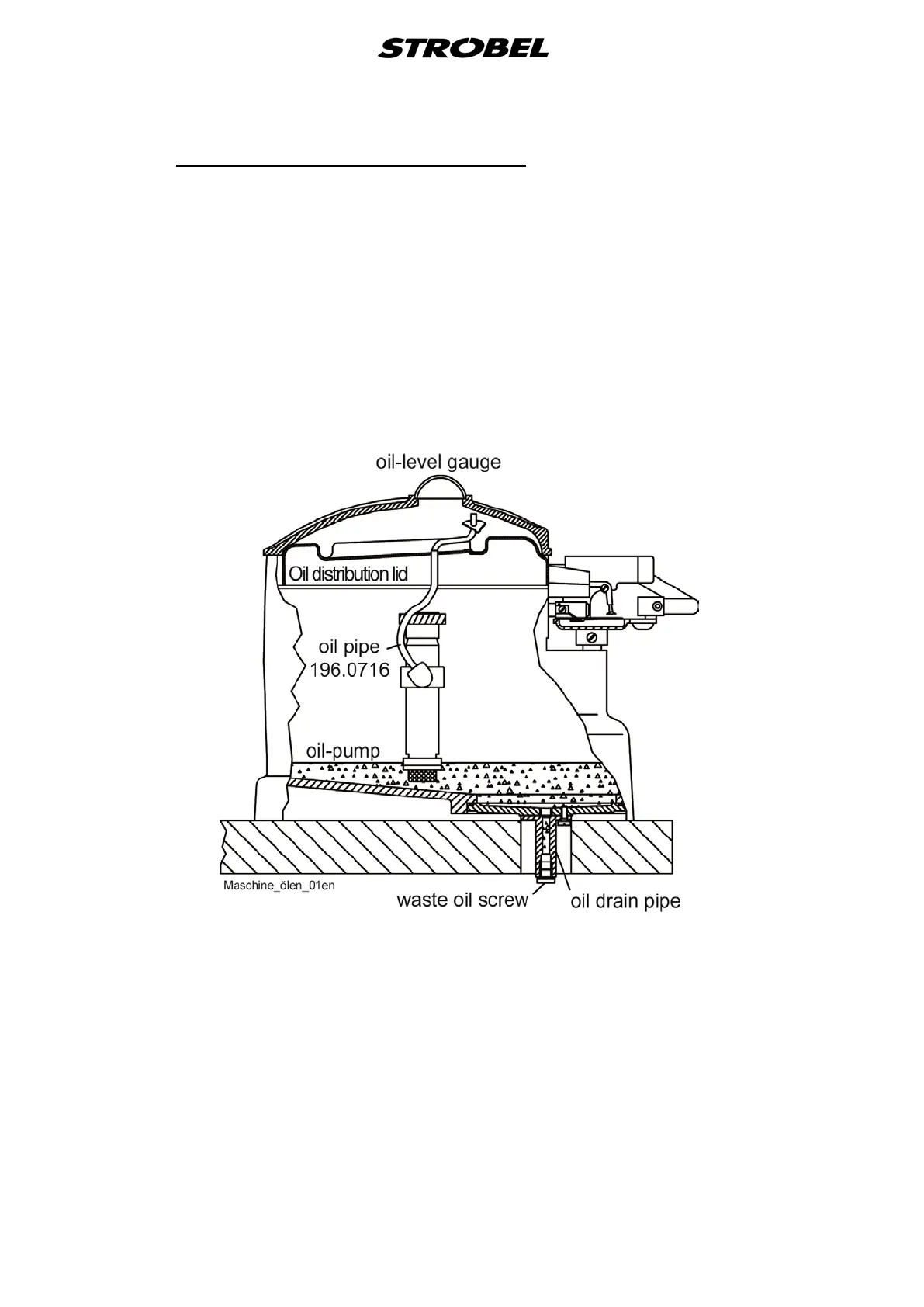

Fig. 6
