Strobel 310D-R - Exchanging the Needle Slide Plate (Fig. 1)

12 MA_310D-R_3100D-R_A16-3_181015_en

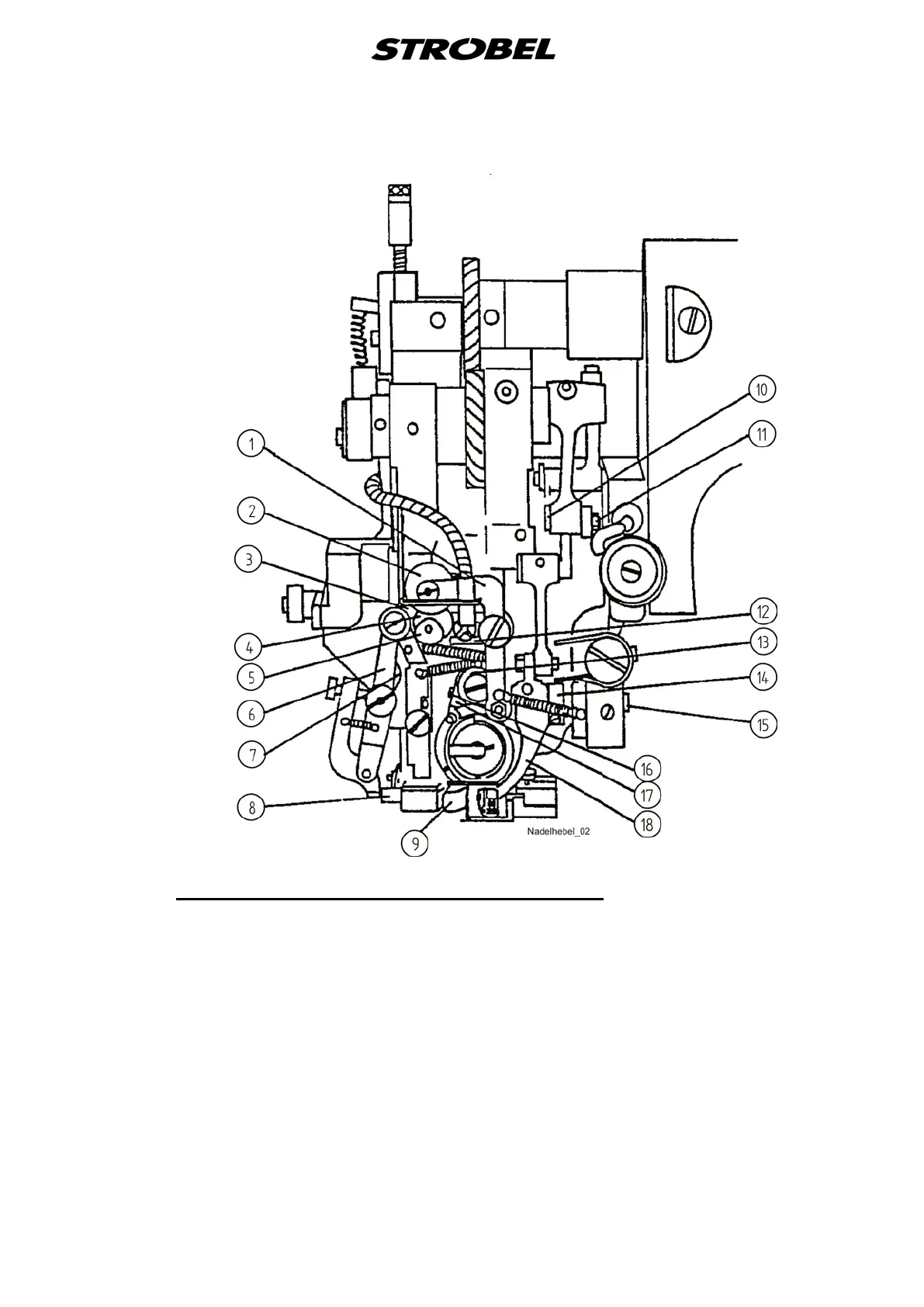

Fig. 2
3.1.5
The needle slide plate is mounted at the underside of the stitch plate. It can be
removed by releasing the cheese-head screw (2).
Exchanging the needle slide plate (Fig. 1)
