Spot tack
Attention!
Switch off machine electrically!
Attention!
Danger of finger bruises in the area of pneumatically
operated parts.
3.11.1
Sewing drive instructions.
General
Screw (1) and hexagonal nut (2) are used to set lever (3) close.
Bolt (4) blocks or releases the lever (3). When the bolt released the lever, the
machine can tack.
The bolt should move easily by the pneumatic cylinder in the bore hole of the
flange (5).

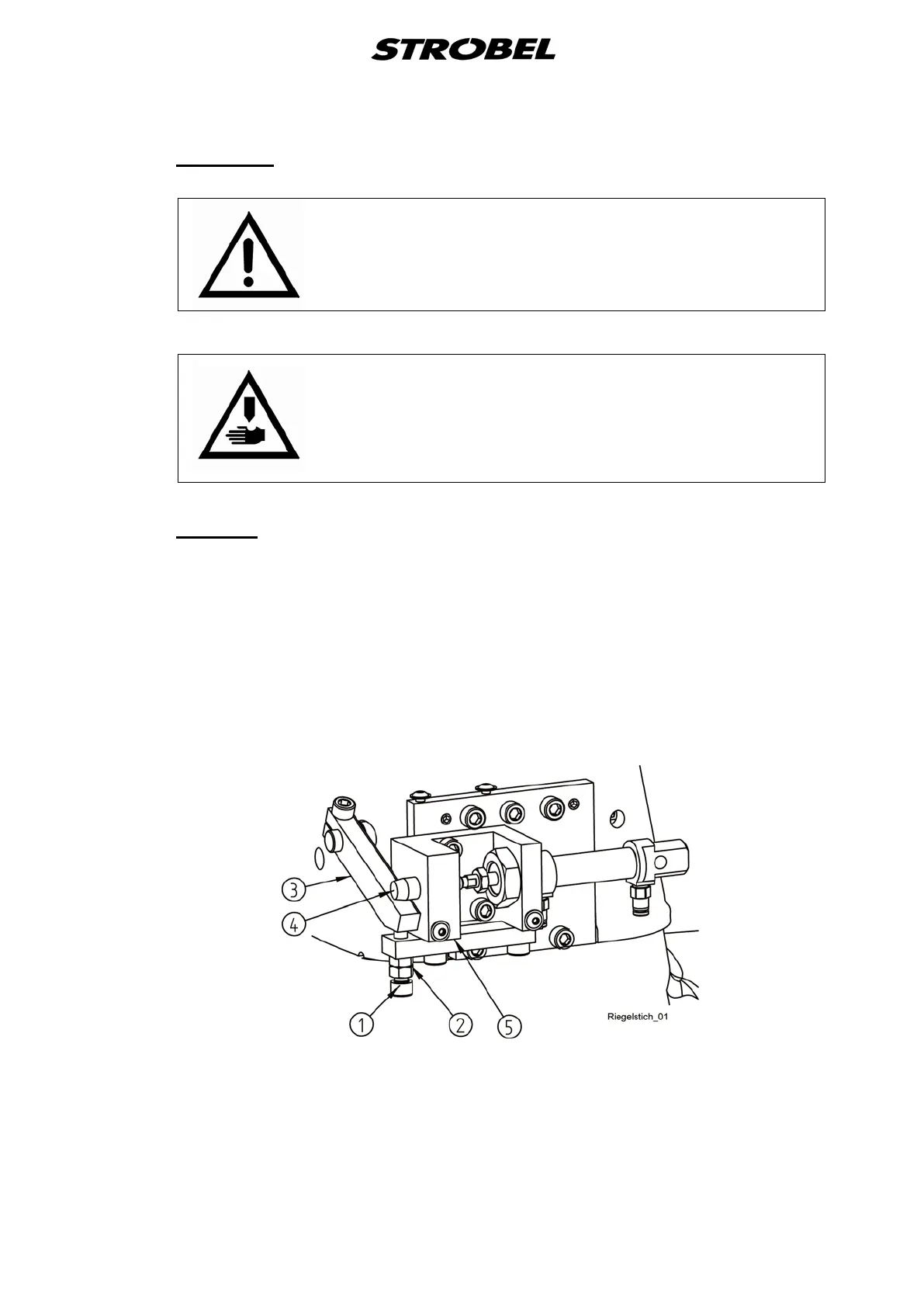

Fig. 15
