Strobel 310D-R - Sewing Material Handling

29 MA_310D-R_3100D-R_A16-3_181015_en

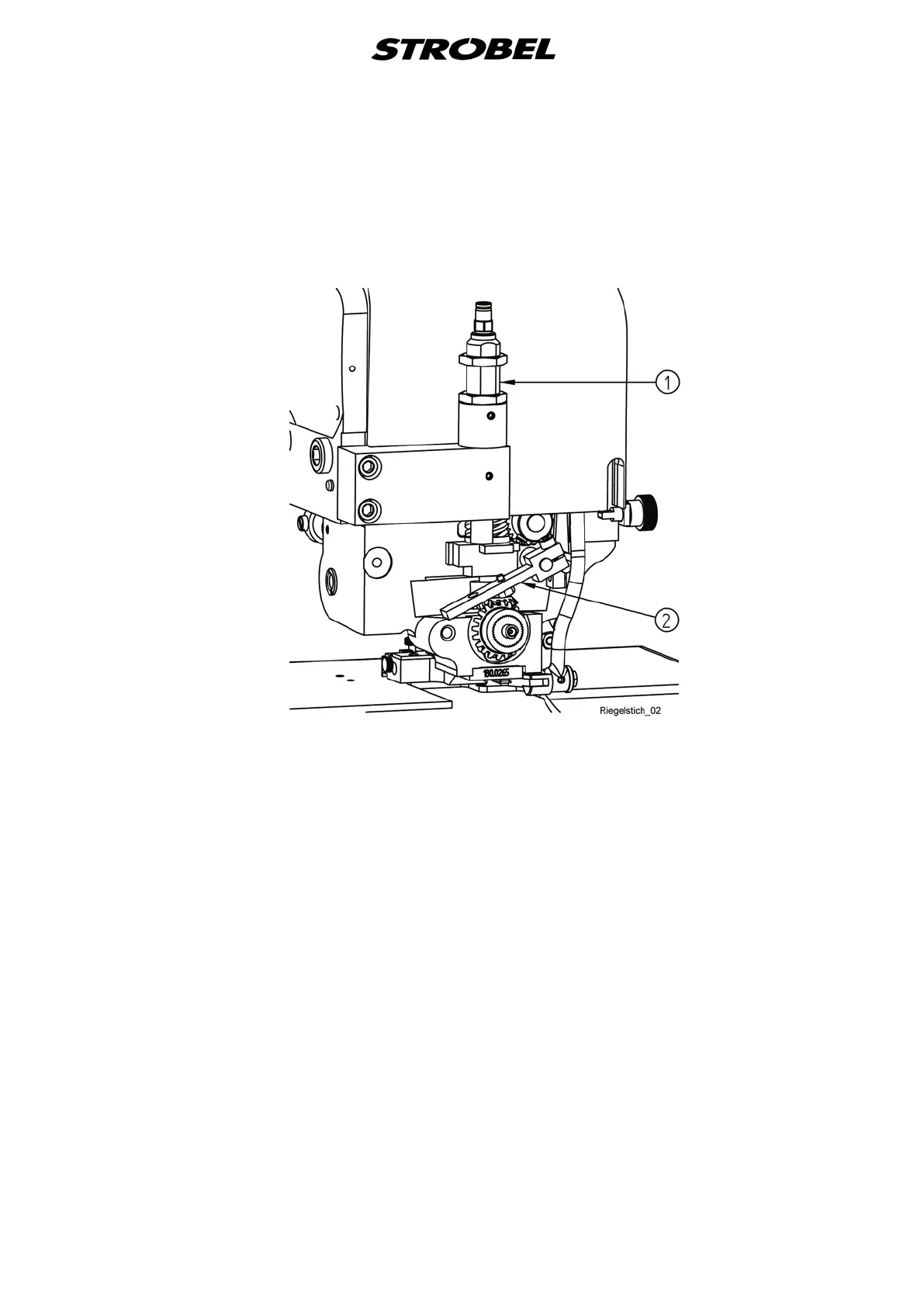

The pneumatic cylinder (1) is activated during the point tack function and
pushes the side transport away by lever (2).
The side transport needs to be set so that it does not contact the material
during the point tack.
Fig. 16
